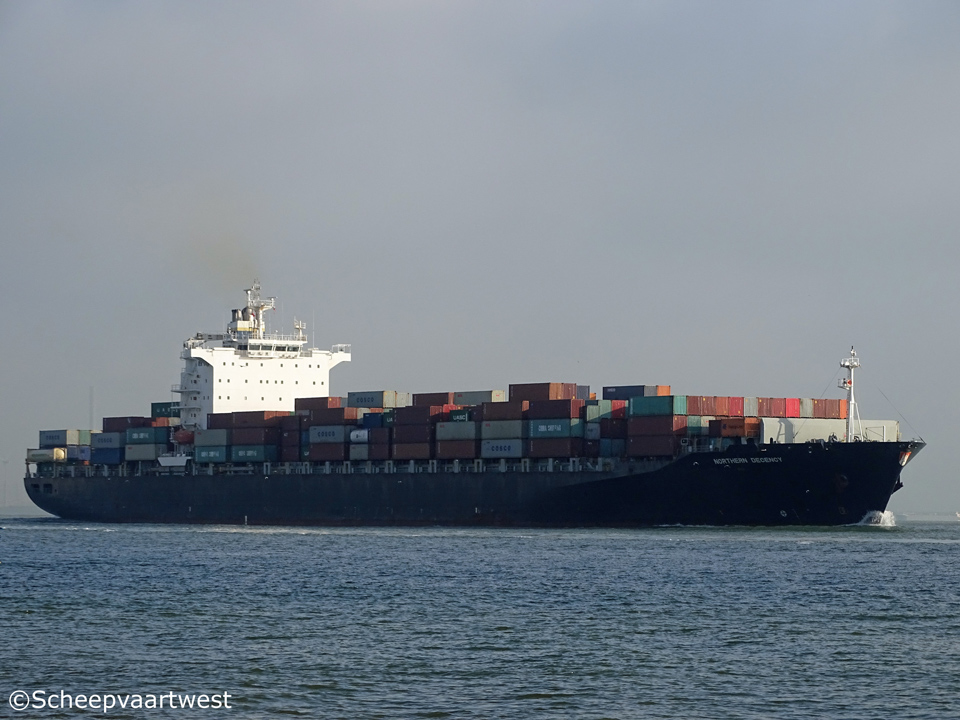

Northern Decency - IMO 9253296

Westerschelde 01 December 2017

Name

NORTHERN DECENCY

Previous names

Launch as: 2003 Northern Decency

03.2003 - 2006 Potomac Bridge

2006 - 2016 MSC Vienna

Type

Cellular containership

IMO-number

9253296

Call sign

A8CI9

Flag

Liberia

Port of registry

Monrovia

GT

41.078

DWT

Summer: 48.078 t

NT

23.997 t

Number of 20ft containers

3.607

Container capacity 14t

2.450

Reefer capacity

600

Length

260,13 m overall

244,55 m between perpendiculars

Breadth

32,0 m extreme

Draught

12,00 m

Forecastle

237,42 m

Poop

7,40 m

Freeboard

2.679 mm

Depth

14,66 m

Speed

Max.: 23,4 knots

Built

2003

Keel laid

26.11.2002

Launch date

22.02.2003

Date of completion

11.04.2003

Builder

Hyundai Heavy Ind. Co., Ltd.
Ulsan
South Korea

Yard number

1450

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN B&W 7K90MC-C - 2 stroke 7 cylinder 900 x 2.300 mm combustion engine 31.990 kW at 104 rpm

Built: 2002

Manufacturer: Hyundai Heavy Ind. Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 104 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated- 7,85 bar

Heating surface 35,0 m²
Heating surface 710,0 m²

Built: 2002

Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory)

Electric installations

1x Plant 440/220 V - 1.975 kVA
1x Plant 440/220 V - 1.975 kVA
1x Plant 440/220 V - 1.975 kVA
1x Plant 440/220 V - 1.975 kVA
1x Plant 440 V - 200 kVA
1x Plant 24 V - 146 Ah
1x Plant 24 V - 200 Ah
1x Plant 24 V - 300 Ah

Generators

4x MAN 8L28/32 H main diesel generatorsets each 1.975 kVA

Emergency generator

1x MAN D2866TE diesel generatorset 200 kVA

Compressed air receivers

2x Receivers each 12.000 litres - 30 bar
1x Receiver 250 litres - 30 bar
4x Receivers each 60 litres - 9,7 bar
1x Receiver 20 litres - 9,7 bar
1x Receiver 250 litres, 7,7 bar

Bow thruster

1x Transverse thruster KAWASAKI 1.200 kW, forward

Tank capacities

Ballast: 13.513,5 m³

Fuel oil: 4.727 m³

Anchor equipment

3x Anchors weight each 11.700 kg

Length: 687,50 m

Diameter: 84 mm

Cargo gear

Gearless

Manager

Norddeutsche Reederei H. Schuldt GmbH & Co. KG
Rolandsbrücke 4
20095 Hamburg
Germany

Registered owner

Beteiligungs-KG MS "NORTHERN DECENCY" Schiffahrtsges. mbH & Co.

Latest data adjustment

23 December 2017
