Westerschelde 30 April 2015 |
 |
| Westerschelde 23/11/15 |
|
Name |

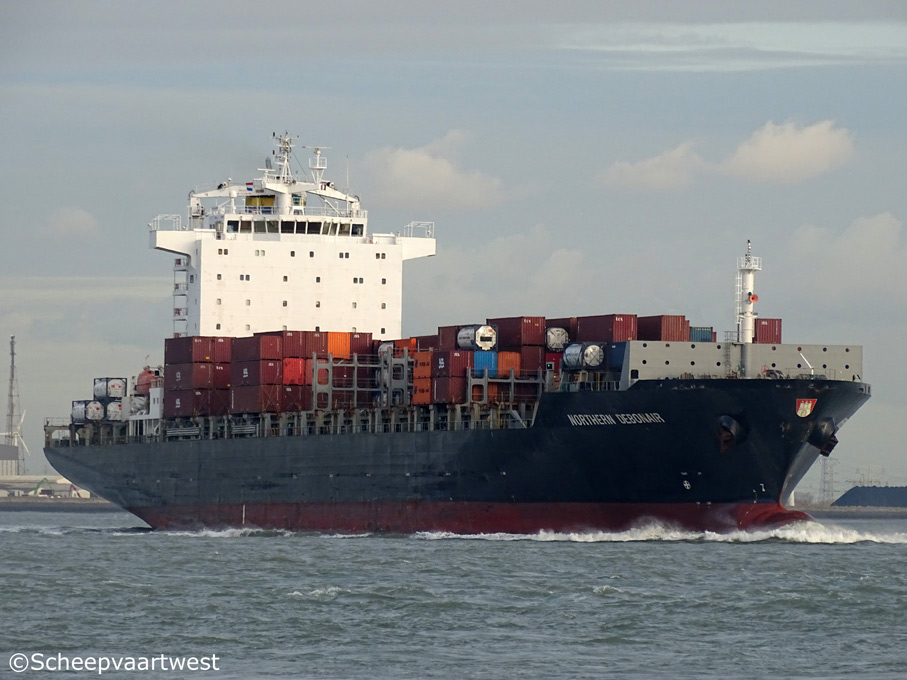

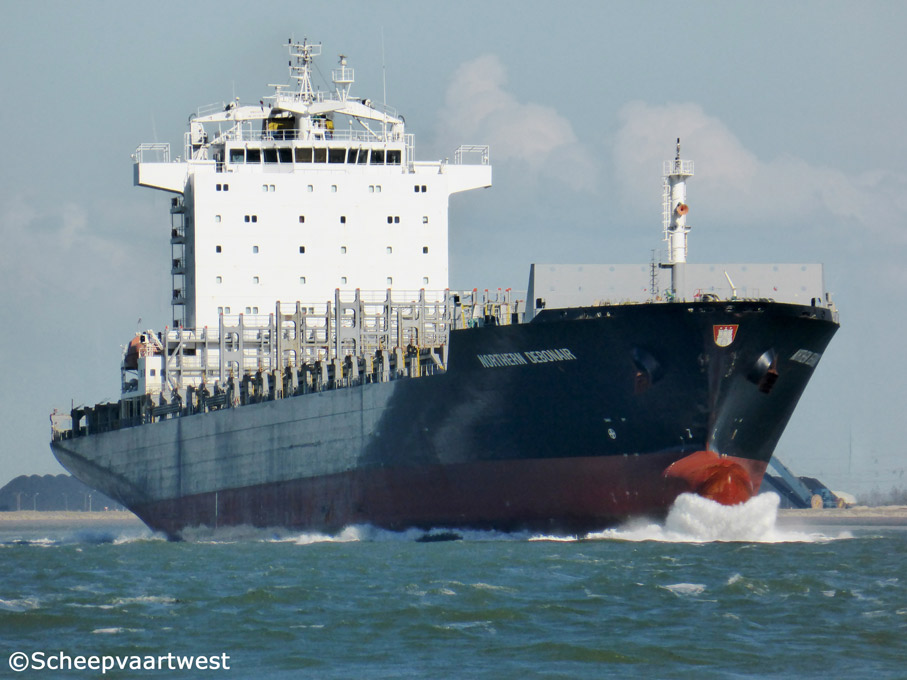

NORTHERN DEBONAIR |
|
Previous names |
2007 - 05.2011 CSAV Rahue 05.2011 - 02.2012 NYK Lyttelton |
|
Type |
Cellular containership |
|
IMO-number |
9353228 |
|
Call sign |
A8MH2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35975 t |
|
DWT |
Summer: 42.183 t |
|
NT |
15.938 t |
|
Number of 20ft containers |
3.534 |
|
Container capacity 14t |
2.413 |
|
Reefer capacity |
500 |
|
Length |
231,00 m overall 216,54 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
12,00 m |
|
Forecastle |
13,03 m |
|
Depth |
18,80 m moulded |
|
Speed |
Max.: 23,4 knots Service: 22,2 knots |
|
Built |
2007 |
|
Keel laid |
28.04.2007 |
|
Launch date |
28.06.2007 |
|
Date of completion |
18.10.2007 |
|
Builder |
Shanghai Shipyard & Chengxi Shipyard Co., Ltd. |
|
Yard number |
SS1122 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7K90MC-C MK VI - 2 stroke 7 cylinder 900 x 2.300 mm diesel engine 31.920 kW at 104,0 rpm Year of manufacture: 2007 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 35,4 m² 1x Steam boiler, exhaus .gas heated - 9,0 bar Heating surface: 628 m² Year of manufacture: 2007 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
4x Plants each 450/ 230 V - 1.645 kVA 1x Plant 450 V - 212,5 kVA 4x Plants each 24 V - 14 Ah 4x Plants each 24 V - 24 Ah 2x Plants each 24 V - 78 Ah 2x Plants each 24 V - 150 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
4x HiMSEN 7H21/32 main diesel generatorsets each 1.645 kVA - 1.316 kW |
|
Emergency generator |
1x Diesel generatorset 212,5 kVA |
|
Batteries |
12x Batteries for automation each 300 Ah 2x Batteries for UPS radio each 150 Ah 2x Batteries for start emergency engine each 78 Ah 4x Batteries for automation each 24 Ah 4x Batteries for diesel control each 14 Ah |
|
Compressed air receivers |
2x Receivers each 14.000 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 2x Receivers each 100 litres - 11,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Fuel capacity |
1.859 m³ |
|
Anchor equipment |
3x Anchors weight each 11.100 kg Chain Length: 687,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
Norddeutsche Reederei H. Schuldt GmbH & Co. KG |
|
Registered owner |
Northern Debonair Shipping Corp. |
|
Latest data adjustment |
01 June 2015 |
