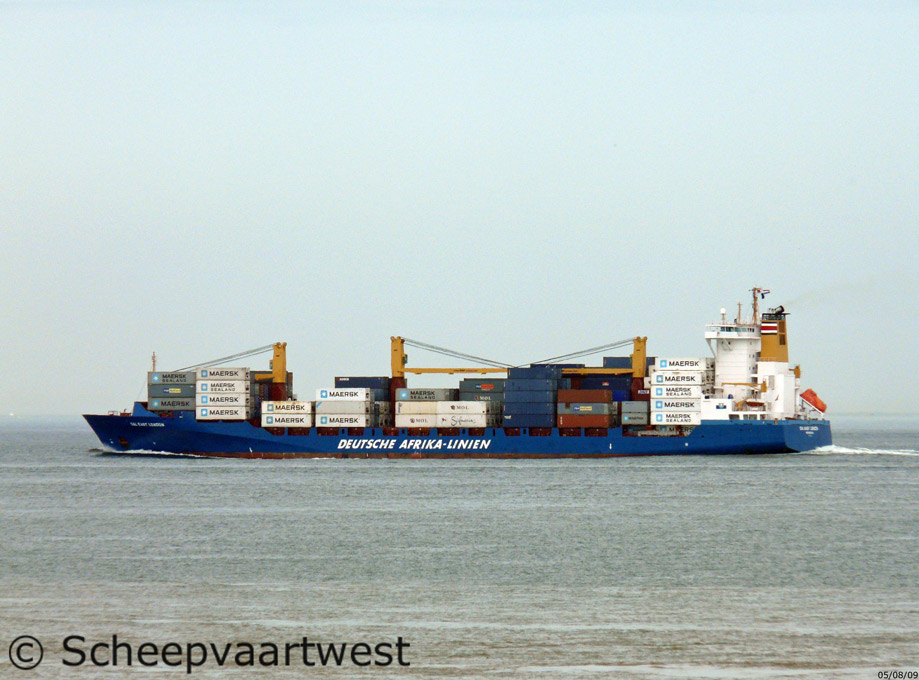

Dal East London 05
Breskens 05 August 2009



Name

DAL EAST LONDON

Previous names

08.05.2006 Helle Ritscher

Type

Cellular gear containership

IMO-number

9333371

Call sign

A8IS6

Flag

Liberia

Previous flags

08.05.2006 Liberia

10.05.2006 Germany

Port of registry

Monrovia

GT

17.360 t

DWT

Summer: 22.254 t

NT

9.038 t

Number of 20ft containers

1.856

Reefer capacity

385

Length

178,57 m overall

167,50 m between perpendiculars

168,65 m registered

Breadth

27,60 m over all

Draught

10,858 m

Forecastle

42,53 m

Poop

15,52 m

Freeboard

3.720 mm

Depth

14,58 m moulded

Speed

21,8 knots

Line

Deutsche Afrika-Linien

Built

2006

Keel laid

25.11.2004

Launch date

13.12.2005

Date of completion

19.05.2006

Builder casco

Daewoo Mangalia Heavy Industries
Mangalia
Romania

Builder completion

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1271

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MAN-B&W 6L70ME-C - 2 stroke single acting 6 cylinder 700 x 2.360 mm diesel engine - 16.980 kW

Year of manufacture: 2005

Manufacturer: IZAR Construcciones Navales, S.A. Astillero Sestao
48910 Bilbao
Spain

Propeller

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar
Heating surface: 20,0 m²

1x Exhaust gas heated - 9,0 bar
Heating surface: 495,0 m²

Year of manufacturer: 2006

Manufacturer: Aalborg Industries A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x 450/230 V - 5.140 kVA

1x 450 V - 220 kVA

1x 24 V - 310 Ah

Generators

4x Yanmar 6N21AL-EV main diesel generatorsets each 1.285 kVA / 1.028 kW

Emergency generator

1x Diesel generatorset 220 kVA / 176 kW

Batteries

2x Batteries for Start emergency engine each 155 Ah

Compressed air receivers

2x Receivers each 7.000 litres - 30,0 bar

1x Receiver 150 litres - 30,0 bar

Bow thruster

1x Transverse thruster - 900 kW, forward

Stern thruster

1x Transverse thruster - 700 kW, aft

Anchor equipment

3x Anchors weight each 7.800 kg

Chain length: 632,50 m

Cargo gear

3x Cranes - SWL 45 t each

Manager

Transeste Schiffahrt GmbH
Hinter den Höfen 9
21635 Jork
Federal Republic of Germany

Operator

DAL - Deutsche Afrika-Linien GmbH & Co.
Palmaille 45
22767 Hamburg
Deutschland

Owner

Reederei MS "HELLE RITSCHER" GmbH & Co. KG
Esteburgring 21
21635 Jork
Federal Republic of Germany

Owner as completed

Helle Maritime Co Ltd.

Monrovia
Liberia
