| Westerschelde 15 August 2020 |
|
Name |

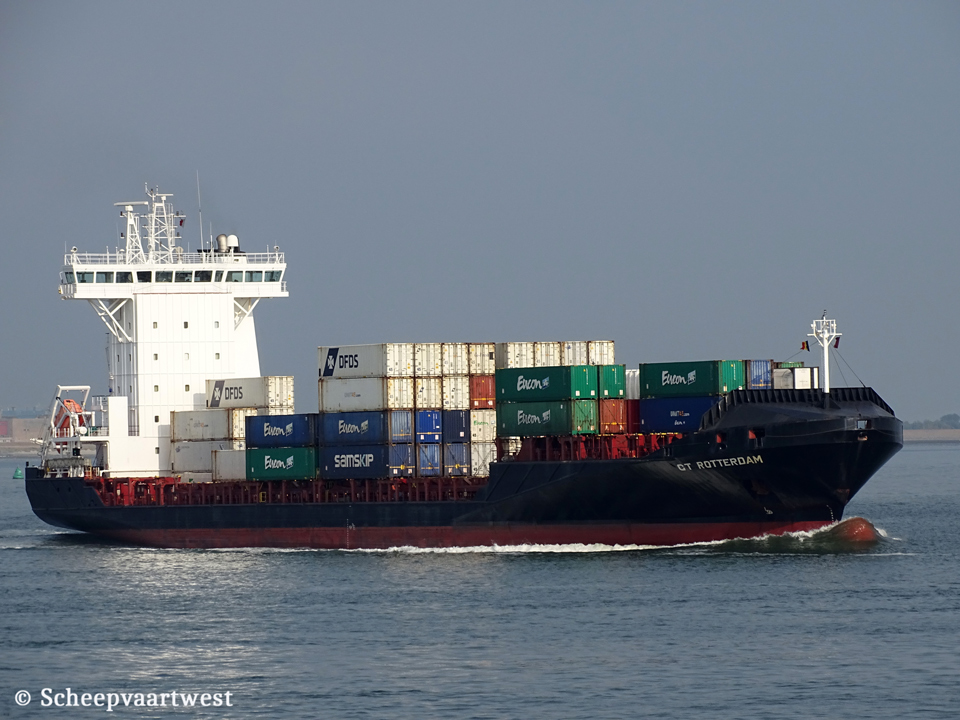

CT ROTTERDAM |
|
Previous names |
2009 build as: Tina Bolten 01/2009 - 10/2011 Ines Bolten 10/2011 - 2019 BG Rotterdam |
|
Type |
Gearless cellular container vessel |
|
IMO-number |
9395575 |
|
Previous classification |
RINA Services S.p.A. |
|
Call sign |
5BSX2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
Germany, Hamburg - Call sign: DGQS2 Portugal, Madeira - Call sign: CQHC |
|
GT |
8.273 t |
|
DWT |
Summer: 11.020 t |
|
NT |
4.002 t |
|
Number of 20ft containers |
In hold: 218 On deck: 756 Total: 974 |
|
Container capacity 14t |
575 |
|
Reefer capacity |
170 |
|
Length |
139,60 m overall 133,65 m between perpendiculars |
|
Breadth |
22,20 m |
|
Draught |
7,36 m |
|
Depth |
9,50 m moulded |
|
Speed |
18,1 knots loaded |
|
Built |
2009 |
|
Keel laid |
04/12/2008 |
|
Launch date |
03/04/2009 |
|
Date of completion |
02/07/2009 |
|
Builder |
Detlef Hegemann Rolandwerft GmbH & Co. KG Bremen Germany |
|
Yard number |
248 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M43C - 4 stroke single acting 9 cylinder 430 x 610 mm combustion engine Mcr 8.402 kW / 11.423 hp at 500 rpm Manufacturer: Caterpillar Motoren Rostock GmbH - Germany |
|
Propellers |
1x Fixed pitch propeller - aft at 170 rpm Builder: Fundilusa - Fundicoes Portuguesas Lda. |
|
Boilers |
1x Auxiliary boiler, composite Mission OC Builder: Alfa Laval Aalborg A/S |
|
Shaft generator |
1x 1.196 kW / 450 Volt |
|
Generators |
2x Caterpillar C18 main diesel generatorsets each 437 kW / 450 Volt |
|
Emergency generator |
1x Caterpillar C18 diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 1.000 kW / 1.360 bhp; forward |
|
Number of holds |
3 Hold 1: 28,91 x 16,06 x 10,76 m Hold 2: 29,61 x 18,70 x 10,76 m Hold 3: 29,61 x 18,70 x 10,76 m |
|
Number of hatches |
3 Hatch 1: 27,88 x 15,90 m Hatch 2: 28,86 x 18,70 m Hatch 3: 28,86 x 18,70 m |
|
Hatch type |
Steel hatch covers, folding type, hydraulically operated |
|
Tank capacities |
Ballast: 4.547 m³ Diesel oil: 160 m³ HFO: 800 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Cargo gear |
Gearless |
|
Crew size |
13 |
|
ISM & commercial manager |
USC Barnkrug GmbH & Co. KG Am Elbdeich 76 21706 Drochtersen Germany |
|
Registered owner |
Contarga Ltd. Care of USC Barnkrug GmbH & Co KG Am Elbdeich 76 21706 Drochtersen Germany |
|
Latest data adjustment |
13 February 2022 |
