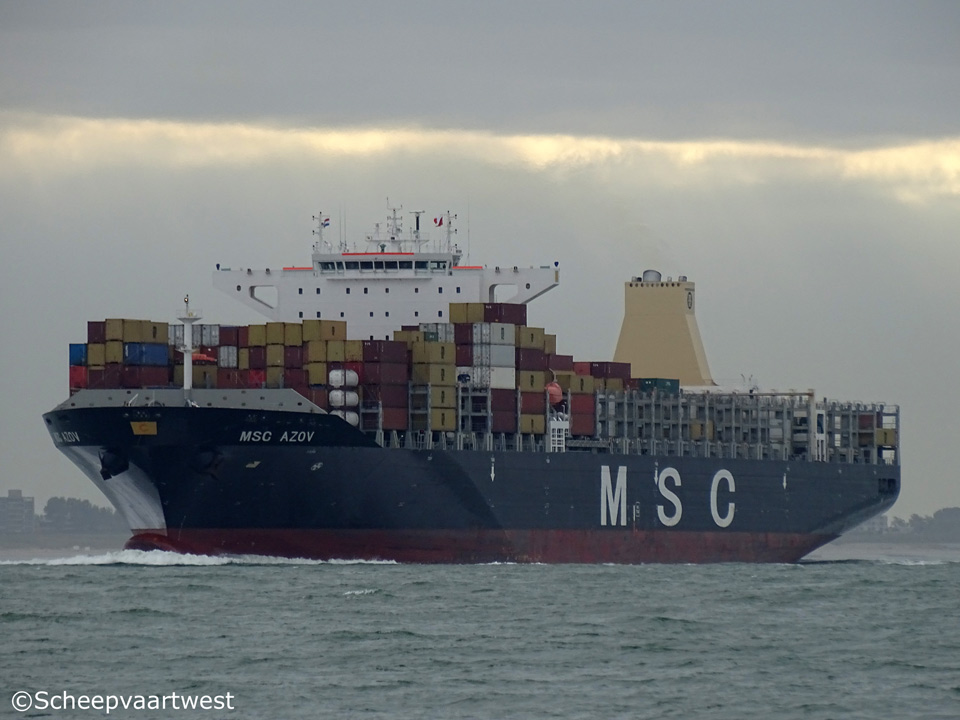

MSC Azov 01

Westerschelde 22 October 2015



Name

MSC AZOV

Type

Cellular containership

IMO-number

9605255

Call sign

9HA2457

Flag

Malta

Port of registry

Valletta

GT

94.402 t

DWT

Summer: 112.434 t

NT

52.968 t

Number of 20ft containers

9.403

Container capacity 14t

7.100

Reefer capacity

1.000

Length

299,89 m overall

283,23 m between perpendiculars

Breadth

48,33 m extreme

48,19 m moulded

Draught

14,50 m

Depth

24,80 m

Speed

Max.: 22,2 knots

Built

2014

Keel laid

17.12.2012

Launch date

14.07.2013

Date of completion

14.01.2014

Builder

Shanghai Jiangnan Changxing Heavy Industry Co., Ltd.
Shanghai
China

Yard number

H1068A

Hull material

Steel

Main engine

1x MAN-B&W/HHI 9S90ME-C9.2 - 2 stroke 9 cylinder diesel engine 52.229 kW

Builder: MAN Diesel & Turbo SE, Augsburg - Germany

Propellers

1x Fixed propeller

Boilers

Auxiliary boiler, oil/gas fired (Oil fired boiler)

Auxiliary boiler, exhaust gas heated (Exhaust gas economiser)

Generators

4x Daihatsu 8DC-32e main diesel generatorsets each 3.320 kW

Emergency generator

1x MAN D2866 LE 203 diesel generatorset

Bow thruster

3.000 kW

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Crew size

26

Manager

Costamare Shipping Co. S.A.
Piraeus
Greece

Operator

MSC - Mediterranean Shipping Company

Registered owner

Ample Pointer Ltd.
Athens
Greece

Latest data adjustment

21 July 2017
