Westerschelde 12 October 2018 |
|
Name |

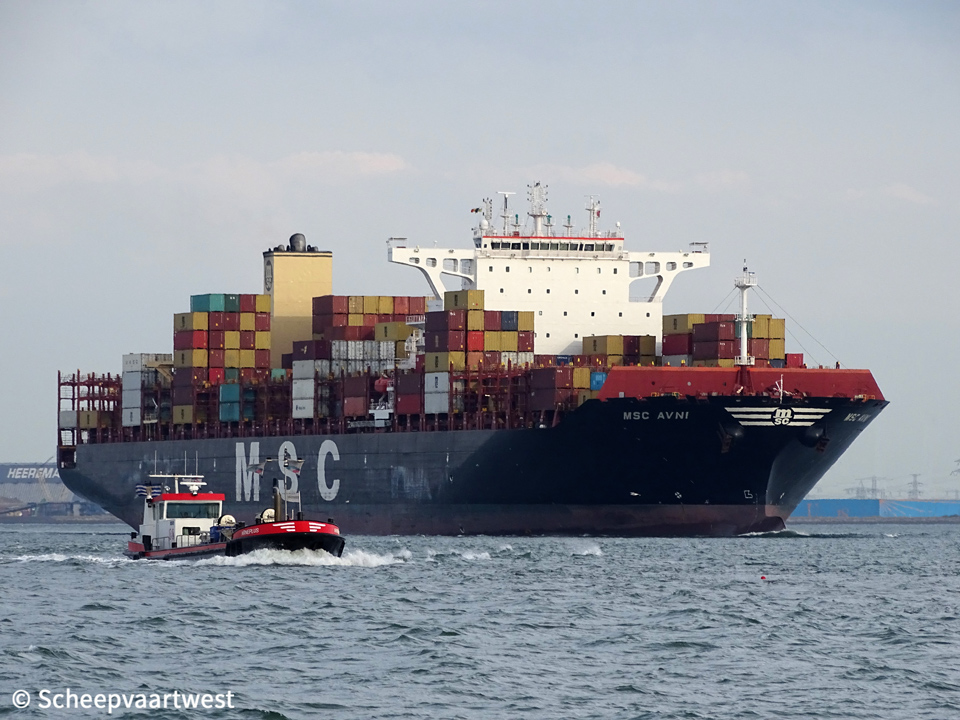

MSC AVNI |
|
Type |
Cellular containership |
|
IMO-number |
9756729 |
|
Call sign |
D5OA3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
102.492 t |
|
DWT |
120.500 t |
|
NT |
54.865 t |
|
Number of 20ft containers |
11.568 |
|
Container capacity 14t |
7.700 |
|
Reefer capacity |
700 |
|
Length |
314,31 m overall 300,85 m between perpendiculars |
|
Breadth |
48,84 m extreme 48,20 m moulded |
|
Draught |
Max: 14,60 m |
|
Depth |
24,80 m |
|
Speed |
Max: 23,5 knots |
|
Built |
2017 |
|
Keel laid |
10/11/2015 |
|
Launch date |
28/10/2016 |
|
Date of completion |
11/09/2017 |
|
Builder |
Jinhai Intelligent Manufacturing Co., Ltd. Zhoushan China |
|
Yard number |
J0233 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 9S90ME-C10 - 2 stroke single acting 9 cylinder 90 x 3.260 mm combustion engine 47.600 kW / 64.717 hp Builder: Doosan Engine Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
3x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x MAN-B&W 6L32/40 - 4 stroke 6 cylinder 320 x 400 mm combustion engine each 3.000 kW connected with generator each 2.900 ekW 2x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine each 4.500 kW connected with generator each 4.400 ekW |
|
Emergency generator |
1x MAN D2842LE201 diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 3.500 kW / 4.759 bhp, forward Manufacturer: Nakashima Propeller Co., Ltd. |
|
Tank capacities |
Ballast: 35.254,3 m³ |
|
Anchor equipment |
Length: 770,00 m Diameter: 114 mm |
|
Cargo gear |
Gearless |
|
Crew size |
31 |
|
Manager |
SinOceanic Shipping AS Haakon VII s gate 1 0161 Oslo Norway |
|
Operator |
MSC - MSC Shipmanagement Limited |
|
Registered owner |
Avenue 9 Holding Limited |
|
Latest data adjustment |
02 June 2020 |
