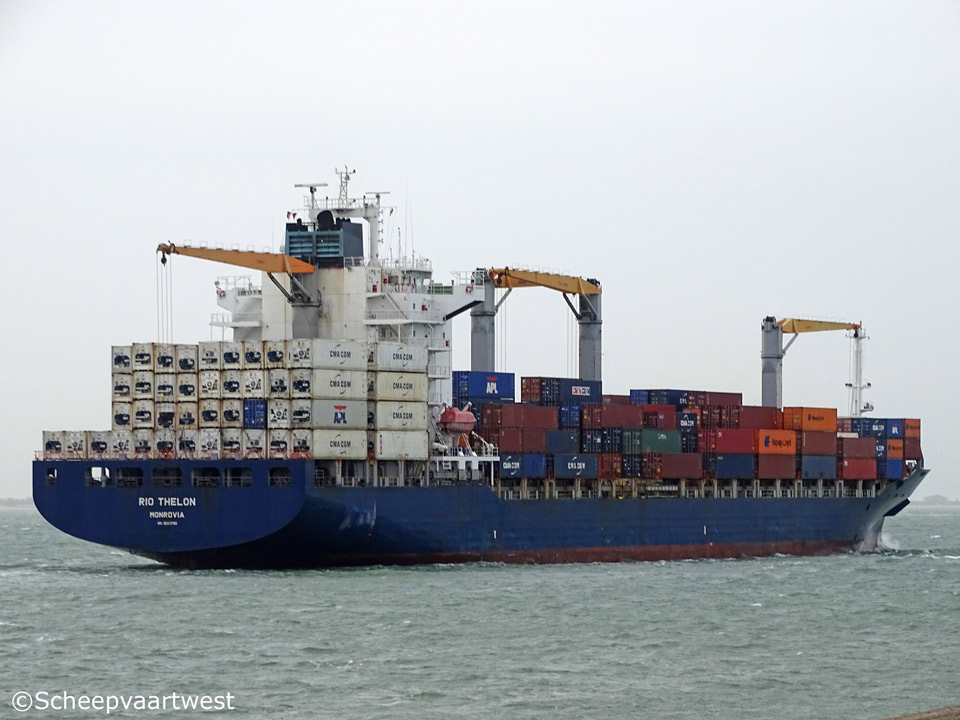

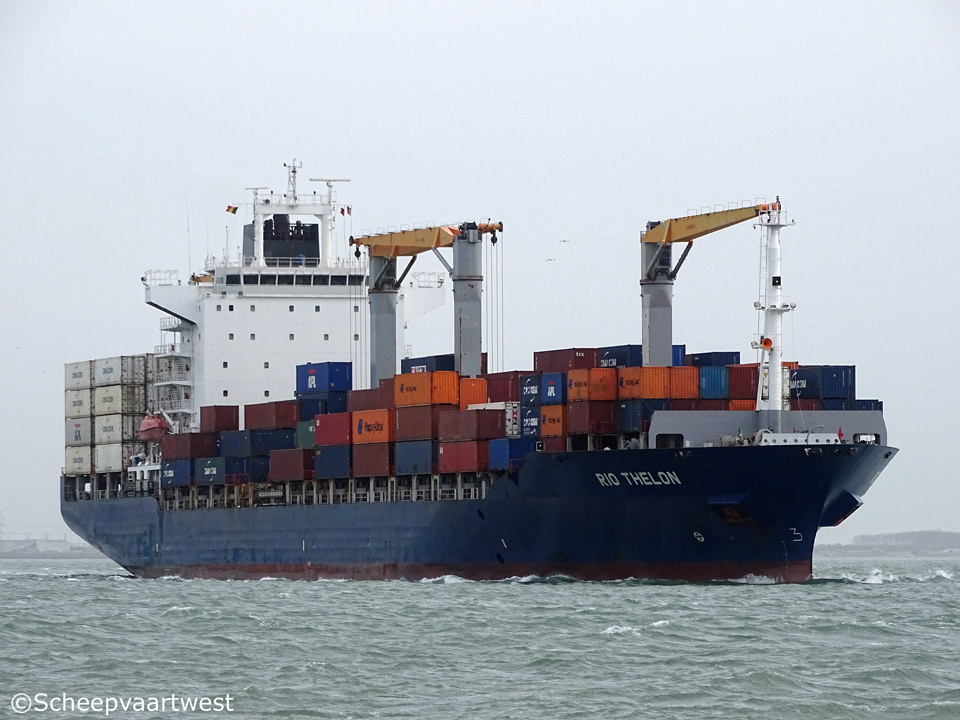

Westerschelde 24 December 2016 |
 |
 |
|

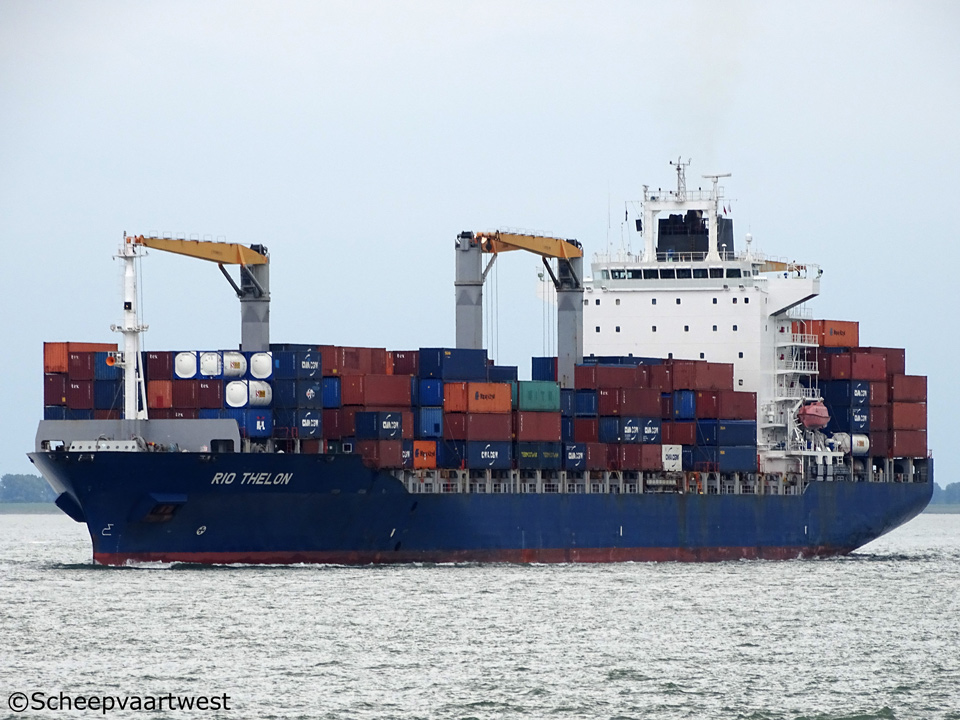

| Westerschelde 24/12/16 | Westerschelde 26/07/17 |
|
Name |
RIO THELON |
|
Previous names |
2004 built as: Rio Thelon 04.2004 - 11.2005 P&O Nedlloyd Maxima 11.2005 - 03.2012 Nedlloyd Maxima |
|
Type |
Cellular containership |
|
IMO-number |
9283708 |
|
Call sign |
A8JR6 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
26.833 t |
|
DWT |
Summer: 34.314 t |
|
NT |
12.743 t |
|
Number of 20ft containers |
2.556 |
|
Container capacity 14t |
1.850 |
|
Reefer capacity |
600 |
|
Length |
210,06 m overall 199,00 m between perpendiculars |
|
Breadth |
30,23 m extreme |
|
Draught |
11,50 m |
|
Forecastle |
26,45 m |
|
Poop |
38,96 m |
|
Freeboard |
5.240 mm |
|
Depth |
16,70 m moulded |
|
Speed |
21,0 knots |
|
Built |
2004 |
|
Keel laid |
23.12.2003 |
|
Launch date |
13.03.2004 |
|
Date of completion |
19.04.2004 |
|
Builder |
Hyundai Heavy Ind. Co., Ltd. |
|
Yard number |
H1491 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer/HHI 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW / 29.313 hp at 99,0 rpm Year of manufacture: 2003 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 99,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite - Vertical composite boiler |
|
Electric installations |
4x Plant each 450 V - 2.133 kVA 1x Plant 450 V - 188 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
4x MAN B&W 8 L28/32H main diesel generatorsets each 1.600 kW / 2.133 kVA |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 188 kVA |
|
Compressed air receivers |
2x Receivers each 5.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster KAWASAKI - 1.000 kW, forward |
|
Tank capacities |
Ballast: 9.457 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Length: 660,00 m Diameter: 76 mm |
|
Cargo gear |
4x Deck cranes - SWL 40,0 t each |
|
Crew size |
27 |
|
Manager |
Ahrenkiel Steamship GmbH & Co. KG |
|
Registered owner |
RIO THELON OpCo GmbH & Co. KG |
|
Latest data adjustment |
11 January 2017 |
