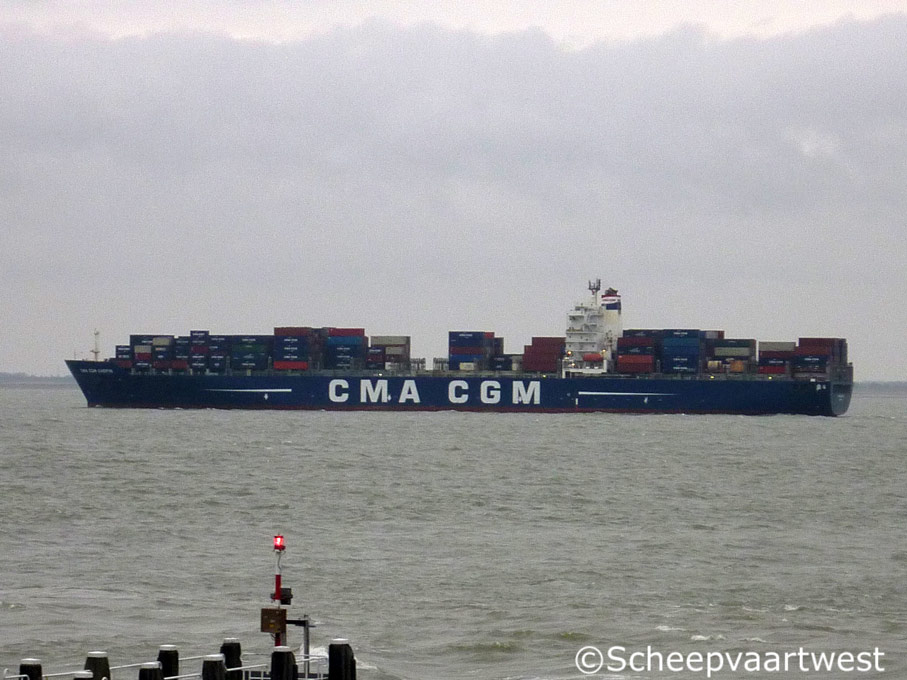

CMA CGM Chopin 06
Westerschelde 21 January 2012

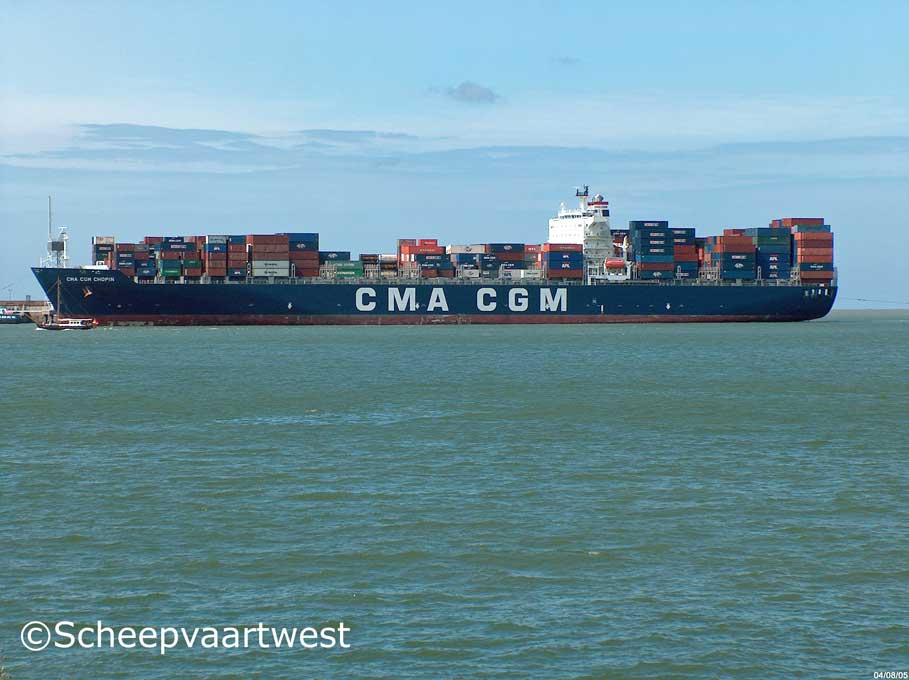

CMA CGM Chopin
Zeebrugge 04/08/05



Name

CMA CGM CHOPIN

Type

Cellular Containership

IMO-number

9280603

Call sign

FZQF

Flag

France

Previous flags

04.06.2004 Bahamas

05.09.2006 French Southern & Antarctic Territories

Port of registry

Marseille

GT

65.730 t

Suez: 67.786 t

DWT

Summer: 73.234 t

NT

37.549 t

Suez: 56.509 t

Number of 20ft containers

5.782

Container capacity 14t

4.390

Reefer point

500

Length

277,28 m overall
260,06 m between perpendiculars

Breadth

40,00 m

Draught

Summer: 14,50 m

Freeboard

9.700 mm

Depth

24,30 m

Speed

24,5 knots

Freeboard

Summer: 3.138 mm

Built

2004

Date of completion

05.05.2004

Builder

Samsung Shipbuilding & Heavy Industries Goeje Shipyard Co., Ltd.
Goeje (Kyungnam)
South Korea

Yard number

1458

Hull material

Steel

Hull type

Single hull

Watertight compartments

12

Propelling engine

1x MAN & Burmeister & Wain 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm internal combustion engine - 77.600 kW at 104,0 rpm

Built: 2003

Builder: Hyundai Heavy Industries Co. Ltd. Engine & Machinery, Ulsan - South Korea

Electrical propulsion gen.

1x 2.100 kW - 450 V

Number of screws

1x Screw propeller solid at 104 rpm

Boilers

1x CHO Aalborg 40,14 m² - 9,00 bar
1x CHR Aalborg 714,00 m² - 9,00 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Shaft generator

2.100 kW

Generators

3x Main diesel generatorsets 3.375 kVA - 2.700 kW - 978 hp

Emergency generators

1x Diesel generatorset 188 kVA - 150 kW - 270 hp

Bow thruster

2.000 kW

Cargo holds

8

Cargo hatchways

8

1x 12,60 x 15,50 m
1x 12,60 x 25,60 m
6x 12,60 x 35,70 m

Fuel capacity

9.092 m³

Lifting equipment

3x Cranes - SWL 12,5 t each

Cargo Gear

Gearless

Manager

CMA CGM
Marseille
France

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

Owner

CMA CGM
Marseille
France
