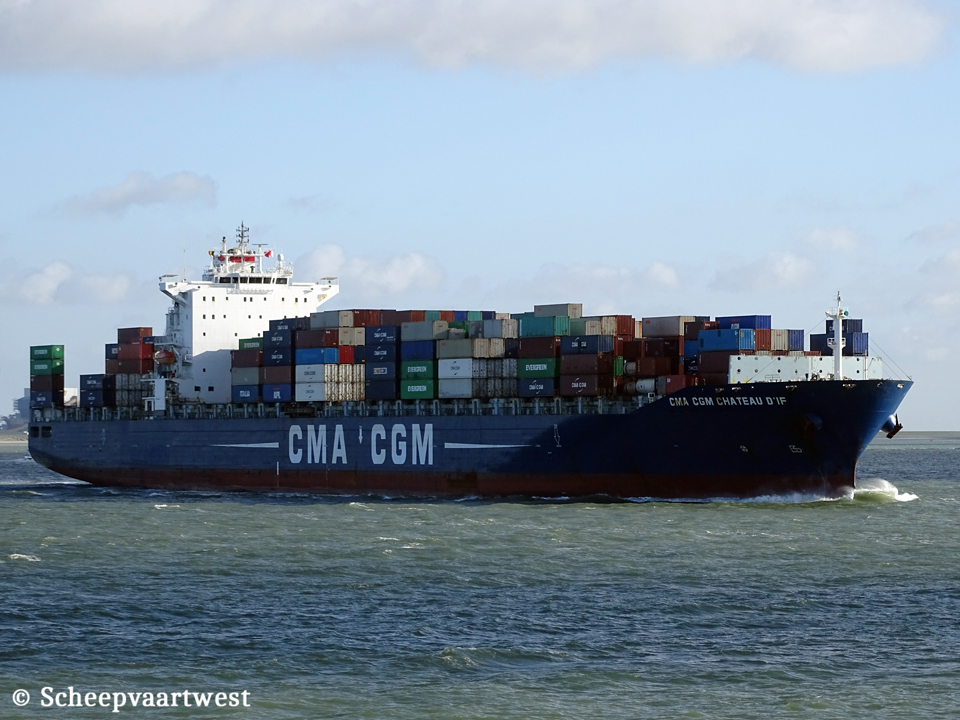

CMA CGM Chateau D'If IMO 9335202 02

Westerschelde 13 November 2018

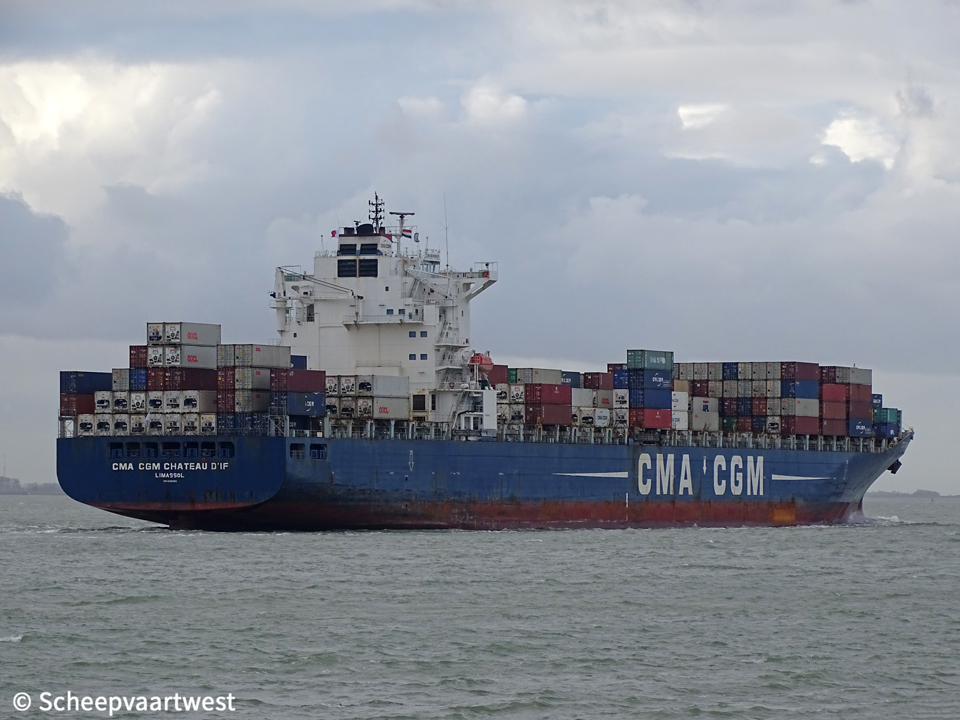

CMA CGM Chateau D'If 01
Westerschelde 23/12/19









Name

CMA CGM CHATEAU D’IF

Previous names

2007 build as: COSCO Norflok

Type

Cellular containership - Panamax

IMO-number

9335202

Call sign

9HA5221

Flag

Malta

Port of registry

Valletta

Previous flags

2007 - 2020 Cyprus, Limassol - Call sign: 5BHB2

GT

54.778 t

DWT

Summer: 68.2841 t

NT

31.736 t

Number of 20ft containers

5.089

Container capacity 14t

3.350

Reefer capacity

386

Length

294,10 m overall

283,75 m between perpendiculars

Breadth

32,20 m

Draught

Summer: 13,50 m

Keel to mast end

55,90 m

Freeboard

3.939 mm

Depth

21,60 m

Speed

Max: 24,3 knots

Built

2007

Date of completion

27/12/2007

Builder

Hanjin Heavy Industries &Amp; Construction Co., Ltd.

Busan Yard

South Korea

Yard number

N171

Hull material

Steel

Hull type

Single hull, double bottom

Watertight compartments

8

Continuous decks

1

Main engine

1x Hyundai/MAN-B&W 9K90MC-C - 2 stroke single acting 9 cylinder 900 x 2.300 mm combustion engine 41.130 kW / 55.883 hp at 104,0 rpm

Build: 01/2007

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Fixed pitch propeller - aft at 104,0 rpm

Boilers

1x CHM Kangrim 741,00 m² - 10,0 bar

Generators

4x Main diesel generatorsets 2.484 kVA - 1.987 kW - 2.283 hp

Emergency generator

1x Diesel generatorset 313 kVA - 250 kW - 340 hp

Bow thruster

1x Tunnel thruster 1.900 kW / 2.583 bhp, forward

Tank capacities

Fuel: 6.500 m³

Cargo gear

Gearless

Crew size

25

Manager

CMA CGM SA The French Line

4, quai d Arenc

13002 Marseille

France

Operator

CMA CGM

Registered owner

Global Ship Lease 47 LLC

Renamed

2020 GSL Chateau D’If

Malta, Valletta - Call sign 9HA5221

Owner: Global Ship Lease 47 LLC - greece

Manager: Conchart Commercial Inc. - Greece

Latest data adjustment

17 August 2022
