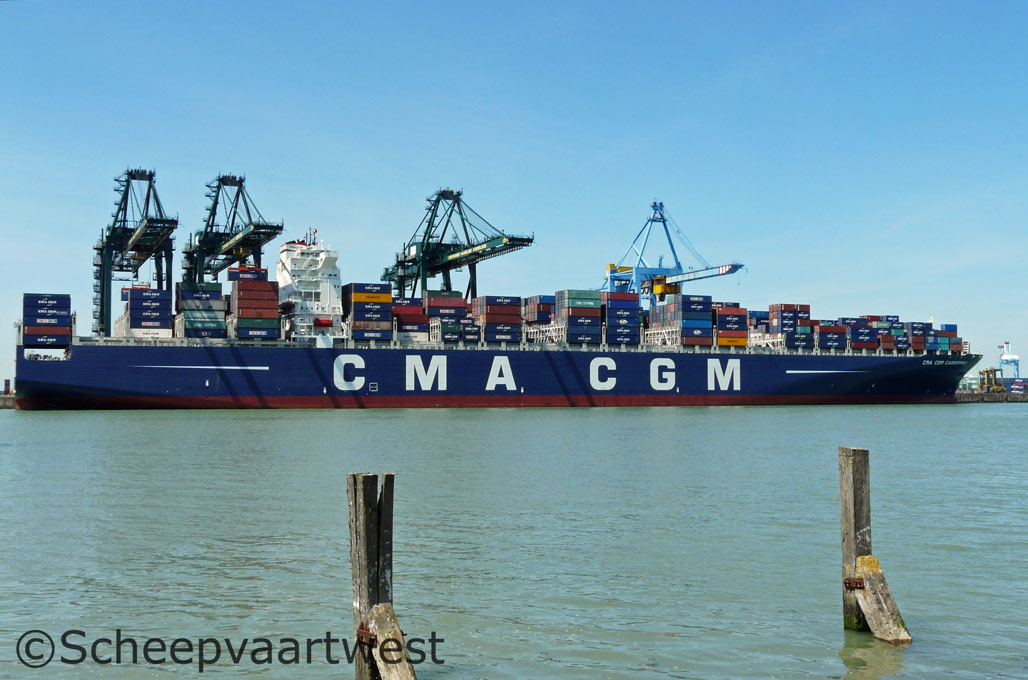

CMA CGM Cassiopeia 01
Zeebrugge 01 June 2011

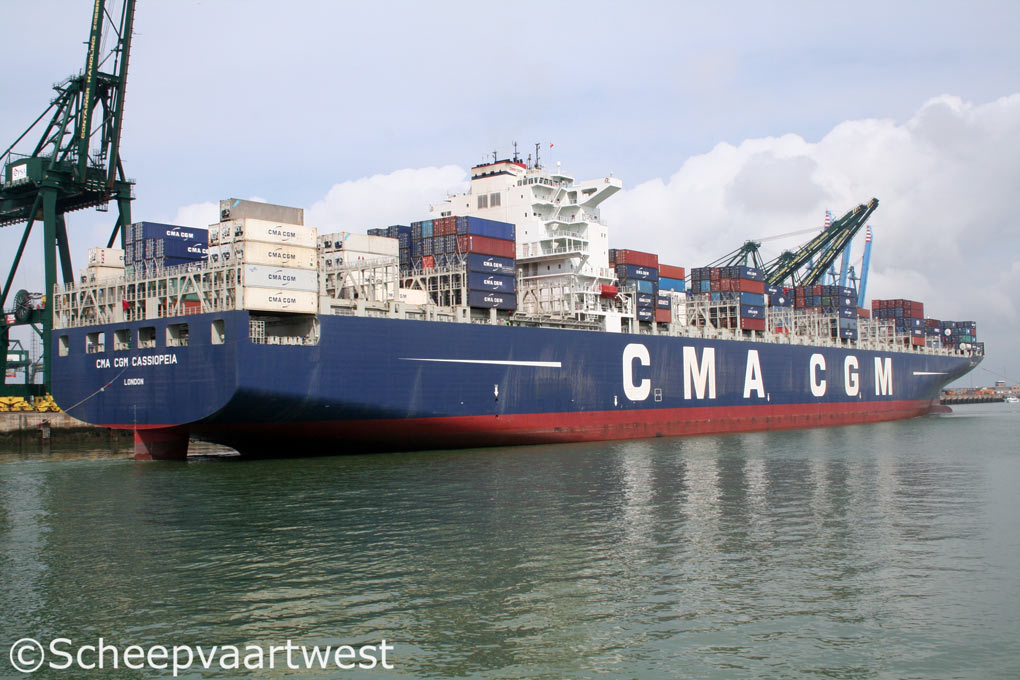

CMA CGM Cassiopeia 05
17/08/11



Name

CMA CGM CASSIOPEIA

Type

Cellular containership

IMO-number

9410765

Call sign

2CRJ3

Flag

United Kingdom

Port of registry

London

GT

131.332 t

DWT

128.550 t

NT

59.901 t

Number of 20ft containers

11.388

Container capacity 14t

8.130

Reefer point

800 on deck

Length

363,00 m overall

348,00 m between perpendiculars

Breadth

45,60 m

Draught

Summer: 15,50 m

Freeboard

7.451 mm

Depth

29,74 m

Speed

24,7 knots

Built

2009

Date of completion

15.10.2009

Builder

HHI - Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

1995

Hull material

Steel

Hull type

Single hull

Watertight compartments

13

Continuous decks

2

Main engine

1x HHI MAN B&W 12K98 MC-C Mk 7 - 2 stroke 12 cylinder 9800 x 2.400 mm internal combustion engine - 72.240 kW / 98.152 hp at 104,0 rpm

Built: 18.05.2009

Builder: Hyundai Heavy Industries Co., Ltd., Ulsan - South Korea

Propelling system

1x Screw propeller solid at 104 rpm

Boilers

1x CHO AALBORG 40,14 m² - 9,00 bar
1x CHR AALBORG 700,00 m² - 9,00 bar

Generators

3x Main diesel generatorsets each 2.926 kVA - 2.341 kW - 3.139 hp
2x Main diesel generatorsets each 3.760 kVA - 3.008 kW - 4.035 hp

Bow thruster

3.000 kW

Number of holds

10

Total capacity of holds

288.653,70 m³

Fuel capacity

15.562 m³

Cargo gear

Gearless

Crew

25

Managing owners

CMA CGM - Compagnie Maritime D' Affrètement - Compagnie Générale Maritime

Operator

CMA CGM

Owner

Alize 1995
