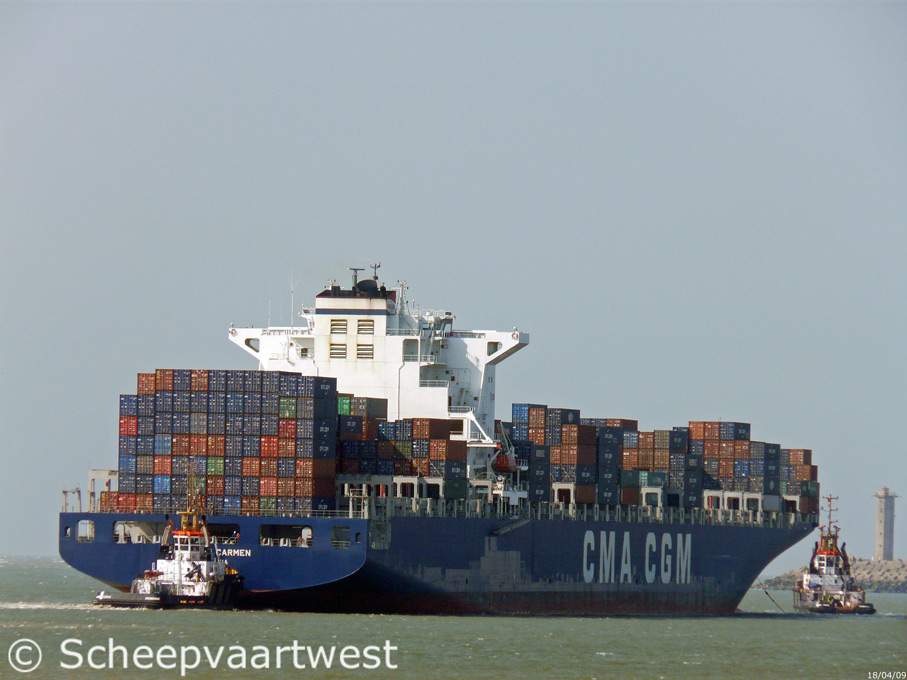

| Zeebrugge 18 April 2009 |
 |
 |
 |
 |
|||

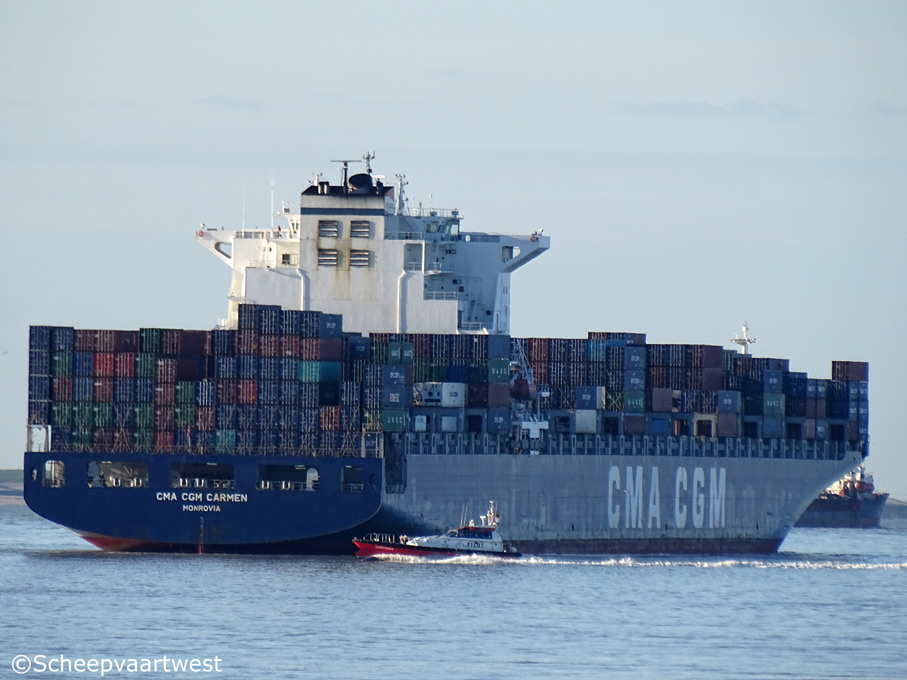

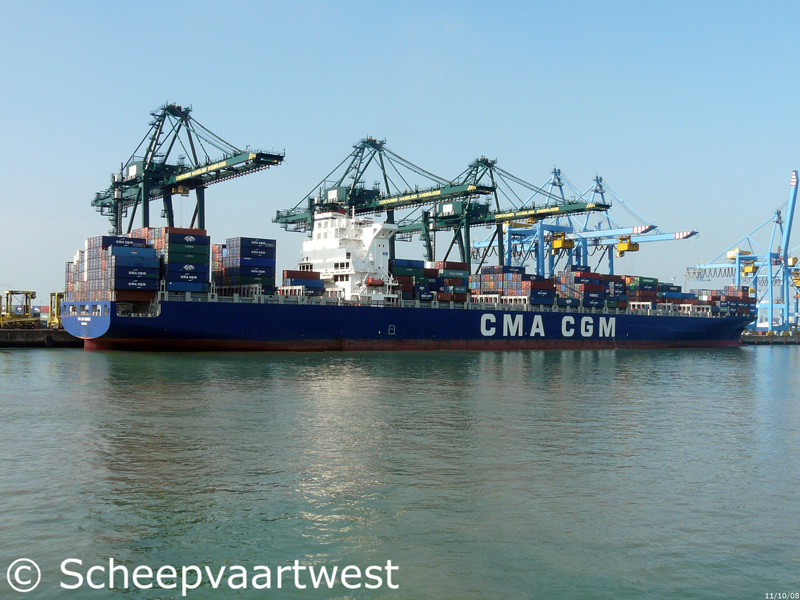

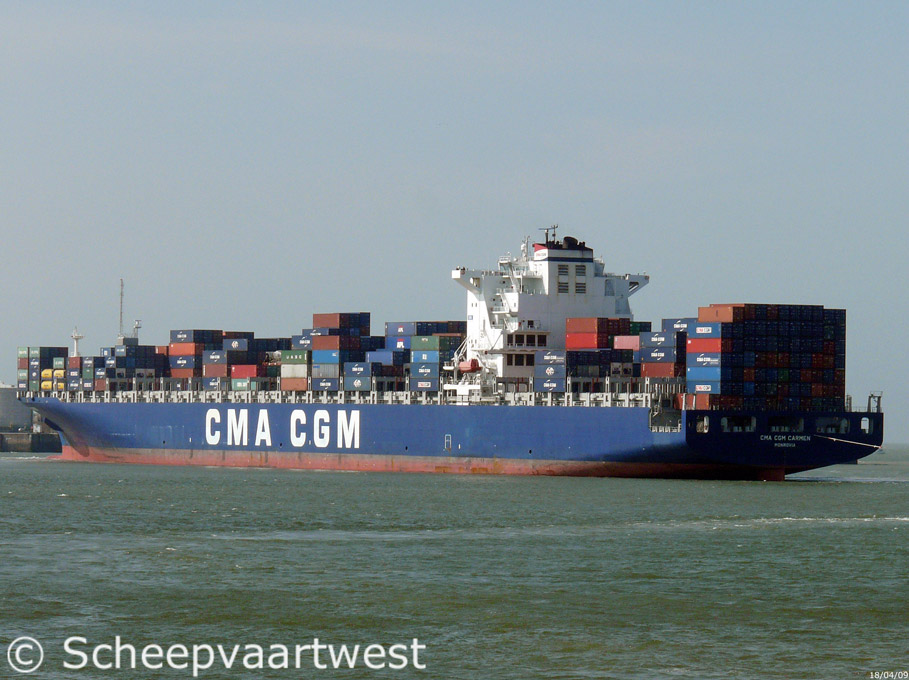

| Zeebruegge 18/04/09 | Zeebruegge 18/04/09 | Zeebruegge 11/10/08 | Westerschelde 17/01/16 |
|
Name |
CMA CGM CARMEN |
|
Previous name |
2006-2006 ER Tokyo |
|
Type |
Cellular containership |
|
IMO-number |
9318046 |
|
Call sign |
A8IE8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
91.649 t |
|
DWT |
Summer: 100.680 t |
|
NT |
55.388 t |
|
Number of 20ft containers |
8.204 |
|
Container capacity at 14t |
6.090 |
|
Reefer Point |
700 |
|
Length |
334,08 m overall 319,00 m between perpendiculars 320,94 m registered |
|
Breadth |
42,80 m extreme |
|
Draught |
Summer: 14,67 m |
|
Bridge |
152,47 m |
|
Forecastle |
160,47 m |
|
Freeboard |
6.000 mm |
|
Depth |
20,14 m |
|
Speed |
25,4 knots |
|
Built |
2006 |
|
Keel laid |
17.04.2006 |
|
Launch date |
30.06.2006 |
|
Date of completion |
07.09.2006 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. |
|
Yard number |
S264 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Double bottom |
|
Watertight bulkheads |
11 |
|
Number of continuous decks |
2 |
|
Main engine |
1x MAN B&W 12K98MC - 2 stroke single acting 12 cylinder 980 x 2.660 mm diesel engine- 69.620 kW Built: 2006 Builder: Hyundai Heavy Industries Ulsan - South Korea |
|
Number of screws |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired Max. working pressure: 10,0 bar Heating surface: 42,17 m² 1x Steam boiler, exhaust gas heated Max. working pressure: 10,0 bar Heating surface: 677,0 m² Built: 2006 Manufacturer: Aalborg Industries Ltd. |
|
Electric installations |
1x Plant 660 V - 16.287 kVA 1x Plant 450 V - 525 kVA 1x Plant 12 V - 92 Ah 1x Plant 24 V - 600 Ah |
|
Generators |
2x MAN-B&W 9L27/38 main diesel generatorsets each - 2.944 kW / 3.744 kVA 3x MAN-B&W 7L27/38 main diesel generatorsets each 2.310 kW / 2.933 kVA |
|
Emergency generator |
1x Diesel generatorset 525 kVA |
|
Batteries |
1x Battery for UPS radio 200 Ah 1x Battery for diesel control 92 Ah |
|
Compressed air receivers |
2x Receivers, each 16.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 2.000 litres - 7,8 bar 1x Receiver 250 litres - 7,7 bar |
|
Bow thruster |
1x 2.500 kW forward |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Chain length: 742,50 m Diameter: 107 mm |
|
Cargo Gear |
Gearless |
|
Crew |
23 |
|
Manager |
E.R. Schiffahrt GmbH & Cie. KG |
|
Previous managers |
2006 - 2008 E.R. Schiffahrt GmbH & Cie. KG 2008 - 2008 MS "E.R. TOKYO" Schiffahrtsges. mbH & Co. KG |
|
Operator |
CMA CGM |
|
Owner |
MS "E.R. TOKYO" Schiffahrtsges. mbH & Co. KG |
|
Previous owners |
2006 - 2006 Nordcapital 2006 - 2008 Siebenunddreißigste "Katharinen" Schiffahrtsges. mbH & Co. KG MS "E.R. TOKYO |
|
Owner as completed |
Fortythird Dragon Sg Inc. |
|
Renamed |
08.2016 E.R. Tokyo |
|
Latest data adjustment |
31 January 2016 |
