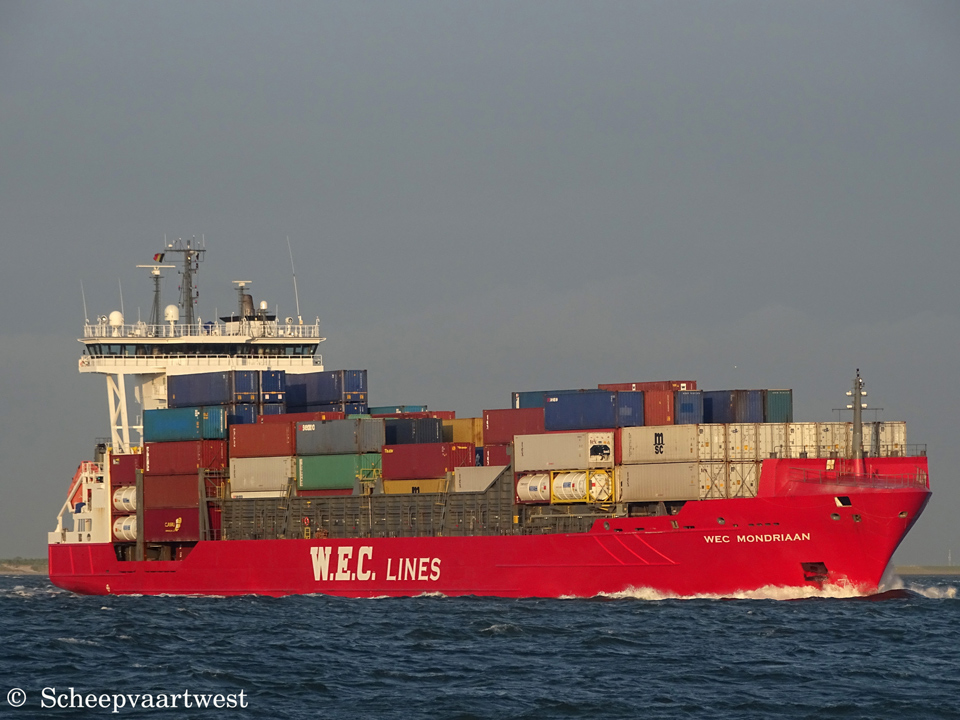

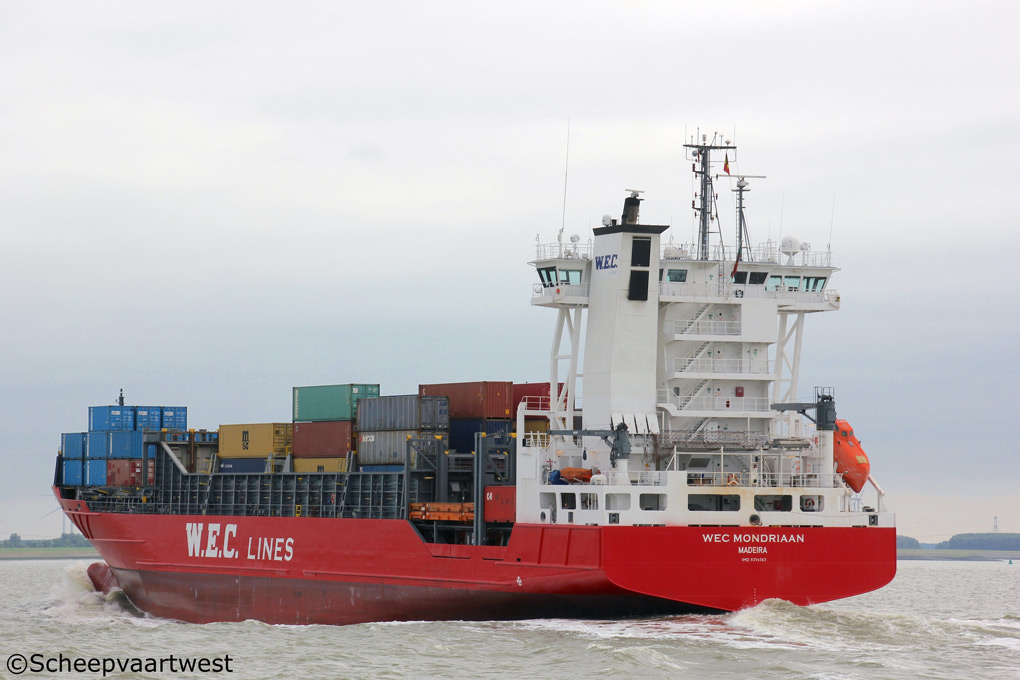

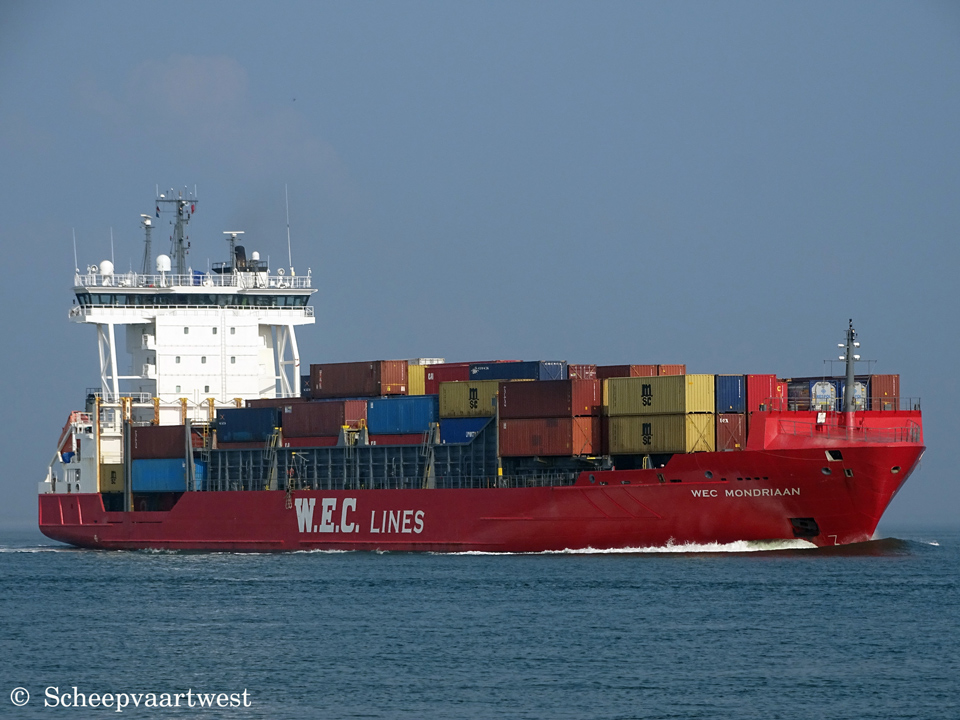

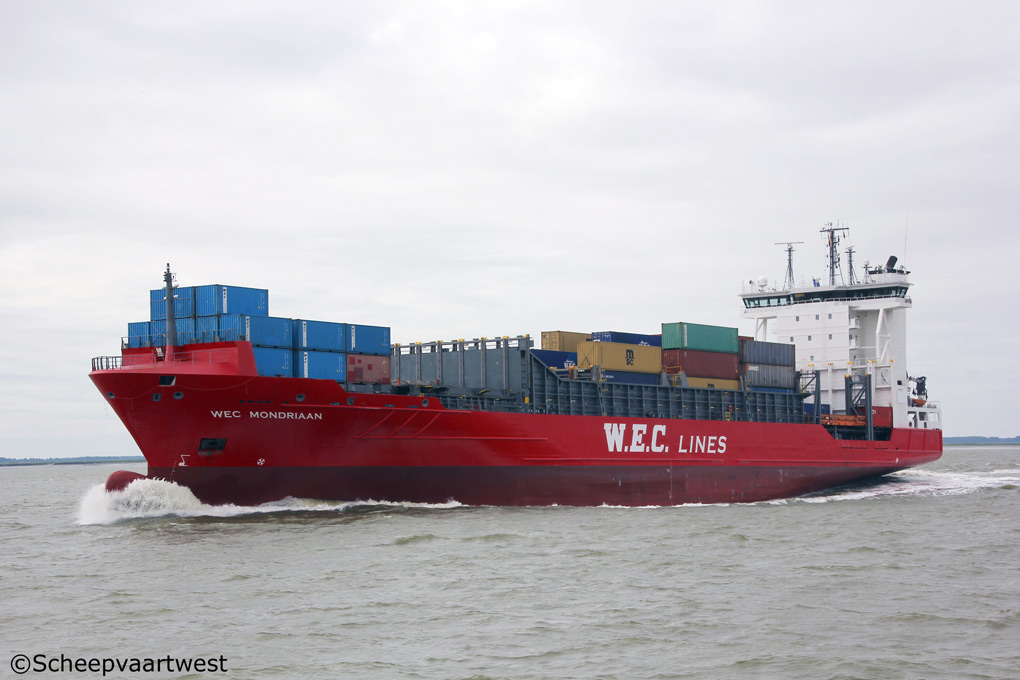

WEC Mondriaan - IMO 9354363

Westerschelde 07 August 2016

Name

WEC MONDRIAAN

Previous names

2006 - 2013 Annabella - United Kingdom, London - Call sign: MPJG8

2013 - 2016 Annabella S

Type

Cellular containership - Shortsea/Feeder

IMO-number

9354363

Call sign

CQCY

Flag

Portugal

Port of registry

Madeira

Previous flags

2006 - 2013 United Kingdom

2013 - 2015 Liberia, Monrovia - Call sign: D5EY3

GT

9.981 t

DWT

Summer: 11.273 t

NT

6.006 t

Number of 20ft containers

868

Number of 40ft containers

392

Container capacity 14t

612

Reefer capacity

234 - 380 Volt/50Hz

Length

134,44 m overall

124,41 m between perpendiculars

Breadth

22,74 m extreme

22,50 m moulded

Draught

8,70 m

Depth

11,30 m

Freeboard

2.609 mm

Speed

Max.: 18,5 knots

Built

2006

Keel laid

02/12/2004

Launch date

01/08/2006

Date of completion

28/09/2006

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
Hamburg
Germany

Yard number

1235

Hull material

Shipbuilding steel (standard)

Hull type

Single hull double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x MaK 9M43 - 4 stroke9 cylinder combustion engine engine 8.400 kW / 11.420 bhp at 500 rpm

Reduction power: 7.950 kW

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating surface: 221,5 m²
1x Thermal oil heater, oil fired - 10,0 bar
Heating surface: 517,0 m²

Electric installations

1x Plant 400 V - 1.155 kVA
1x Plant 400 V - 1.390 kVA
1x Plant 400 V - 1.860 kVA
1x Plant 400 V - 400 kVA
1x Plant 24 V - 140 Ah

Shaft generator

1x SAM S E 500: 1.488 kW / 1.860 kVA

Generators

1x Caterpillar main diesel generatorset 1.112 kW / 1.390 kVA
1x Caterpillar main diesel generatorset 924 kW / 1.155 kVA

Emergency generator

1x Caterpillar 3406 diesel generatorset 400 kVA

Batteries

2x Batteries for start emergency engine each 140 Ah

Compressed air receivers

2x Receivers each 750 litres - 30,0 bar
1x Receiver 10 litres - 30,0 bar
1x Receiver 500 litres - 11,0 bar

Thruster

750 kW, forward

450 kW, aft

Number of holds

4

Cargo hold capacity

Grain: 4.730 m³

Number of hatches

4

Tank capacities

Fuel oil: 861 t
Fresh water: 128 t
Gas oil: 113 t
Water ballast: 4.030 t

Anchor equipment

3x Anchors weight each 5.250 kg

Length: 580,80 m

Diameter: 56 mm

Crew size

19

Manager

WEC Lines BV
Albert Plesmanweg 59

3088 GB Rotterdam
The Netherlands

Operator

W.E.C. Lines

Owners

Holland Maas Scheepvaart Beheer IV
Albert Plesmanweg 59
3088 GB Rotterdam
The Netherlands

Latest data adjustment

28 December 2018
