| Spijkenisse 22 May 2009 |
 |

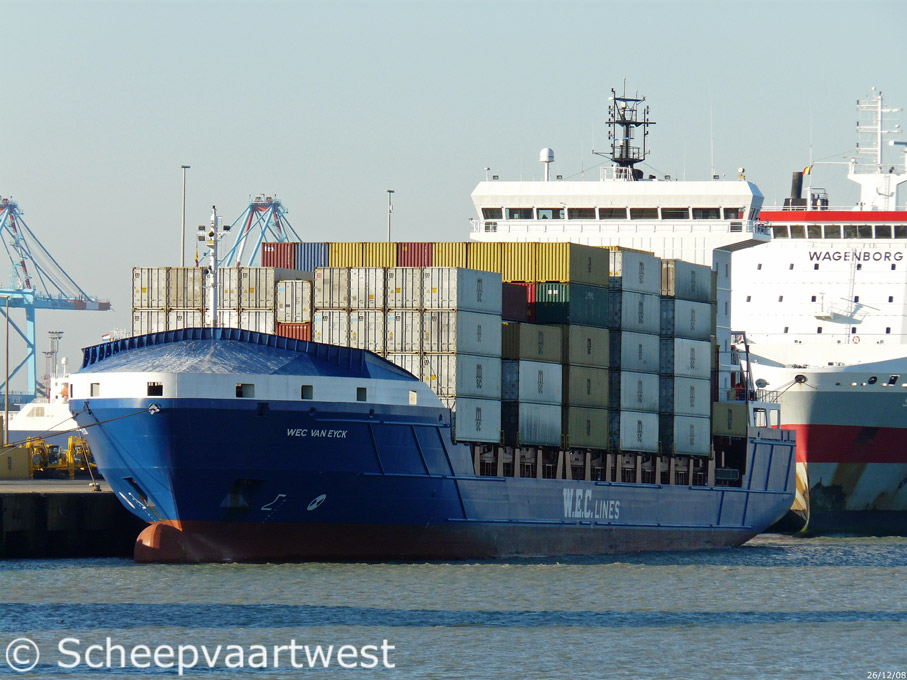

| Zeebrugge 26/12/08 |
|
Name |
WEC VAN EYCK |
|
Previous name |
2008 - 2008 Perseus J 2008 WEC Van Eyck |
|
Type |
Cellular Containership |
|
IMO-number |
9371414 |
|
Call sign |
DCVO2 |
|
Flag |
Germany |
|
Port of registry |
Haren / Ems |
|
GT |
10.965 t |
|
DWT |
12.558 t |
|
NT |
4.714 t |
|
Number of20ft containers |
925 |
|
Container capacity at 14t |
625 |
|
Reefer containers |
200 |
|
Length |
140,38 m overall 132,52 m registered |
|
Breadth |
22,80 m over all |
|
Draught |
Summer: 8,70 m |
|
Freeboard |
3.200 mm |
|
Depth |
11,90 m |
|
Speed |
18,3 knots |
|
Built |
2008 |
|
Date of order |
01.06.2005 |
|
Keel laid |
13.06.2007 |
|
Launch date |
02.04.2008 |
|
Date of completion |
25.02.2008 |
|
Builder |
Naval Gijon S.A. C/ Mariano Pola, 34 |
|
Yard number |
702 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom |
|
Main engine |
1x MAN B&W 8 L48/60B - 4 stroke single acting 8 cylinder 480 x 600 mm diesel engine - 9.600 kW Built: 2007 Builder: MAN Group Munchen - Germany |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 13,0 m² 1x Exhaust gas heated boiler - 9,0 Bar Heating surface: 84,0 m² Year of manufacture: 2007 Manufacturer: Aalborg Industries A/S |
|
Electric installations |
1x 450/230 V - 1.875 kVA 1x 450 V - 1.250 kVA 1x 450 V - 625 kVA 1x 24 V - 410 Ah |
|
Shaft generator |
1x 1.250 kVA |
|
Main generators |
2x Main diesel generatorsets each 937,5 kVA |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Batteries |
1x Battery for diesel control - 140 Ah 1x Battery for UPS radio - 135 Ah 1x Battery for diesel control - 85 Ah 1x Battery for automation - 50 Ah |
|
Bow thruster |
1x Transverse thruster - 700 kW forward |
|
Compressed air receivers |
2x Receivers, each 710 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 2x Receivers, each 150 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain length: 577,50 m |
|
Cargo gear |
None |
|
Crew |
16 |
|
Manager |
Jüngerhans Maritime Services GmbH & Co. KG |
|
Operator |
WEC Line The Netherlands |
|
Owner |
Caixa D'Estalvis i Pensions de Barcelona |
