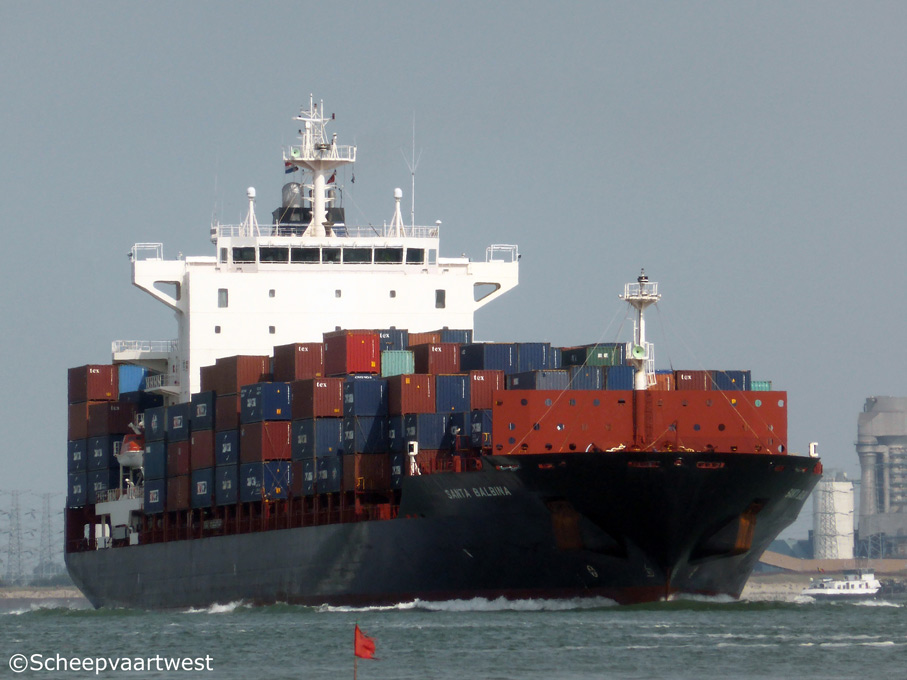

Santa Balbina 01

Westerschelde 31 May 2014



Name

SANTA BALBINA

Previous names

2006 - 11.2011 Maersk Jackson

11.2011 - 10.2014 Santa Balbina

Type

Cellular containership

IMO-number

9330513

Call sign

A8JZ4

Flag

Liberia

Port of registry

Monrovia

GT

28.616 t

DWT

Summer: 39.359,8 t

NT

14.769 t

Number of 20ft containers

2.824

Container capacity 14t

2.030

Reefer capacity

586

Length

222,11 m overall

212,18 m registered

210,00 m between perpendiculars

Breadth

30,07 m extreme

Draught

12,00 m

Freeboard

4.837 mm

Depth

16,80 m moulded

Speed

Max.: 13,0 knots

Built

2006

Keel laid

26.05.2006

Launch date

09.08.2006

Date of completion

25.09.2006

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381, Bangeo-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

0431

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

MAN-B&W 7K80 MC-C - 2 stroke 7 cylinder 800 x 2.300 mm combustion engine - 25.270 kW at 104,0 rpm

Year of manufacture: 2006

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless), aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 28,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 695,0 m²

Electric installations

4x Plants each 450/230 V - 2.000 kVA

1x Plant 450 V - 187,5 kVA

2x Plants each2 4 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x Man B&W 8 L28/32H main diesel generatorsets each 1.600 kW / 2.000 kW at 720 rpm

Emergency generator

1x 634 DSBIG diesel generatorset 187,5 kVA

Batteries

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 8.500 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 250 litres - 7,0 bar

Bow thruster

1x Transverse thruster 1.100 kW, forward

Number of holds

6

Number of hatches

11

Anchor equipment

3x Anchors weight each 9.900 kg

Length: 660,00 m

Diameter: 78 mm

Cargo gear

Gearless

Manager

Reederei Claus-Peter Offen (GmbH & Co.) KG
Hamburg
Germany

Owner

Kommanditgesellschaft MS "SANTA BALBINA" Offen Reederei GmbH & Co.
Hamburg
Germany

Renamed

10.2014 Satie

Malta, Valletta - Call sign: 9HA3767

Latest data adjustment

26 June 2016
