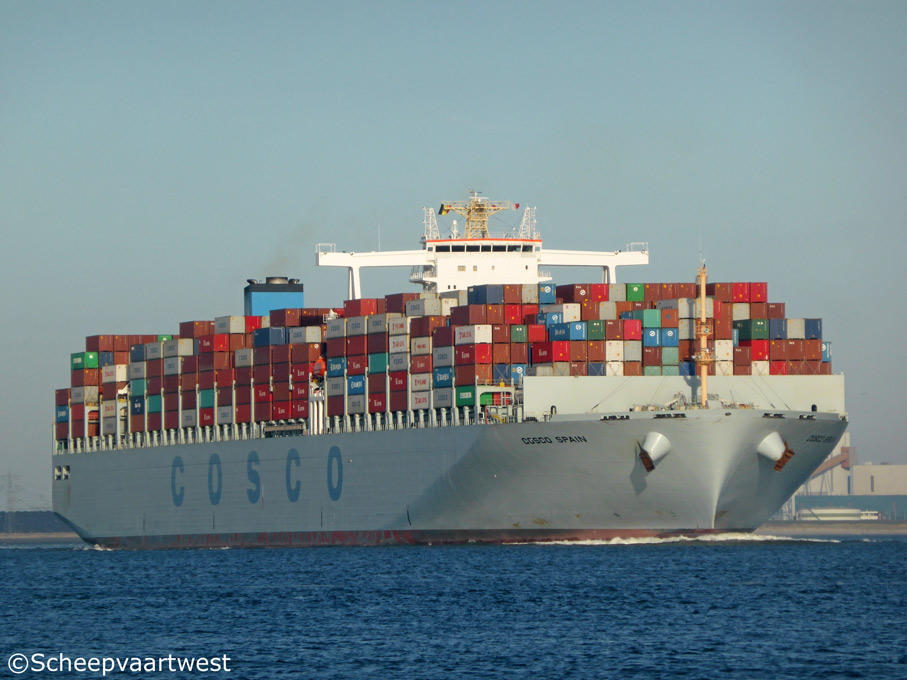

Westerschelde 21 April 2015 |
 |
 |
 |
 |
|||

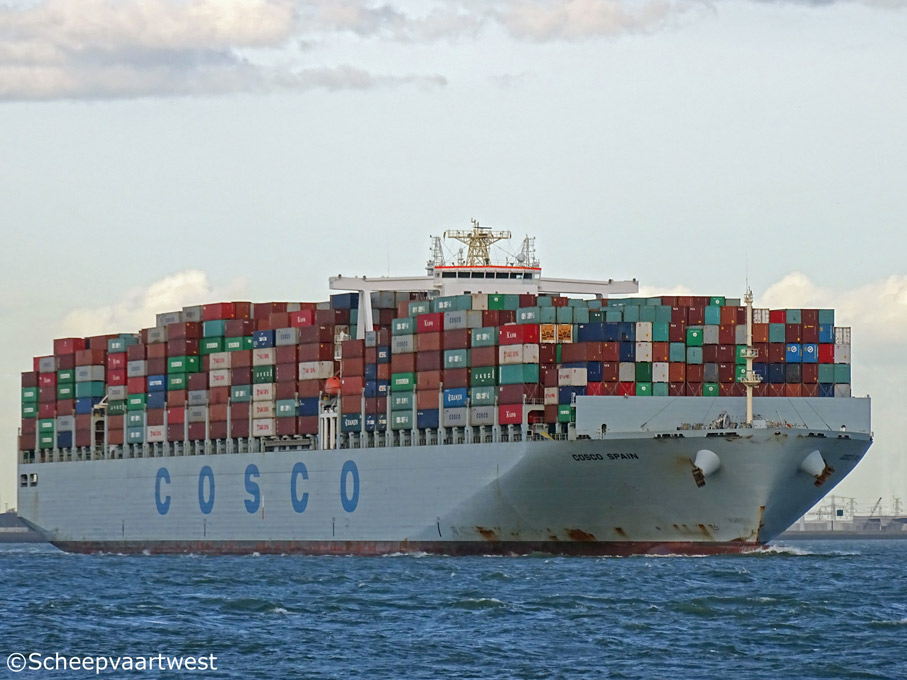

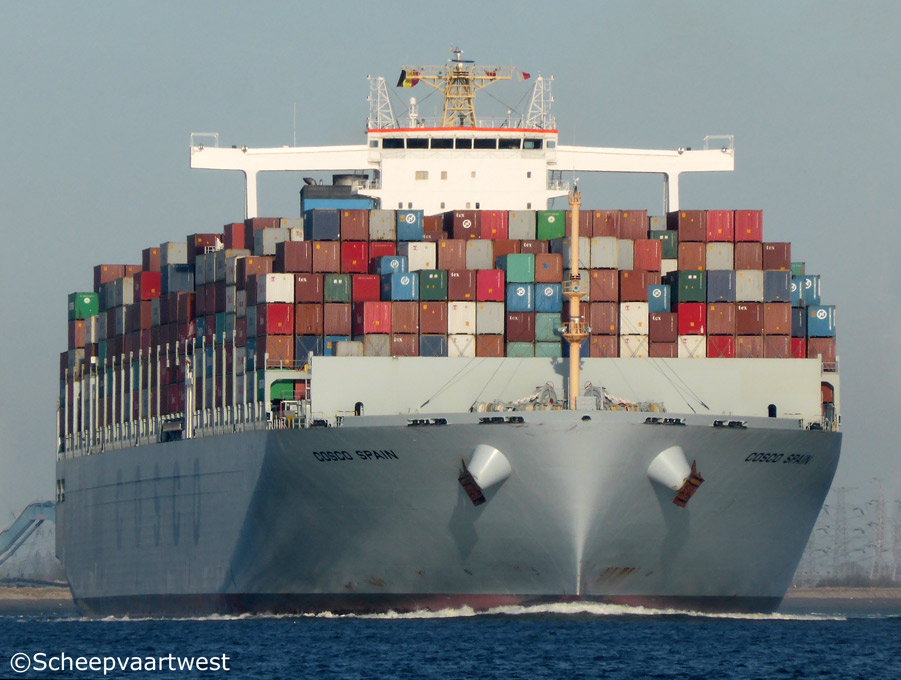

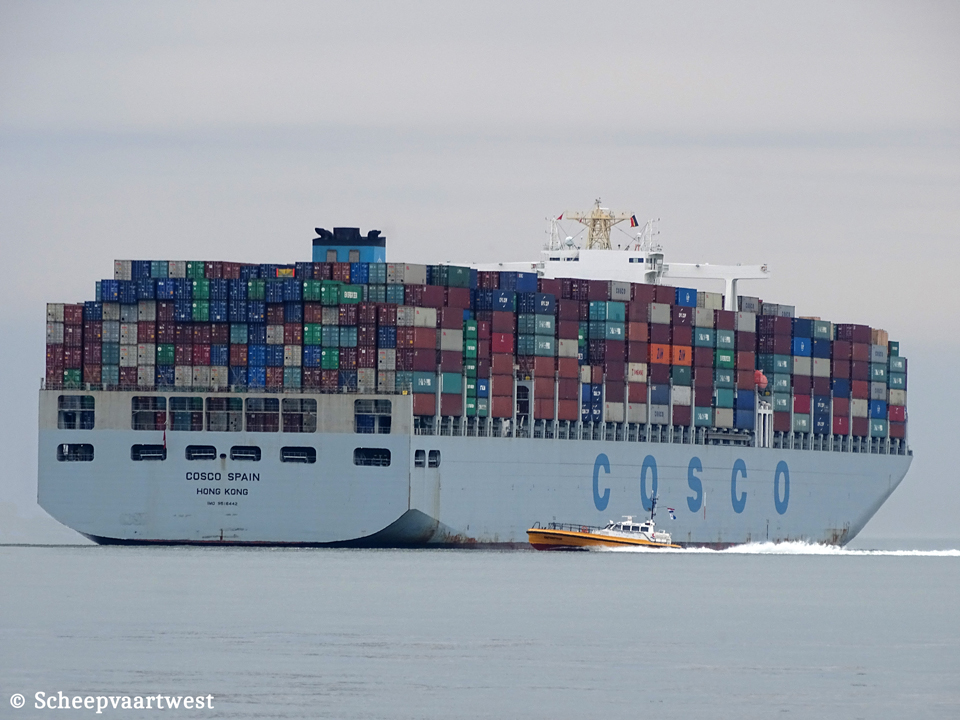

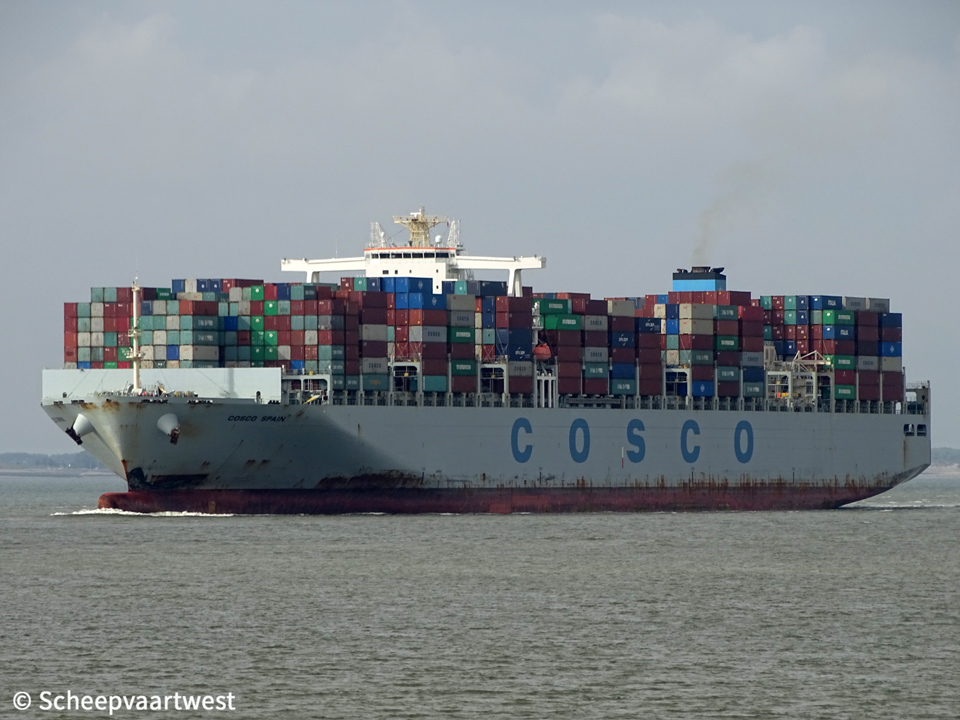

| Westerschelde 21/04/15 | Westerschelde 04/08/16 | Westerschelde 10/09/18 | Westerschelde 11/04/18 | |||
|
Name |
COSCO SPAIN |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9516442 |
|
Call sign |
VRMX2 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
153.666 t registered Suez: 159.758,81 t |
|
DWT |
Summer: 156.760 t |
|
NT |
65.592 t registered Suez: 144.606,03 t |
|
Number of 20ft containers |
13.386 |
|
Container capacity 14t |
9.000 |
|
Reefer containers |
1.008 |
|
Length |
365,90 m overall 348,00 m between perpendiculars |
|
Breadth |
51,20 m moulded |
|
Draught |
14,20 m |
|
Freeboard |
7.493 mm |
|
Depth |
29,85 m moulded |
|
Speed |
Max.: 24,3 knots |
|
Built |
2014 |
|
Keel laid |
24/10/2011 |
|
Launch date |
10/10/2013 |
|
Delivery date |
14/02/2014 |
|
Builder |
Nantong Cosco KHI Ship Engineering Co., Ltd. 117 Linjiang Road Nantong China |
|
Yard number |
NE115 |
|
Hull material |
High strength steel |
|
Bulkheads |
Water tight: 14 Oil tight: 2 |
|
Main engine |
1x MAN-B&W 12K98ME7 - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine 72.240 kW / 98.218 hp at 94,0 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Fixed pitch propeller (keyless) Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Fired boiler Mission OM 6L - 8,0 bar 1x Unfired exhaust gas boiler Mission XS-7V - 10,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x HSJ7 803-10P diesel generatorsets each 2.500 kW 2x HSJ7 809-10P diesel generatorsets each 3.000 kW Manufacturer: HHI Electro Electric System |
|
Bow thruster |
1x 2.700 kW |
|
Number of holds |
10 |
|
Hold capacity |
325.414,3 m³ |
|
Number of tanks |
Ballast water: 14 Fuel oil: 10 Lubricating oil: 9 Diesel oil: 3 Fresh water: 3 Chain: 2 Waste water: 2 Hydraulic oil: 1 Sludge: 1 |
|
Tank capacities 100% |
Diesel Oil: 739,8 m³ Freshwater: 700,2 m³ Fuel Oil: 12.070,1 m³ Hydraulic Oil: 19,4 m³ Lube Oil: 819,6 m³ Tank Ballast: 28.167,2 m³ |
|
Lifting equipment |
1x Monorail crane - SWL 13,0 t 1x Provision crane - SWL 4,0 t 1x Provision crane - SWL 1,5 t Manufacture: South China Marine Machinery Limited Corporation |
|
Cargo gear |
Gearless |
|
Commercial manager |
COSCO Container Lines Co., Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
ISM manager |
Shanghai Ocean Shipping Co., Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
Operator |
COSCO - China Ocean Shipping Company |
|
Registered owner |
COSCO (Cayman) Mercury Co., Ltd. Care of COSCO Shipping Lines Co., Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
Latest data adjustment |
10 January 2023 |
