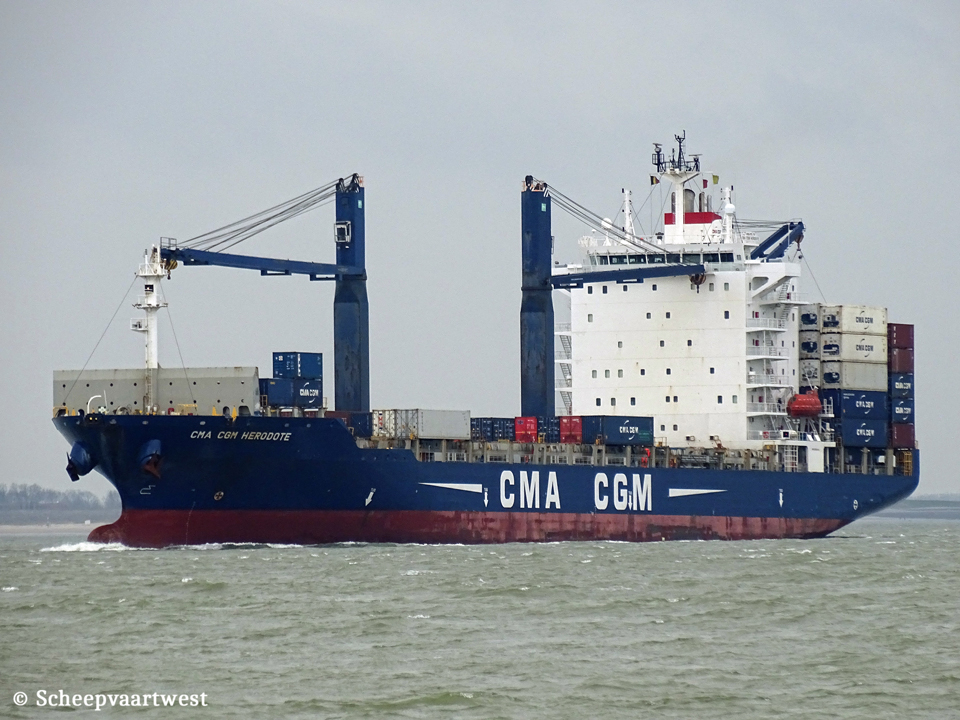

CMA CGM Herodote IMO 9360142 04

Westerschelde 06 April 2016

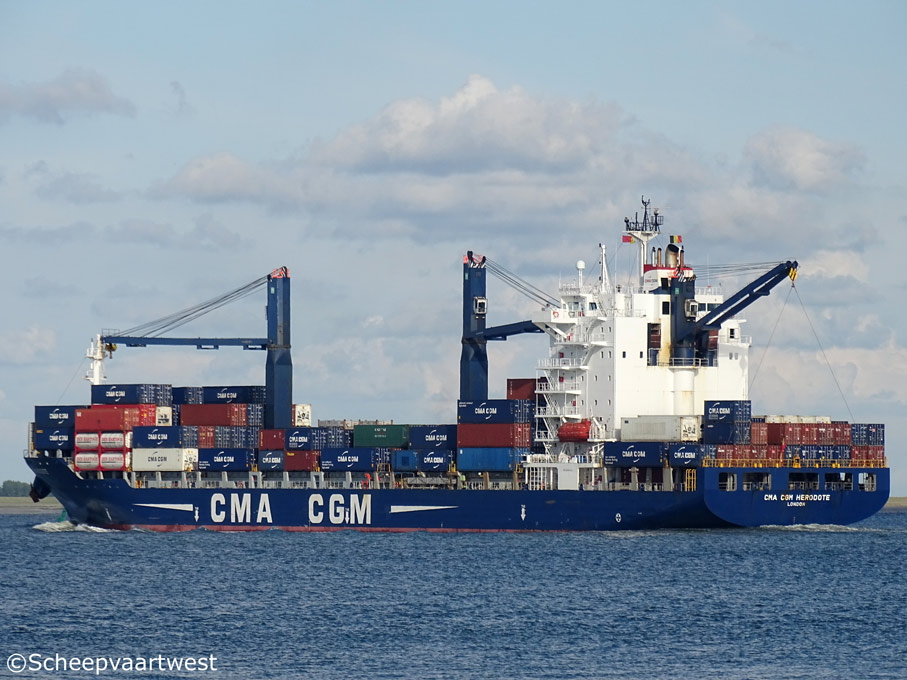

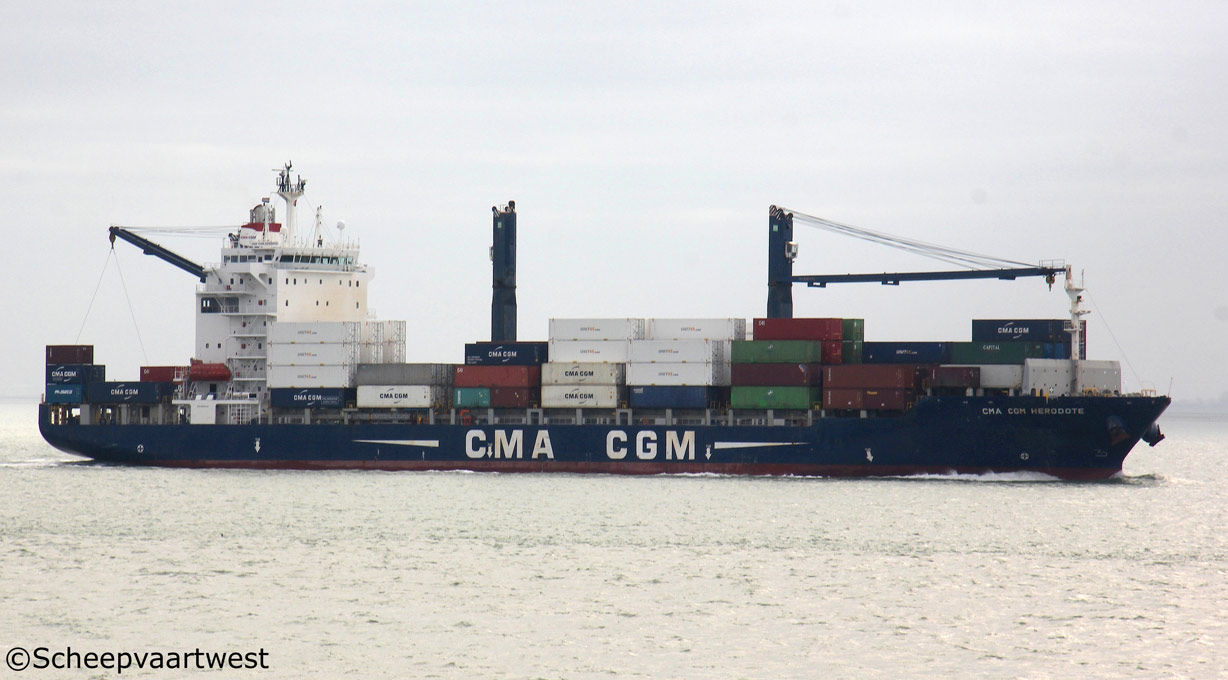

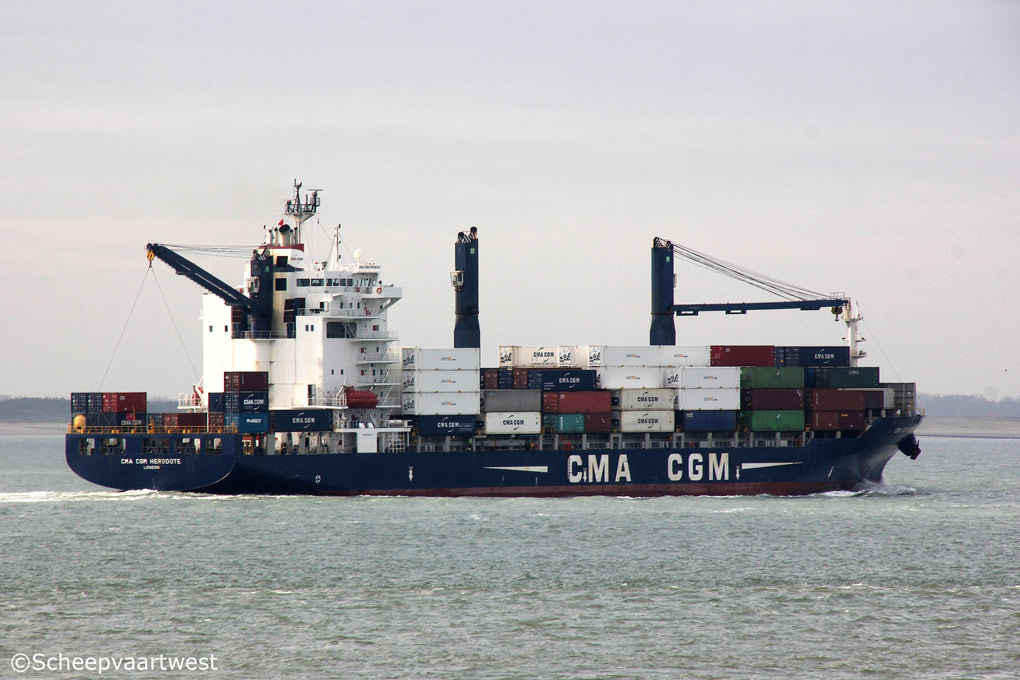

CMA CGM Herodote 01   CMA CGM Herodote 02   CMA CGM Herodote 03
Westerschelde 12/11/15   Westerschelde 12/11/15 Westerschelde 13/07/16


Name

CMA CGM HERODOTE

Type

Cellular containership

IMO-number

9360142

Call sign

KGMQ

Flag

United States of America

Port of registry

Wilmington, DE

Previous flags

2007 - 2019 United Kingdom, London - Call sign: MFEP

2019 - 2021 Malta, Valletta - Call sign: 9HA4983

GT

17.594 t

DWT

Summer: 21.257

NT

7.181 t

Number of 20ft containers

1.713

Container capacity 14t

1.149

Reefer capacity

402

Length

170,06 m overall

154,60 m between perpendiculars

Breadth

27,22 m extreme

Draught

9,36 m

Freeboard

4.676 mm

Depth

14,00 m

Speed

Max.: 21,0 knots

Service: 19,4 knots

Built

2007

Keel laid

02/10/2006

Launch date

19/01/2007

Date of completion

14/02/2007

Builder

Hyundai Heavy Industries Co. Ltd.

Ulsan

South Korea

Yard number

1870

Hull material

Steel

Watertight compartments

11

Continuous decks

2

Main engine

1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.495 hp at 105,0 rpm

Built: 2006

Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea

Propellers

1x Mono-block propeller solid - aft at 105,0 rpm

Boilers

1x Auxiliary boiler, composite Aalborg 364,00 m² - 10,0 bar

Electric installations

Power voltage: 450 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

3x Hyundai 8H21/32 main diesel generatorsets each 1.875 kVA - 1.500 kW - 2.174 hp

Emergency generator

1x Stamford UCM274FI diesel generatorset 156 kVA - 125 kW - 190 hp

Bow thruster

1x 800 kW, forward

1x 800 kW, stern

Number of holds

6

Cargo hatchways

8

6x 12,60 x 23,10 m

1x 12,60 x 17,90 m

1x 12,60 x 7,80 m

Tank capacities

Fuel oil: 2.832,1 m³

Ballast: 6.851,6 m³

Anchor equipment

Length: 632,50 m

Diameter: 68 mm

Cargo gear

2x Cranes - SWL 45,0 t each

1x Cranes - SWL 25,0 t

Crew size

36

Manager

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

4 Quai d'Arenc

Marseille

France

Operator

CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime

Owner

Provence Shipowner 2007 - 1 Ltd.

Renamed

2023 APL Islander

United States of America, Wilmington, DE - Call sign: KGMQ

Owner: APL Islander Trust

Manager: APL Maritime Ltd.

Latest data adjustment

18 February 2024
