Westerschelde 16 June 2019 |
|
Name |

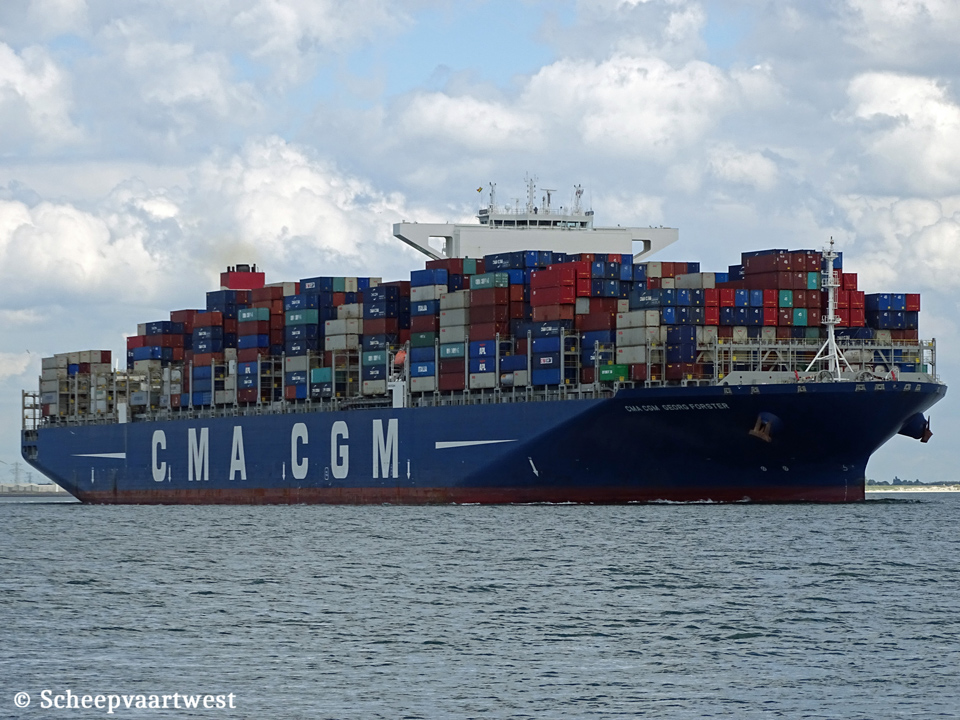

CMA CGM GEORG FORSTER |
|
Type |
Cellular containership |
|
IMO-number |
9702144 |
|
Call sign |
9HA5019 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2015 - 2019 United Kingdom - Call sign: 2IGY4 |
|
GT |
177.381 t Suez: 176.895 t |
|
DWT |
Summer: 186.529 t |
|
NT |
100.254 t Suez: 161.845 t |
|
Number of 20ft containers |
17.722 |
|
Container capacity 14t |
11.980 |
|
Reefer capacity |
1.458 |
|
Length |
398,00 m overall 380,00 m between perpendiculars |
|
Breadth |
54,00 m |
|
Draught |
Summer: 16,00 m |
|
Freeboard |
4.535 mm |
|
Depth |
30,00 m |
|
Speed |
Max: 23,5 knots Service: 22,0 knots |
|
Built |
2015 |
|
Date of completion |
02/06/2015 |
|
Builder |
Samsung Heavy Industries Co., Ltd. Geoje South Korea |
|
Yard number |
2093 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
13 |
|
Continuous decks |
1 |
|
Main engine |
1x Doosan/MAN-B&W 11S90ME-C9.2 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine 63.910 kW / 86.834 hp at 84,0 rpm Builder: Doosan Engine Co., Ltd., Gyeongnam - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 84,0 rpm |
|
Boilers |
1x CHO 40,14 m² - 10,0 bar 1x CHR 422,00 m² - 10,0 bar |
|
Generators |
2x Main diesel generatorsets each 3.500 kVA - 2.800 kW - 4.076 hp 2x Main diesel generatorsets each 4.750 kVA - 3.800 kW - 5.435 hp |
|
Emergency generator |
1x Diesel generatorset438 kVA - 350 kW - 628 hp |
|
Bow thruster |
2x Tunnel thruster1.900 kW / 2.583 bhp, forward |
|
Number of holds |
10 |
|
Total capacity of holds |
367.708,10 m³ |
|
Tank capacities |
Fuel: 13.423 m³ |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
CMA CGM SA The French Line 4, Quai d'Arenc 13002 Marseille France |
|
Operator |
CMA CGM |
|
Registered owner |
Atlantic 1816 SNC Care of CMA CGM SA (The French Line) 4, Quai d'Arenc 13002 Marseille France |
|
Latest data adjustment |
23 June 2021 |
