Barcelona - Spain 01 September 2015 |
|
Name |

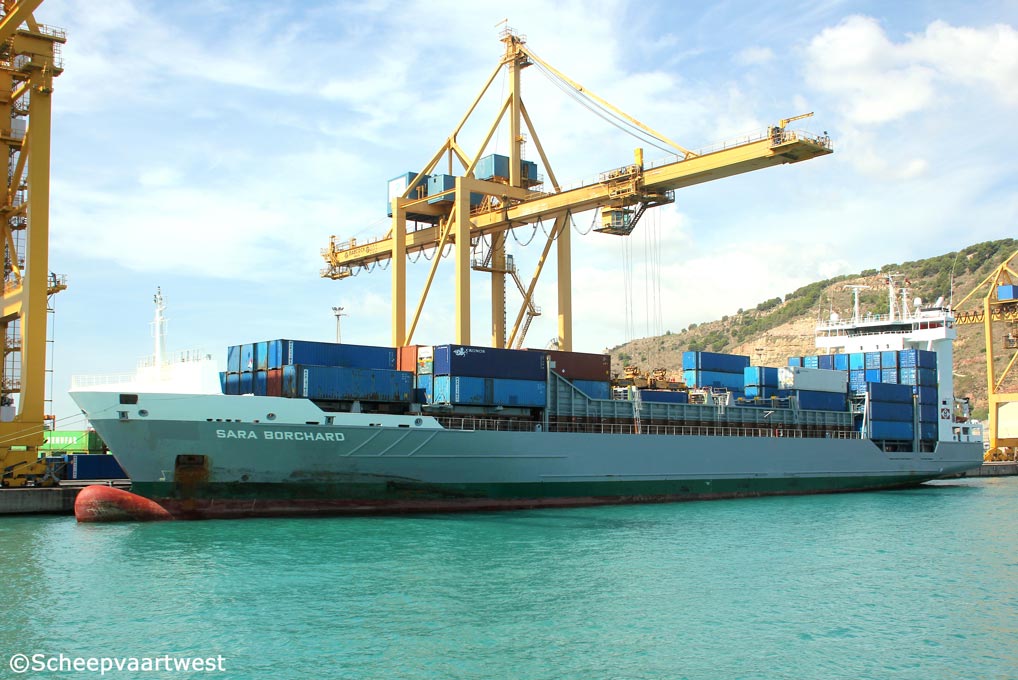

SARA BORCHARD |
|
Previous names |
2006 - 11.2007 Rita 11.2007 - 10.2009 Buxtehude 10.2009 - 10.2009 Sara Borchad |
|
Type |
Containership |
|
IMO-number |
9354399 |
|
Call sign |
V2BY8 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
Previous flags |
2006 - 2006 Germany |
|
GT |
9.962 t |
|
DWT |
Summer: 11.431 t |
|
NT |
6.006 t |
|
Light ship |
4.339 t |
|
Number of 20ft containers |
Hold 1 + 2: 77 Hold 3 + 4 (open) 524 Deck: 267 Total: 868 |
|
Number of 40ft containers |
Hold 1 + 2: 35 + 7 TEU Hold 3 + 4 (open): 260 + 4 TEU Deck: 99 + 69 TEU Total: 394 + 80 TEU |
|
Container capacity 14t |
610 |
|
Reefer capacity |
On deck: 46 In open holds: 188 |
|
Length |
134,44 m overall 124,41 m between perpendiculars |
|
Breadth |
22,74 m extreme 22,50 m moulded |
|
Draught |
4,60 m in ballast Summer: 8,71 m |
|
Air draft |
40,45 m |
|
Freeboard |
2.609 mm |
|
Depth |
11,30 m to main deck |
|
Speed |
18,5 knots loaded 20,50 knots in ballast 14,50 knots economic |
|
Built |
2006 |
|
Keel laid |
06.12.2004 |
|
Launch date |
11.05.2006 |
|
Date of completion |
06.07.2006 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1238 |
|
Hull material |
Steel |
|
Main engine |
1x Mak 9M43 - 4 stroke 9 cylinder diesel engine - 8.400 kW / 11.413 hp at 500 rpm Builder: Caterpillar Motoren GmbH & Co. KG, Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 130 rpm |
|
Boilers |
1x CHO 52,00 m² - 10,0 bar |
|
Shaft generator |
1 SAM SE 500 SE4 V1 - 1.300 kW |
|
Generators |
1x Caterpillar 3508 B diesel generatorset 1.070 kVA - 856 kW - 1.163 hp 1x Caterpillar 3512 B diesel generatorset 1.275 kVA - 1.020 kW - 1.386 hp 1x Diesel generatorset 425 kVA - 340 kW - 462 hp |
|
Emergency / harbour generator |
1x Caterpillar 3408 diesel generatorset 425 kVA - 340 kW - 462 hp |
|
Bow thruster |
1x Brunvoll 750 kW, forward 1x Brunvoll 450 kW, aft |
|
Number of holds (open top) |
Hold 3: 26,95 x 26,95 m Hold 4: 18,62 x 18,62 m |
|
Number of hatches |
2 Hatch 1: 12,40 x 13,30 m Hatch 2: 12,40 x 18,62 m |
|
Tank capacities |
Fuel oil: 818 m³ Water ballast: 4.030 m³ Gas oil: 107 m³ Fresh water: 128 m³ |
|
Anchor equipment |
Length: 580,86 m Diameter: 56 mm |
|
Cargo gear |
Gearless |
|
Manager |
Hans-Uwe Meyer Bereederungs GmbH & Co. KG |
|
Previous managers |
2006 - 2007 Reederei H.-G.Vöge GmbH & Co. KG |
|
Registered owner |
MS "BUXTEHUDE" Schifffahrts GmbH & Co. KG |
|
Previous owners |
2006 - 2007 MS "NB. 1238" Heinz-Georg Vöge GmbH & Co. KG |
|
Latest data adjustment |
16 October 2015 |
