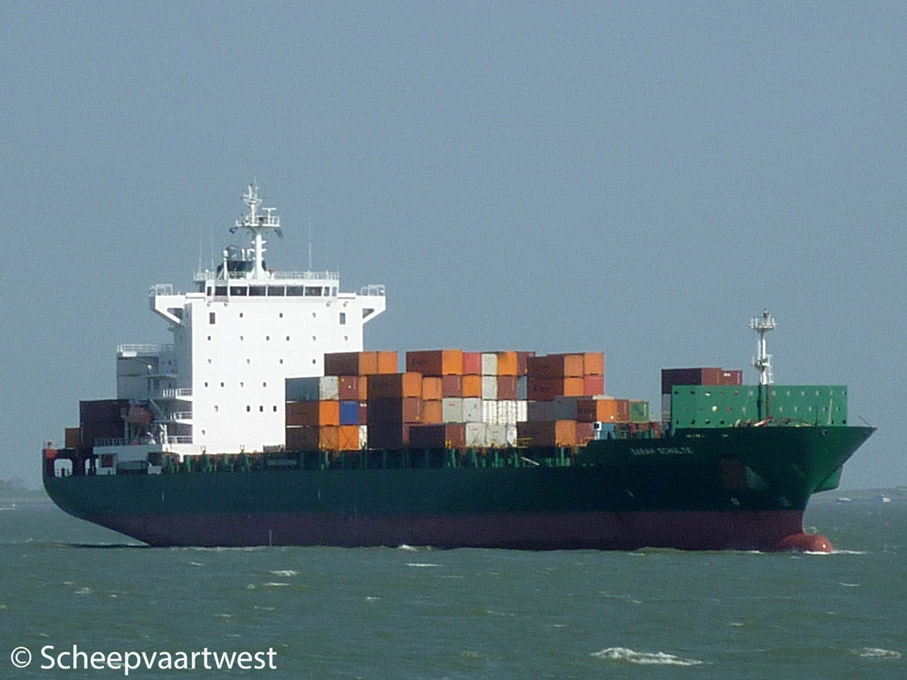

Sarah Schulte 01
Westerschelde 15 May 2012



Name

SARAH SCHULTE

Previous names

2005 - 01.04.2010 Ariake

Type

Cellular container vessel

IMO-number

9294159

Call sign

5BPA3

Previous call sign

DCAY2

Flag

Cyprus

Previous flags

Germany

Port of registry

Limassol

GT

28.592 t

DWT

39.383 t

NT

14.769 t

Number of 20ft containers

On deck: 1.798

In hold: 1.026

Total: 2.824

Container capacity 14t

2.030

Reefer capacity

On deck: 332

In hold: 254

Total:586

Length

222,14 m overall

212,18 m registered

Breadth

30,00 m registered

Draught

12,00 m

Forecastle

27,32 m

Freeboard

4.837 mm

Depth

16,80 m

Speed

24,0 knots

Built

2005

Keel laid

30.11.2004

Launch date

14.02.2005

Date of completion

12.04.2005

Builder

Hyundai Mipo Dockyard Co., Ltd.
1381, Bangeo-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

0341

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

1

Main engine

1x MAN-B&W 7K80MC-C - 2 stroke 7 cylinder 800 x 2.300 mm diesel engine - 25.270 kW at 104,0 rpm

Year of manufacture: 2004

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 8,83 bar

Heating surface: 35,0 m²

1x Steam boiler, exhaust gas heated - 8,83 bar

Heating surface: 654,0 m²

Year of manufacture: 2004

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)
40, Wongnam-dong
Changwon
Republic of Korea

Electric installation

4x Plants 440/230 V - 2.000 kVA

1x Plant 440 V - 187,5 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 8L28/32 main diesel generatorsets each 2.000 kVA / 1.600 kW

Emergency generator

1x Diesel generatorset 187,5 kVA

Batteries

2x Batteries for UPS radio each 200 Ah

Compressed air receivers

2x Receivers each 8.500 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

Bow thruster

1x Transverse thruster 1.100 kW, forward

Anchor equipment

3x Anchors weight each 9.900 kg

Chain length: 660,00 m

Handling gear

None

Crew size

25

Manager

Ocean Shipmanagement GmbH
Zürich Haus Domstr. 17
20095 Hamburg
Federal Republic of Germany

Owner

Reederei Thomas Schulte GmbH & Co. KG

Registered owner

MS "SARAH SCHULTE" Shipping GmbH & Co. KG
Domstr. 17 Zürich Haus
20095 Hamburg
Federal Republic of Germany

Last update

22.01.2013
