Westerschelde 04 March 2017 |
 |
 |
 |
 |
 |
 |
|||||
| Westerschelde 04/03/17 | Westerschelde 17/12/18 | Westerschelde 03/04/19 | Westerschelde 18/04/15 | Westerschelde 18/04/15 | Westerschelde 27/04/16 | |||||
|
Name |

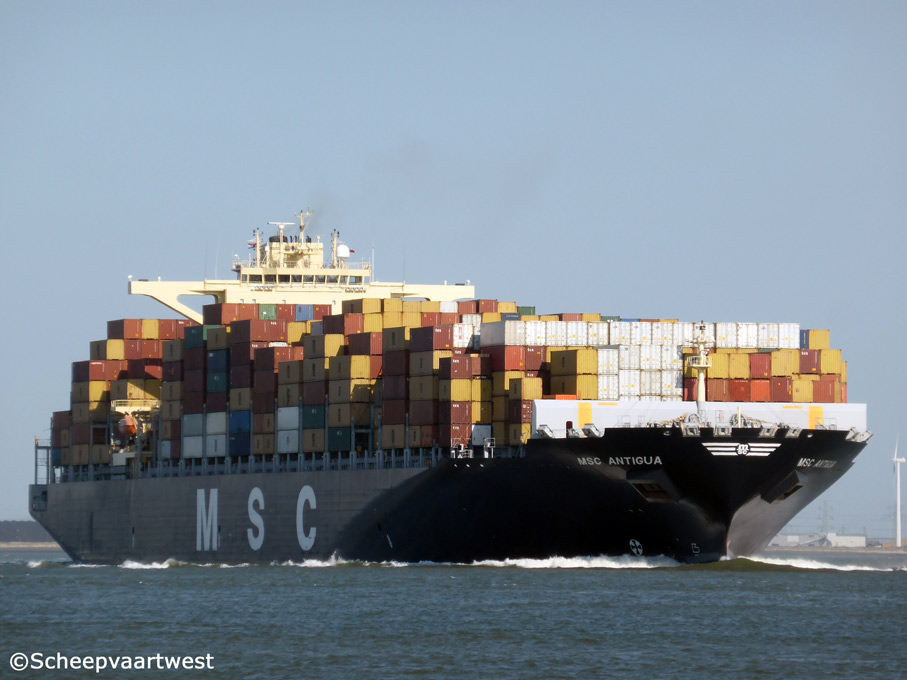

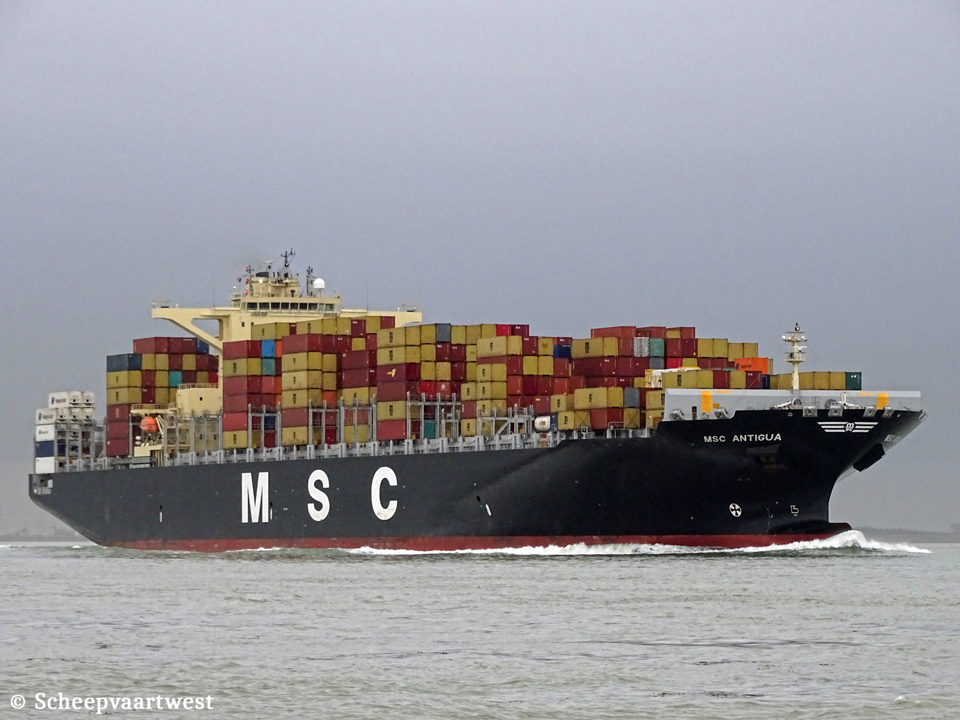

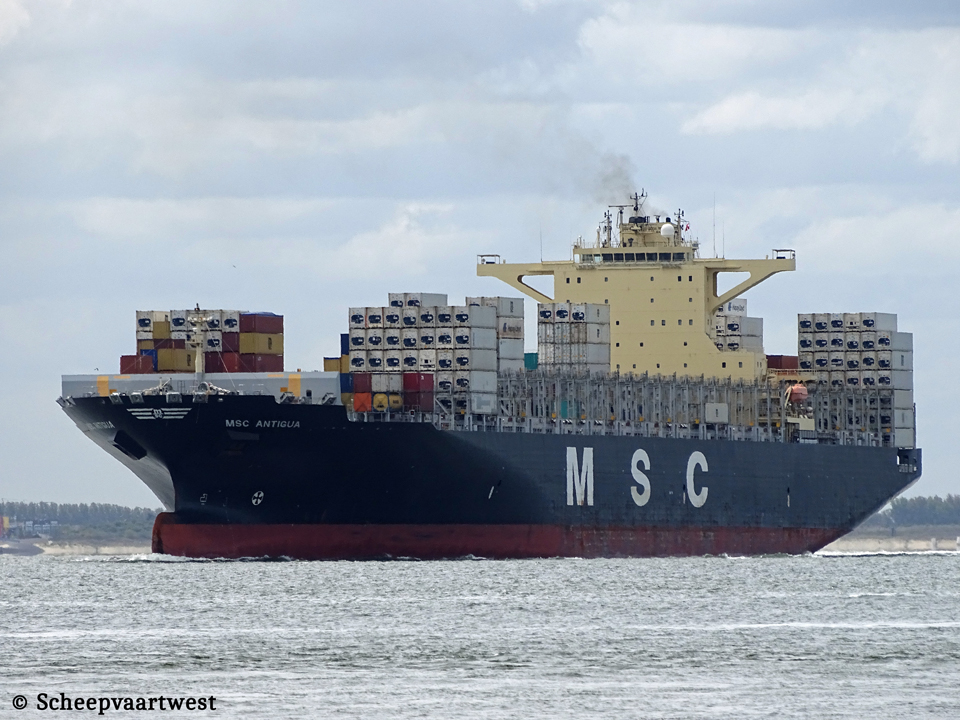

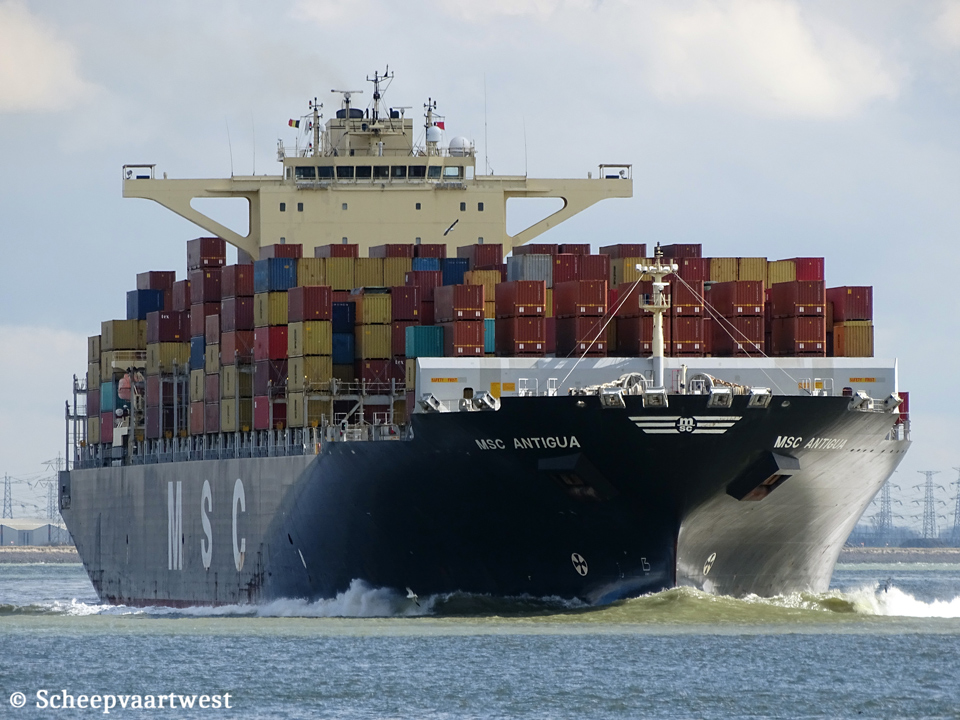

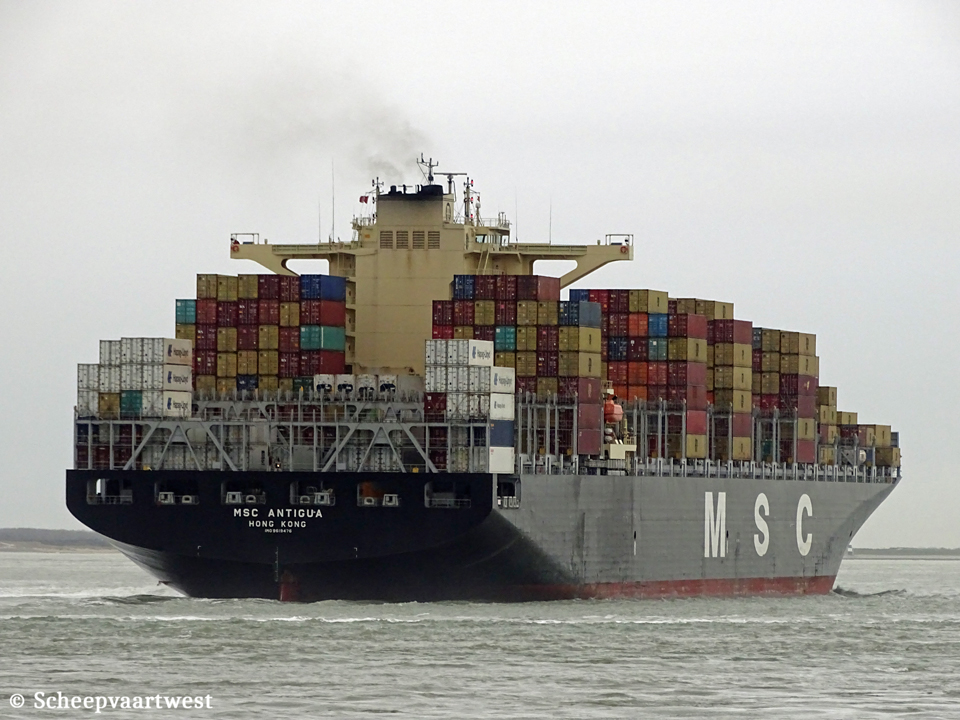

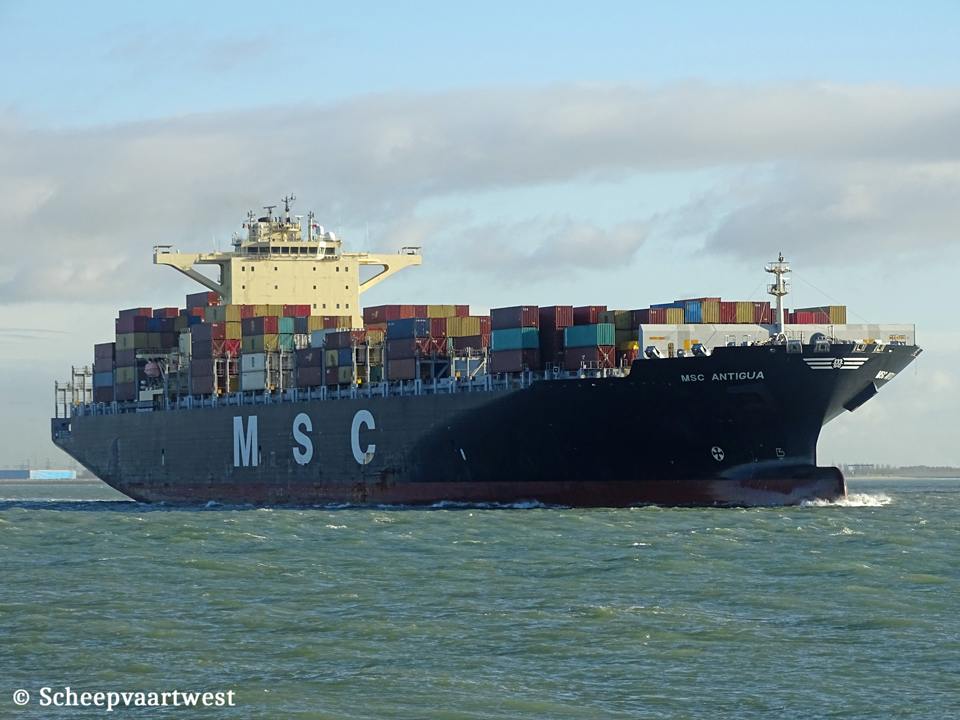

MSC ANTIGUA |
|
Previous names |
Julius Schulte |
|
Type |
Cellular containership |
|
IMO-number |
9619476 |
|
Call sign |
VRLC3 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
94.017 |
|
DWT |
Summer: 112.516 t |
|
NT |
51.548 |
|
Light displacement |
31.245 t |
|
Number of 20ft containers |
8.886 |
|
Reefer capacity |
1.000 |
|
Length |
299,18 m overall 280,28 m between perpendiculars |
|
Breadth |
48,20 m |
|
Draught |
14,52 m |
|
Reg. Dimensions L x B x D |
286,67 x 48,20 x 21,01 m |
|
Rule Dimensions L x B x D |
280,28 x 48,20 x 24,80 m |
|
Freeboard |
5.656 mm |
|
Depth |
21,01 m registered |
|
Speed |
22,0 knots |
|
Built |
2013 |
|
Keel laid |
06/08/2012 |
|
Launch date |
20/10/2012 |
|
Date of completion |
04/01/2013 |
|
Builder |
Hyundai Samho Heavy Industries Co. Ltd. Mokpo South Korea |
|
Yard number |
S595 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 9S90ME-C8.2 - 2 stroke single acting 9 cylinder 900 x 3.188 mm combustion engine 47.430 kW / 64.486 hp at 78,0 rpm Built: 06/2012 Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler - 9,0 kg/cm² Heating surface: 60,7 m² 1x Economizer EGE - 9,0 kg/cm² Heating surface: 767,0 m² Build: 05/2012 Builder: Kang Rim Ind. Co., Ltd., Changwon - South Korea |
|
Generators |
4x Generators - 4.480 kVA / 6.600 Volt |
|
Bow thruster |
1x 3.000 kW |
|
Number of hatches |
8 Hatch 1: 25,25 x 43,34 m Hatch 2: 25,25 x 43,34 m Hatch 3: 25,25 x 43,34 m Hatch 4: 25,25 x 43,34 m Hatch 5: 25,25 x 43,34 m Hatch 6: 25,25 x 43,34 m Hatch 7: 25,25 x 43,34 m Hatch 8: 37,50 x 43,34 m |
|
Tank capacities |
Fuel oil: 9.047,3 m³ Fresh water: 525,8 m³ Water ballast: 28.465,4 m³ |
|
Cargo gear |
Gearless |
|
Commercial manager |
Bernhard Schulte Shipmanagement(Hong Kong) Limited Hong Kong |
|
ISM manager |
Bernhard Schulte Shipmanagement (India) Private Limited Room 401, Olympia, Hiranandani Gardens, Powai Mumbai, 400076 India |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Woodland Hill Limited Care of Hanseatic Unity Chartering (HU) GmbH & Co KG Zirkusweg 3 20359 Hamburg Germany |
|
Latest data adjustment |
25 February 2023 |
