Westerschelde 20 September 2018 |
 |
| Westerschelde 20/09/18 |
|
Name |

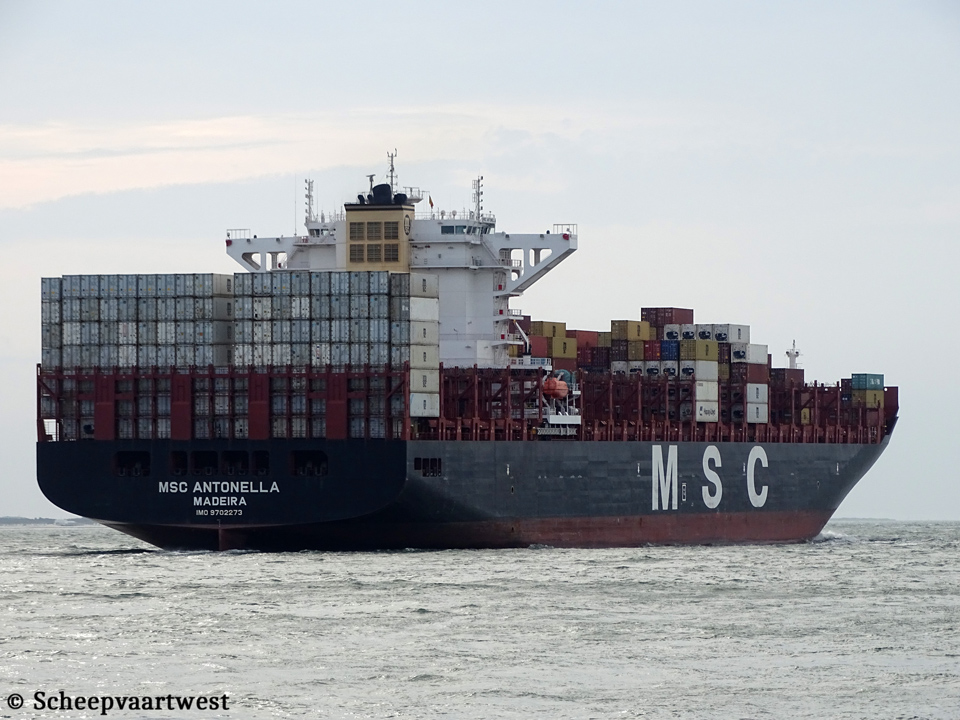

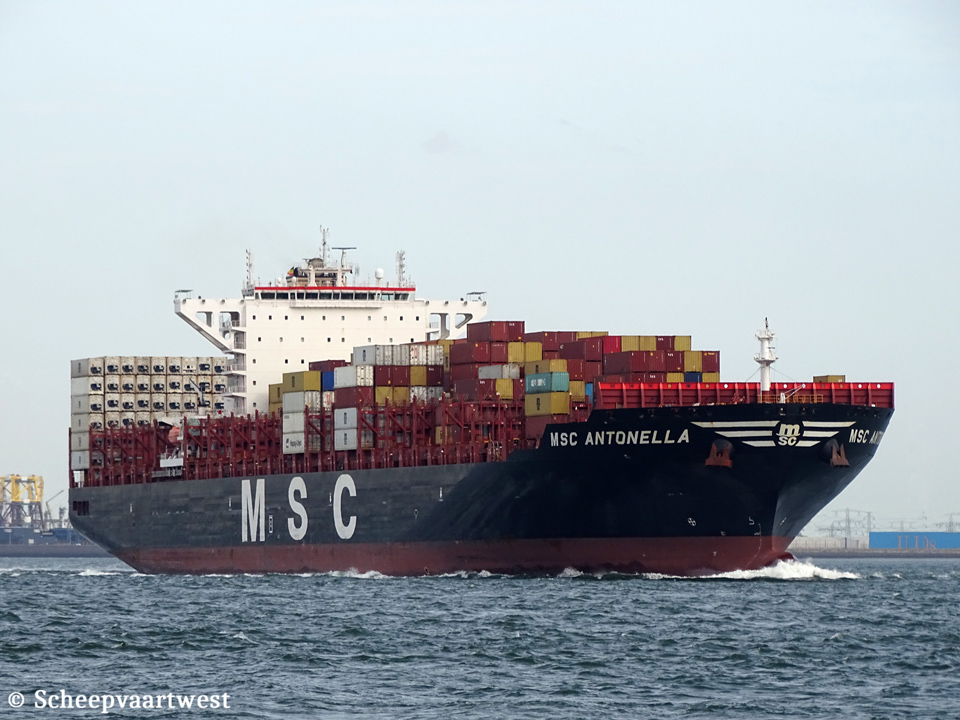

MSC ANTONELLA |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9702273 |
|
Call sign |
CQZF |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
GT |
96.331 t |
|
DWT |
110.800 t |
|
NT |
56.934 t |
|
Number of 20ft containers |
8.819 |
|
Container capacity 14t |
7.000 |
|
Reefer capacity |
1.462 |
|
Length |
299,92 m overall 285,89 m between perpendiculars |
|
Breadth |
48,22 m extreme |
|
Draught |
Summer: 14,50 m |
|
Depth |
24,60 m |
|
Speed |
Max: 22,0 knots |
|
Built |
2016 |
|
Keel laid |
23/06/2014 |
|
Launch date |
05/12/2015 |
|
Date of completion |
30/03/2016 |
|
Builder |
Dalian Shipbuilding Industry Co., Ltd. China |
|
Yard number |
C8800-8 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/MAN-B&W 9S90ME-C10.2 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine 47.430 kW / 64.486 hp at 78,0 rpm Builder: Hyundai Heavy Industries Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 78,0 rpm |
|
Boilers |
3x Auxiliary boiler, exhaust gas heated -Aalborg XS-2V (A/E) 1x Auxiliary boiler, oil/gas fired - Aalborg OS-TCI |
|
Generators |
2x MAN 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm diesel engines each 4.000 kW connected with generators each 3.900 kW 2x MAN 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm diesel engines each 4.500 kW connected with generators each 4.400 kW |
|
Emergency generator |
1x Scania DI16 075M diesel generatorset |
|
Bow thruster |
1x Tunnel thruster 3.000 kW / 4.079 bhp, forward |
|
Tank capacities |
Ballast: 31.701 m³ |
|
Anchor equipment |
Length: 774,20 m Diameter: 111 mm |
|
Cargo gear |
Gearless |
|
Crew size |
23 |
|
Manager |
MSC Shipmanagement Limited chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Registered owner |
Able Luck Global Ltd. Care of MSC Shipmanagement Limited chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
28 November 2020 |
