Westerschelde 15 July 2014 |
|
Name |

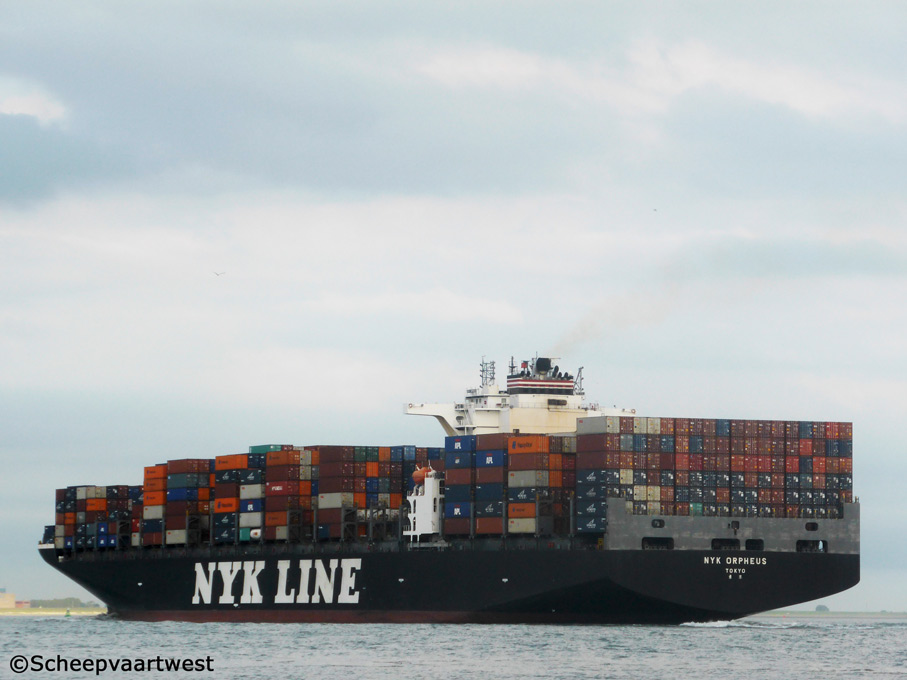

NYK ORPHEUS |
|
Type |
Cellular containership |
|
IMO-number |
9313008 |
|
Call sign |
7JDN |
|
Flag |
Japan |
|
Port of registry |
Tokyo |
|
GT |
99.543 t |
|
DWT |
Summer: 99.563 t |
|
NT |
25.697 t |
|
Number of 20ft containers |
9.040 |
|
Number of 40ft containers |
4.404 t |
|
Reefer capacity |
800 |
|
Length |
336,00 m overall |
|
Breadth |
45,80 m |
|
Draught |
Summer: 14,03 m |
|
Moulded L x B x D |
318,30 x 45,80 x 19,56 m |
|
Registered L x B x D |
326,56 x 45,80 x 24,40 m |
|
Freeboard |
5.574 mm |
|
Depth |
19,56 m moulded |
|
Speed |
Max.: 27,6 knots Service: 25,0 knots |
|
Built |
2008 |
|
Keel laid |
30.10.2007 |
|
Launch date |
28.03.2008 |
|
Date of completion |
30.06.2008 |
|
Builder |
IHI Marine United Inc. Kure Shipyard |
|
Yard number |
3229 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Kawasaki 12RT-Flex96C - 2 stroke single acting 12 cylinder 960 x 2.500 mm diesel engine - 65.201 kW at 100,3 rpm Manufacturer: Diesel United, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.050 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 10 bar Evaporation :13,00 t/h 1x Auxiliary exhaust gas boiler - 10,0 bar Evaporation: 23,40 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
6x Generators - 19.000 kVA |
|
Bow thruster |
1x 4.000 kW |
|
Tank capacities |
Fuel oil: 13.190 m³ Fresh water: 502 m² Water ballast: 25.542 m³ |
|
Cargo gear |
Gearless |
|
Manager |
NYK Shipmanagement Pte., Ltd. |
|
Operator |
NYK-Line |
|
Owner |
Nippon Yusen Kaisha |
|
Registered owner |
Eurydice Maritima Ltd. SMFL Demeter Co., Ltd. |
|
Latest data adjustment |
24 January 2015 |
