| Westerschelde 22 June 2017 |
|
Name |

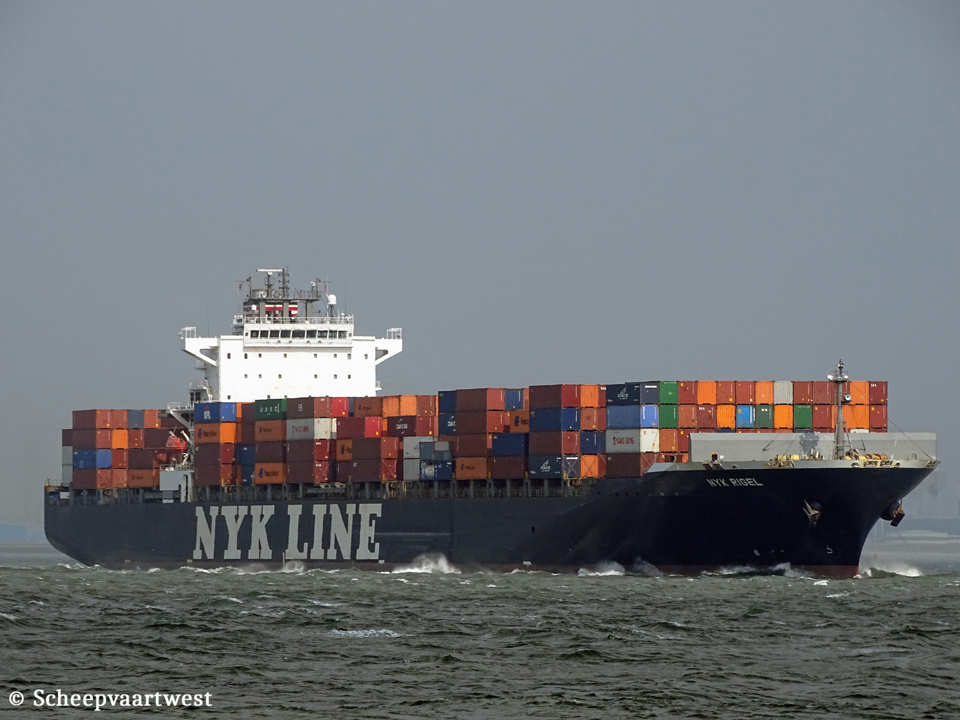

NYK RIGEL |
|
Type |
Cellular containership |
|
IMO-number |
9416977 |
|
Call sign |
3FNL8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
55.487 |
|
DWT |
66.051 t |
|
NT |
23.203 |
|
Number of 20ft containers |
4.888 |
|
Number of 40ft containers |
2.413 |
|
Container capacity 14t |
3.280 |
|
Reefer capacity |
330 |
|
Length |
294,12 m overall |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,52 m |
|
Moulded L x B x D |
283,20 x 32,20 x 21,80 m |
|
Registered L x B x D |
285,79 x 32,20 x 21,80 m |
|
Freeboard |
Summer: 3.867 t |
|
Depth |
21,80 m moulded |
|
Speed |
Max: 27,6 knots Service: 25,0 knots |
|
Build |
2009 |
|
Keel laid |
02/12/2008 |
|
Launch date |
21/02/2009 |
|
Date of completion |
15/07/2009 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Incheon South Korea |
|
Yard number |
S374 |
|
Hull material |
Steel |
|
Main engine |
1x Hyundai-MAN-B&W 9K98ME-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.390 / 69.870 hp kW at 104,0 rpm Manufacturer: Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x oil lubrication shaft with monitoring device Diameter: 880 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 10,28 t/h Manufacturer: Kang Rim Ind.Co.,Ltd. |
|
Generators |
5x Diesel generatorsets total 8.688 kVA |
|
Tank capacities |
Fuel oil: 6.999 m³ Fresh water: 456 m³ Water ballast: 17.028 m³ |
|
Cargo gear |
Gearless |
|
Manager |
NYK Shipmanagement Pte Ltd. Tokyo Japan |
|
Operator |
NYK Line - Nippon Yusen Kaisa Line |
|
Registered owner |
Bombon Shipholding S.A. |
|
Latest data adjustment |
04 December 2024 |
