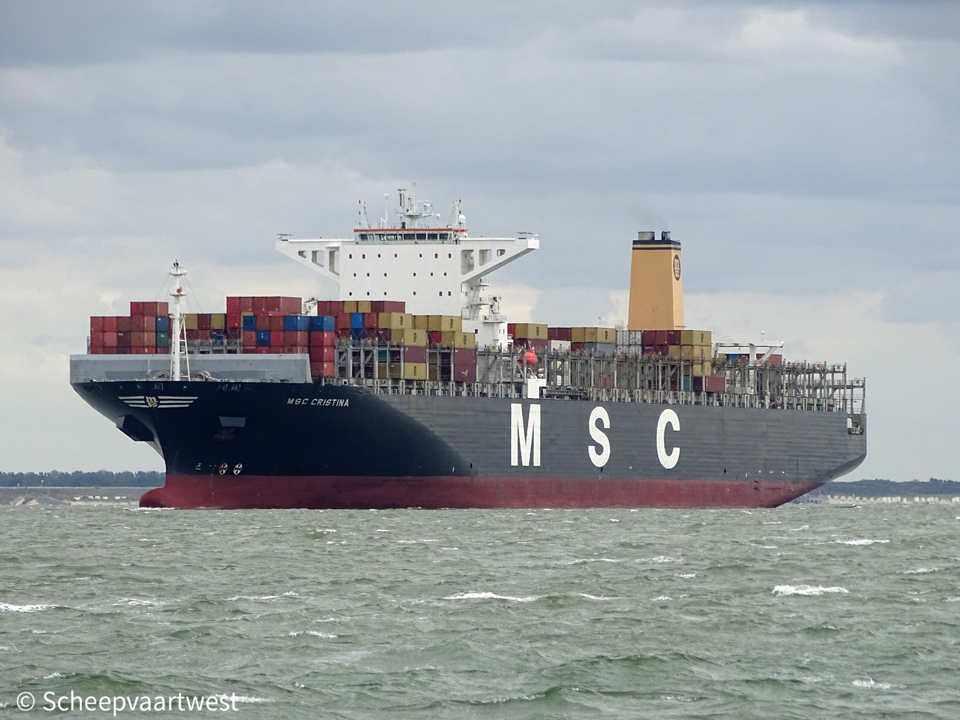

MSC Cristina 04

Westerschelde 27 August 2018

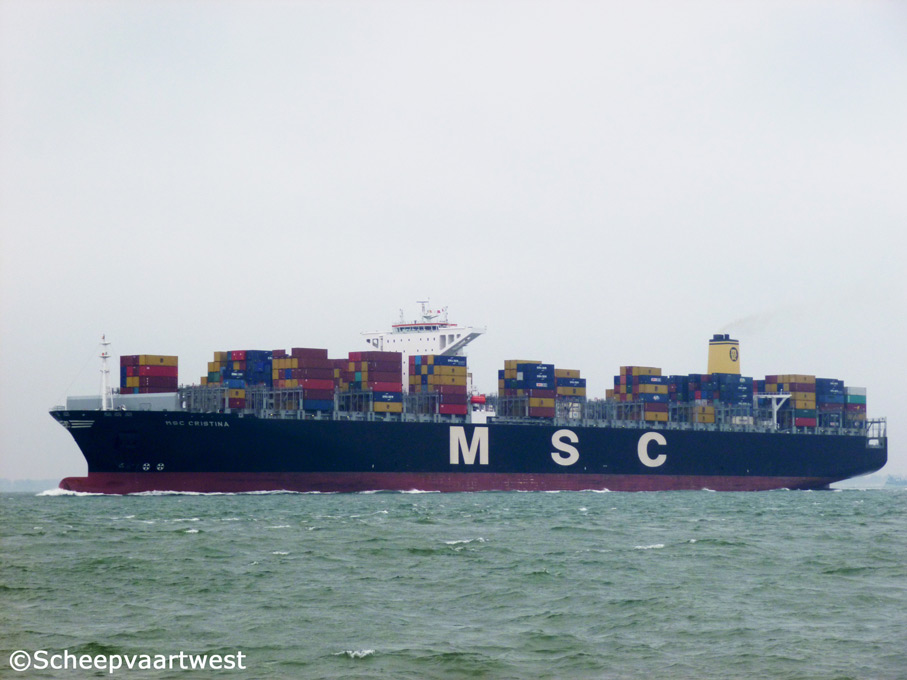

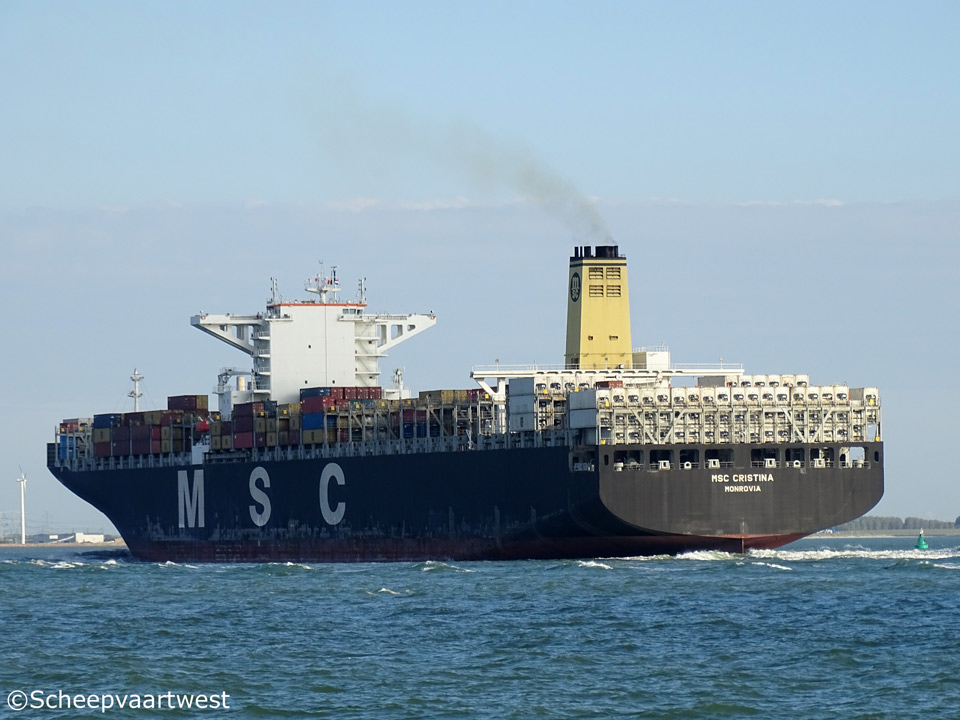

MSC Cristina 01   MSC Cristina 03
Westerschelde 14/10/13   Westerschelde 11/10/16



Name

MSC CRISTINA

Previous names

Launch as: 2011 E.R. Cristina

Type

Cellular containership

IMO-number

9465241

Call sign

D5BU7

Flag

Liberia

Port of registry

Monrovia

GT

141.635 t

DWT

Summer: 141.184 t

NT

63.825 t

Number of 20ft containers

13.102

Container capacity 14t

8.921

Reefer capacity

1.600

Length

366,36 m overall

352,83 m registered

Breadth

48,26 m extreme

Draught

15,50 m

Depth

29,85 m moulded

Speed

Max.: 24,7 knots

Built

2011

Keel laid

07/06/2011

Launch date

23/09/2011

Date of completion

20/12/2011

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan
Republic of Korea

Yard number

2154

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W/Hyundai 12K98MC-C - 2 stroke 12 cylinder 980 x 2.660 mm diesel engine - 72.240 kW at 97,0 rpm

Year of manufacture: 2011

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1000 Bangeojinsunhwan-doro Dong-gu
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 84,0 rpm

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 73,4 m²

1x Steam boiler, exhaust gas heated - 9,81 bar

Heating surface: 911,4 m²

Year of manufacture: 2011

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
Changwon, Kyongsang-namdo
Republic of Korea

Electric installations

4x Plants each 6.600 V - 4.426,7 kVA

1x Plant 450 V - 370 kVA

2x Plants each 12 V - 3 Ah

2x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

Generators

4x HHI HIMSEN 7H32/40 main diesel generatorsets each 4.426,7 kVA / 3.540 kW

Emergency generator

1x Scania DC 123 54A diesel generatorset 370 kVA

Batteries

12x Batteries for UPS navigation each 200 Ah

12x Batteries for UPS radio each 200 Ah

2x Batteries for start emergency engine each 200 Ah

2x Batteries for other purpose each 3 Ah

Compressed air receivers

2x Receivers each 16.000 litres - 32,4 bar

1x Receiver500 litres - 32,4 bar

1x Receiver300 litres - 7,7 bar

1x Receiver200 litres - 7,56 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Tank capacities

Ballast: 37.456,7 m³

Anchor equipment

3x Anchors weight each 24.500 kg

Chain Length: 770,00 m

Diameter: 122

Cargo gear

Gearless

Crew size

28

Manager

MSC Shipmanagement Ltd.

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Ocean Seagull Shipping Limited

Latest data adjustment

03 December 2018
