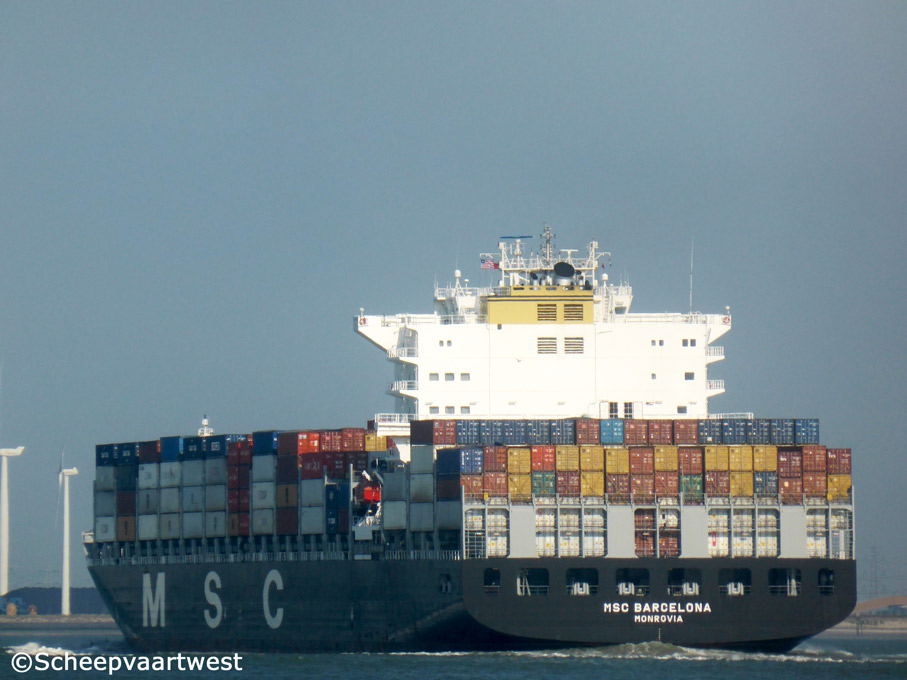

Westerschelde 13 May 2015 |
 |
|

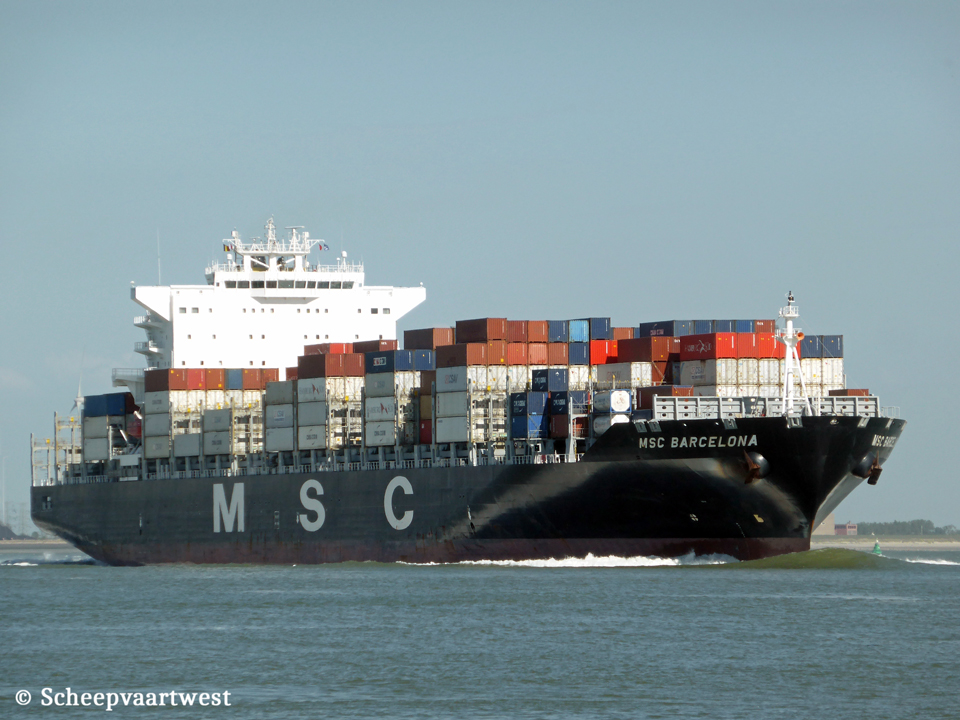

| Westerschelde 22/07/14 | |
|
Name |
MSC BARCELONA |
|
Previous names |
Launch as: CPO Barcelona |
|
Type |
Cellular containership |
|
IMO-number |
9480186 |
|
Call sign |
9HA5887 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flag |
2011 - 2023 Liberia, Monrovia - Call sign: A8ZU9 |
|
GT |
61.870 t |
|
DWT |
74.456 t |
|
NT |
35.409 t |
|
Light ship |
22.597 t |
|
Number of 20ft containers |
5.550 |
|
Container capacity 14t |
4.390 |
|
Reefer capacity |
600 |
|
Length |
270,28 m overall 257,40 m between perpendiculars 258,61 m registered |
|
Breadth |
40,00 m registered |
|
Draught |
13,50 m |
|
Depth |
21,70 m moulded |
|
Speed |
Service: 22,4 knots Max: 23,2 knots |
|
Built |
2011 |
|
Keel laid |
09/11/2010 |
|
Launch date |
20/03/2011 |
|
Date of completion |
16/09/2011 |
|
Builder |
Daewoo Mangalia Heavy Industries S.A. Strada Portului 1 905500 Mangalia, Constanta Romania |
|
Yard number |
4083 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/Doosan 7K98MC-C - 2 stroke 7 cylinder 980 x 2.400 mm combustion engine 42.140 kW / 57.294 hp at 104,0 rpm Year of manufacture: 2010 Manufacturer: Doosan Engine Co., Ltd. 18, Gongdanro21-gil, Sungsan-gu Changwon, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 29,6 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 471,0 m² Year of manufacture: 2010 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 450 V - 2.867 kVA 2x Plants each 450 V - 3.333 kVA 1x Plant 450 V - 438 kVA 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
2x Main diesel generatorsets each 3.333 kVA 2x Main diesel generatorsets each 2.867 kVA |
|
Emergency generator |
1x Diesel generatorset 438 kVA |
|
Batteries |
1x Battery for UPS navigation 300 Ah 1x Battery for UPS radio 200 Ah 1x Battery for start emergency engine 200 Ah |
|
Compressed air receivers |
2x Receivers each 13.500 litres - 33,0 bar 1x Receiver 400 litres - 33,0 bar 1x Receiver 2000 litres - 7,7 bar 1x Receiver 250 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 1.500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 16.100 kg Chain length: 742,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
30 |
|
Crew |
23 |
|
Commercial manager |
Reederei Claus-Peter Offen (GmbH & Co.) KG Bleichenbrücke 10 20354 Hamburg Federal Republic of Germany |
|
ISM manager |
CPO Containerschiffreederei Bleichenbruecke 10 20354 Hamburg Germany |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Kommanditgesellschaft MS "CPO BARCELONA" Offen Reederei GmbH & Co. Bleichenbrücke 10 20354 Hamburg Federal Republic of Germany |
|
Latest data adjustment |
31 July 2024 |
