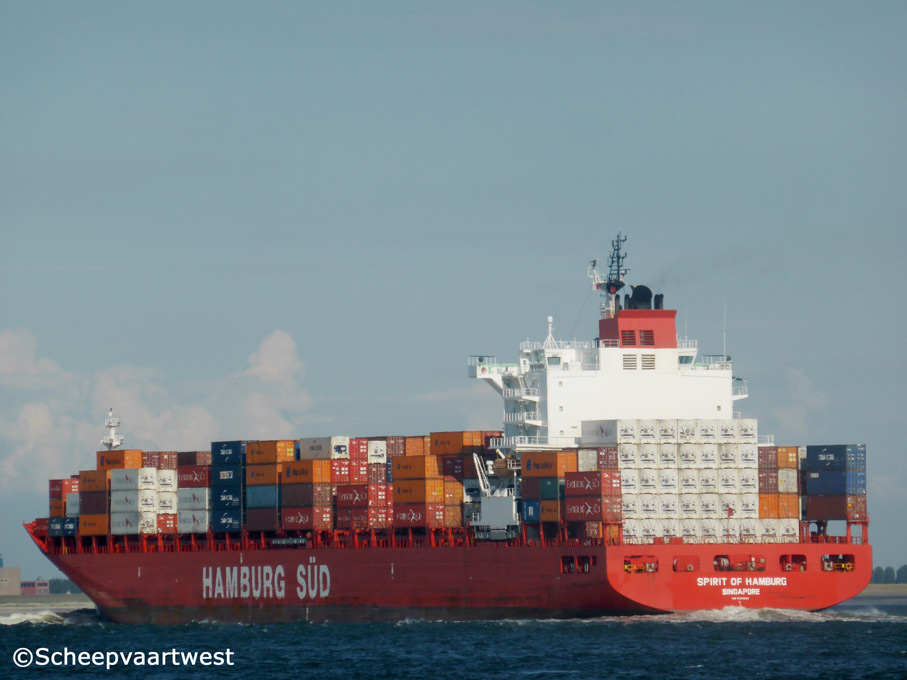

Spirit Of Hamburg 01

Westerschelde 24 June 2014



Name

SPIRIT OF HAMBURG

Previous names

2007 - 12.2013 Bahia Laura

Type

Cellular containership

IMO-number

9391660

Call sign

9V2497

Flag

Republic of Singapore

Port of registry

Singapore City

GT

41.483 t

DWT

Summer: 53.139 t

NT

23.894 t

Number of 20ft containers

3.630

Number of 40ft containers

610

Container capacity 14t

2.794

Reefer plugs

844

Length

254,07 m overall

242,80 m registered

Breadth

32,20 m registered

Draught

12,40 m

Forecastle

121,20 m

Bridge

109,20 m

Poop

12,00 m

Freeboard

2.992 mm

Depth

19,30 m moulded

Speed

21,5 knots

Built

2007

Keel laid

26.02.2007

Launch date

19.05.2007

Date of completion

12.07.2007

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard
3370, Geoje-daero
Geoje-si, Kyongsang-namdo
Republic of Korea

Yard number

4133

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W 8 S70MC-C (Mk8) - 2 stroke 8 cylinder 700 x 2.800 mm combustion engine - 26.160 kW at 91,0 rpm

Year of manufacture: 2007

Manufacturer: Doosan Engine Co., Ltd.
18, Gongdanro21-gil, Sungsan-gu
Changwon, Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller - aft at 91,0 rpm

Boilers

Steam boiler, oil fired - 9,0 bar

Heating surface: 35,4 m²

Steam boiler / exhaust gas heated - 9,0 bar

Heating surface: 628,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

4x Plants 450/230 V - 3.133,3 kVA

1x Plant 450 V - 313 kVA

1x Plant 24 V - 11 Ah

1x Plant 24 V - 80 Ah

1x Plant 24 V - 85 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x Main diesel generatorsets 3.133,3 kVA each

Emergency generator

1x Diesel generatorset 313 kVA

Batteries

1x Battery for UPS radio 300 Ah

1x Battery for UPS navigation 200 Ah

1x Battery for automation 85 Ah

1x Battery for start emergency engine 80 Ah

1x Battery for UPS navigation 11 Ah

Compressed air receivers

2x Receivers each 8.500 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 2.000 litres - 7,7 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Transverse thruster 1.300 kW, forward

Anchor equipment

3x Anchors weight each 11.700 kg

Chain length: 687,50 m

Cargo gear

Gearless

Crew size

30

Manager

Rickmers Shipmanagement (Singapore) Pte. Ltd.
8 Shenton Way 42-01 Axa Tower
Singapore
Republic of Singapore

Operator

Hamburg Süd
Willy-Brandt-Str. 59-65
20457 Hamburg
Germany

Registered owner

A.R. Fifth Navigation Pte. Ltd.
8 Shenton Way 42-01 Axa Tower
Singapore
Republic of Singapore

Latest data adjustment

20 July 2014
