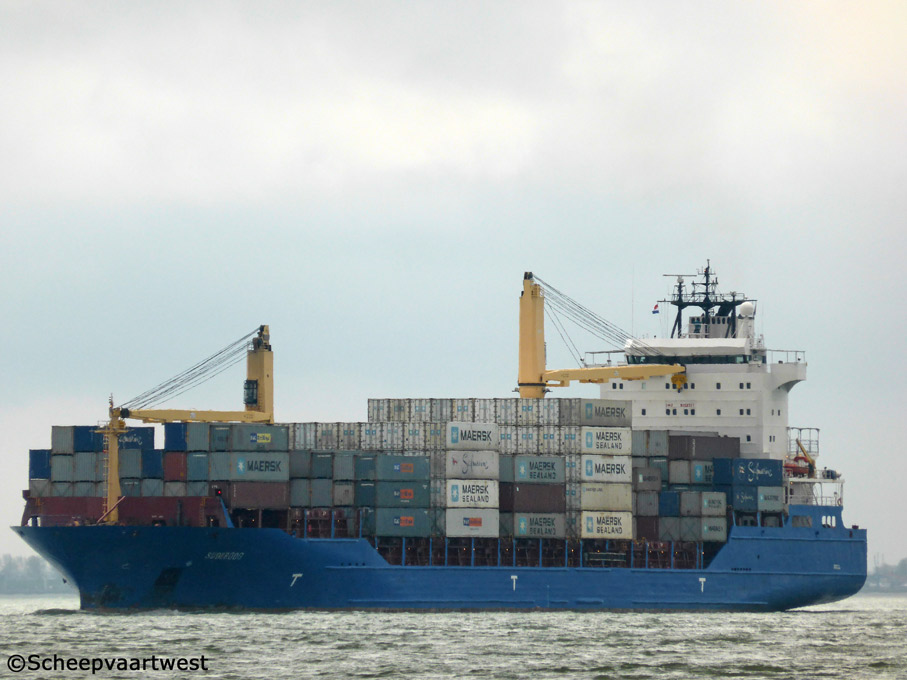

Süderoog 01

Westerschelde 06 April 2014

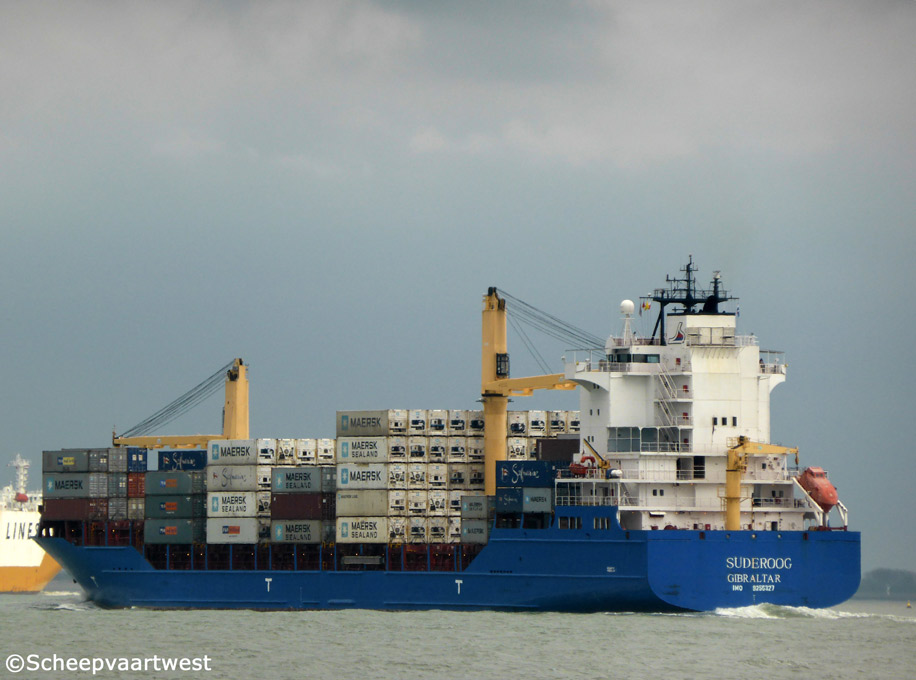

Süderoog 02
06/04/14



Name

SÜDEROOG

Previous names

2005 launch as: SYMS Bauhinia

Type

Cellular containership - Equipped for carriage of dangerous goods

IMO-number

9256327

Call sign

ZDHC8

Flag

Gibraltar

Port of registry

Gibraltar

GT

15.633 t

DWT

Summer: 16.939 t

NT

6.717 t

Number of 20ft containers

In hold: 492

On deck: 910

Total: 1.402

Number of 40ft containers

In hold: 230 + 42 TEU

On deck: 409 + 64 TEU

Total: 639 + 106 TEU

Container capacity 14t

870

Reefer plugs

In hold: 120

On deck: 130
Total: 250

Length

161,35 m overall

151,35 m registered

Breadth

25,00 m registered

Draught

9,90 m

Height above keel

50,20 m

Forecastle

23,91 m

Poop

24.16 m

Freeboard

4.015 mm

Depth

13,90 m moulded

Speed

19,0 knots

Built

2005

Keel laid

28.06.2002

Launch date

12.01.2005

Date of completion

20.12.2005

Builder

Shandong Province Weihai Shipyard

95 Haibin Road (N)

264200 Weihai, Shandong

People's Republic of China

Yard number

CZ043

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

1

Main engine

1x MAN B&W 6S60MC-C - 2 stroke 6 cylinder 600 x 2.400 mm combustion engine - 13.560 kW at 105,0 rpm

Year of manufacture: 2003

Manufacturer: Dalian Marine Diesel Co., Ltd.

1, Hai Fang Street Xigang District

Dalian,116021 Liaoning

People's Republic of China

Propellers

1x Solid propeller (Keyless) - aft at 105,0 rpm

Boilers

Steam boiler, oil fired - 9,0 bar

Heating surface: 19,0 m²

Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 349,0 m²

Year of manufacture: 2002

Manufacturer: Zhangjiagang Hailu Shazhou Boiler

17, Huangcheng Road South

Zhangjiagang, 215600 Jiangsu

People's Republic of China

Electric installations

3x Plants each 450/230 V - 1.200 kVA

1x Plant 450 V - 325 kVA

2x Plants each 24 V - 180 Ah

4x Plants each 24 V - 195 Ah

Generators

3x Main diesel generatorsets each 1.200 kVA / 960 kW

Emergency generator

1x Diesel generatorset 325 kVA

Batteries

2x Batteries for emergency lighting each 180 Ah

Compressed air receivers

2x Receivers each 6.000 litres - 33,0 bar

1x Receiver 320 litres - 30,0 bar

1x Receiver 320 litres - 10,0 bar

Bow thruster

1x Transverse thruster 800 kW, forward

Number of holds

4x Holds divided in 8 compartments

Hold 1: abt. 24,15 x 15,70 x 17,20 m, narrowing

Hold 2-6: abt. 12,48 x 20,70 x 14,30 m

Hold 7: 6,24 x 20,70 x 14,30 m

Hold capacity

947.814 ft³

Number of hatches

8x hatches with 14 hatchcovers

Hatches 1-2: abt. 6,24 x 15,70 m

Hatches 3-13: abt. 6,24 x 20,70 m

Hatches type

TTS pontoon type

Hatch covers are longitudinally divided for non-sequential opening and bay-wise operation also inside

holds; it is not necessary to empty complete deck to reach containers in hold

Hold ventilation

6x Air changes per hour

Tank capacities

IFO: 1.600 m³

MDO: 150 m³

Water ballast: 8.053 m³

Fresh water: 272,6 m³

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

2 x Mac Gregor single deck container cranes
No. 1: SWL 45,0 t / 26,00 m; 40,0 t / 29,00 m

No. 2: SWL 45,0 t / 31,00 m; 40,0 t / 35,00 m

Accommodation

20 persons, 20 cabins

Manager

Briese Schiffahrts GmbH & Co. KG

Hafenstr. 12

26789 Leer

Federal Republic of Germany

Registered owner

Briese Schiffahrts GmbH & Co. KG MS "SÜDEROOG"

Hafenstr. 12

26789 Leer

Federal Republic of Germany

Latest data adjustment

29 April 2014
