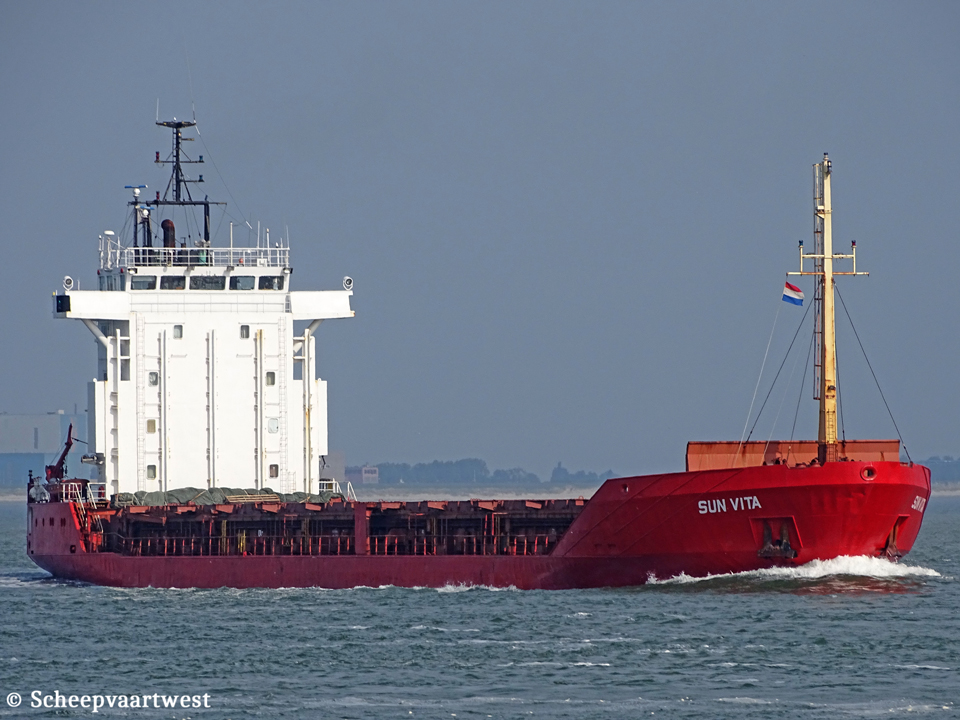

Westerschelde 06 May 2017 |
 |
 |
 |
 |
|||

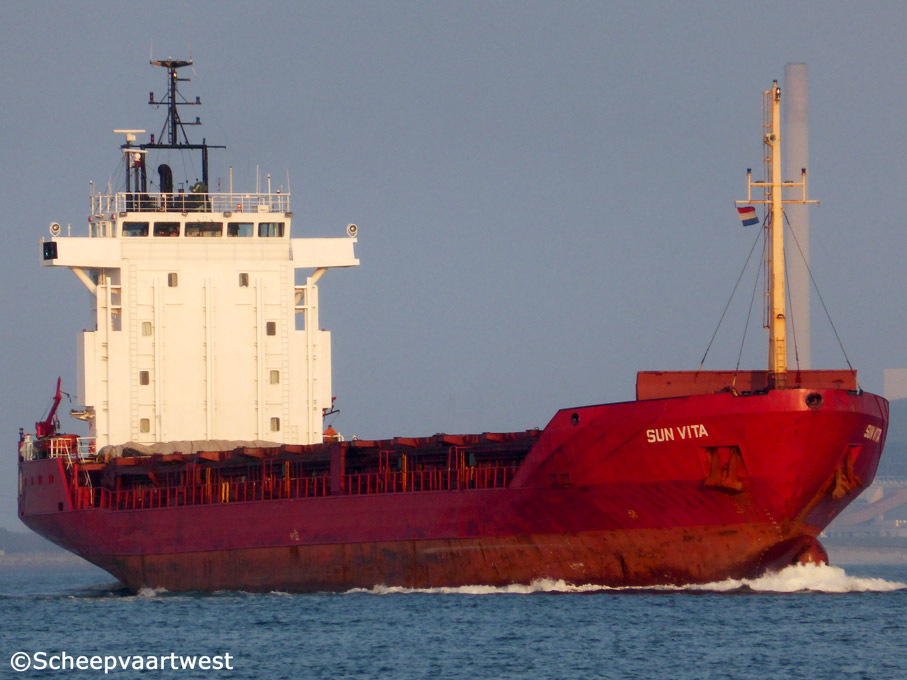

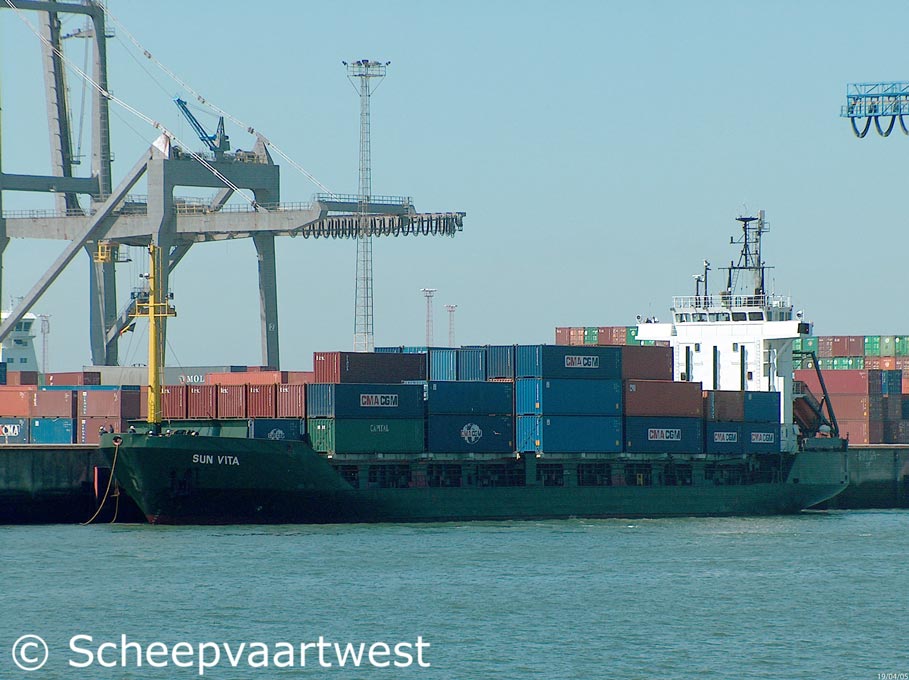

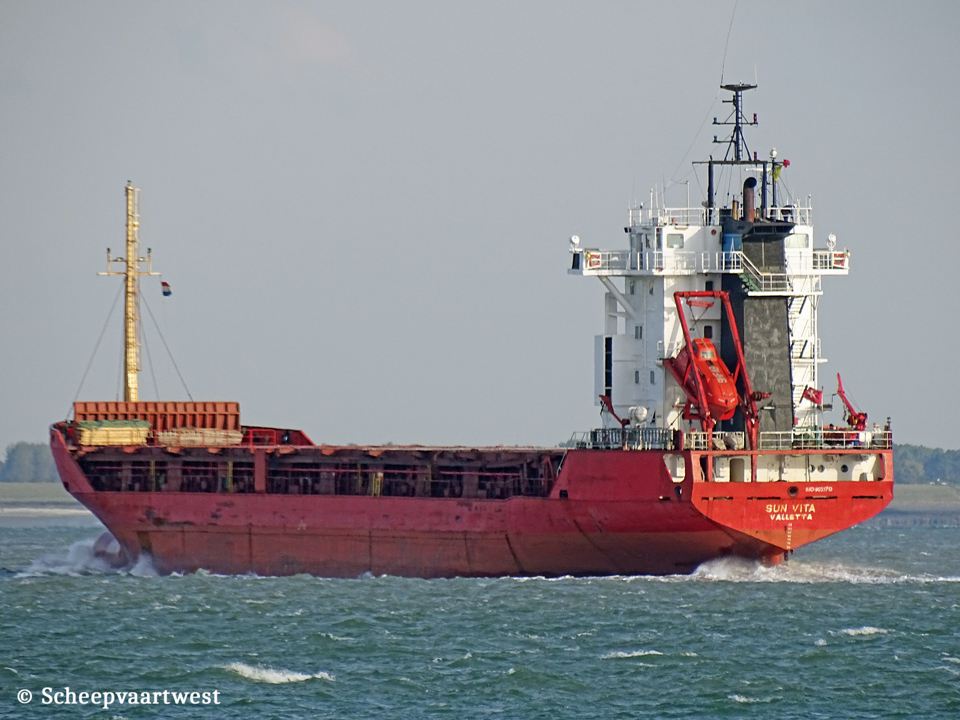

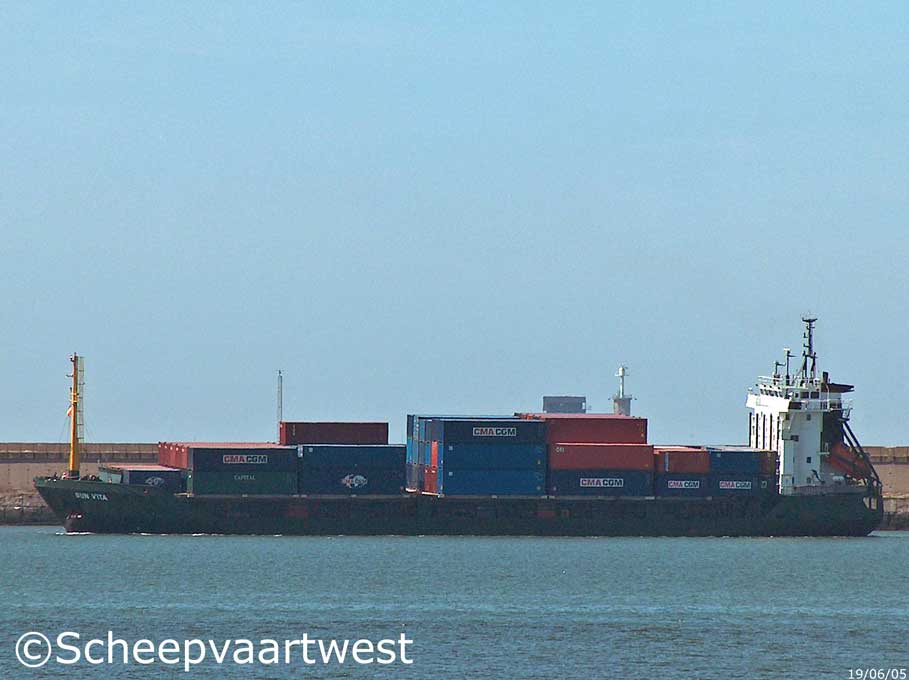

| Westerschelde 13/09/14 | Zeebrugge 19/06/05 | Zeebrugge 19/04/05 | Westerschelde 15/10/16 | |||
|
Name |
SUN VITA |
|
Previous names |
1991 - 1994 Iduna 1994 - 1995 CMB Iduna 1995 - 2005 Iduna 2005 - 2006 Sun Vita 2006 - 2008 Spirit of Foynes |
|
Type |
Containership |
|
IMO-number |
9033713 |
|
Call sign |
9HFA8 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
3.585 t |
|
DWT |
4.150 t |
|
NT |
1.715 t |
|
Number of 20ft containers |
325 |
|
Reefer plugs |
50 |
|
Length |
98,80 m overall 91,61 m registered |
|
Breadth |
16,20 m registered |
|
Draught |
Summer: 5,40 m |
|
Forecastle |
8,00 m |
|
Freeboard |
2.400 mm |
|
Depth |
7,80 m moulded |
|
Speed |
14,6 knots |
|
Line |
CMA CGM Irish Sea Feeder |
|
Built |
1991 |
|
Keel laid |
16/05/1991 |
|
Launch date |
15/11/1991 |
|
Date of completion |
19/12/1991 |
|
Builder |
Schiffswerft und Maschinenfabrik Cassens GmbH II. Hafeneinschnitt 26723 Emden Federal Republic of Germany |
|
Yard number |
0192 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom, (E.G. Interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x MaK 8M453 C - 4 stroke single acting 8 cylinder 320 x 420 mm combustion engine 1.798 kW / 2.445 hp at 600 rpm Year of manufacture: 1991 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Number of screws |
1x Controllable pitch propeller - aft at 198 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 17,5 m² 1xThermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 57,8 m² Year of manufacture: 1991 Manufacturer: WSA Wärmetechnik GmbH Werner-von-Siemens-Str. 96 76694 Forst/Baden Federal Republic of Germany |
|
Electric installations |
2x Plants each 400/220 V - 288 kVA 1x Plant400 V - 625 kVA 1x Plant400 V - 97 kVA |
|
Shaft generator |
1x 625 kVA / 500 kW |
|
Generators |
2x Main diesel generatorsets each 288 kVA / 230,4 kW |
|
Emergency generator |
1x Diesel generatorset 97 kVA |
|
Compressed air receivers |
2x Receivers each 710 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 275 kW, forward |
|
Number of holds |
1 |
|
Hold capacity |
Grain/bale: 6.000 m³ |
|
Tank capacities |
Ballast water: 2.004 m³ |
|
Number of hatches |
2 |
|
Anchor equipment |
3x Anchors weight each 2.850 kg Chain length: 495,00 m |
|
Crew size |
12 |
|
Manager |
Alpha Shipping Company SIA 7, Visbijas prospekts 1014 Riga Latvia |
|
Operator |
Alpha Shipping Company SIA Visbijas prosp. 7 Riga LV-1014 Latvia |
|
Owner |
Leo Marine Company Ltd. 18/2, South Street Valletta VLT 11 Republic of Malta |
|
Renamed |
10/2019 Swimmer Republic of Panama, Panama City - Call sign: 3EDQ9 Manager: Unimar Shipping Management, Damietta - Egypt Owner: Swimmer Marine Shipping Inc. |
|
Latest data adjustment |
22 October 2014 |
