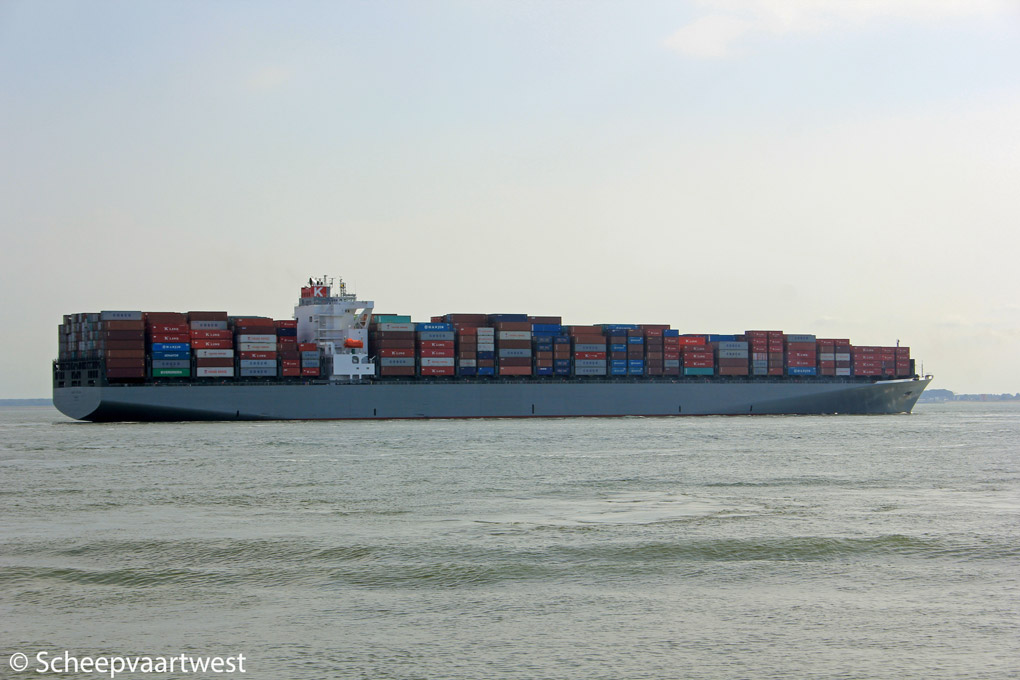

| Westerschelde 06 August 2013 |
 |

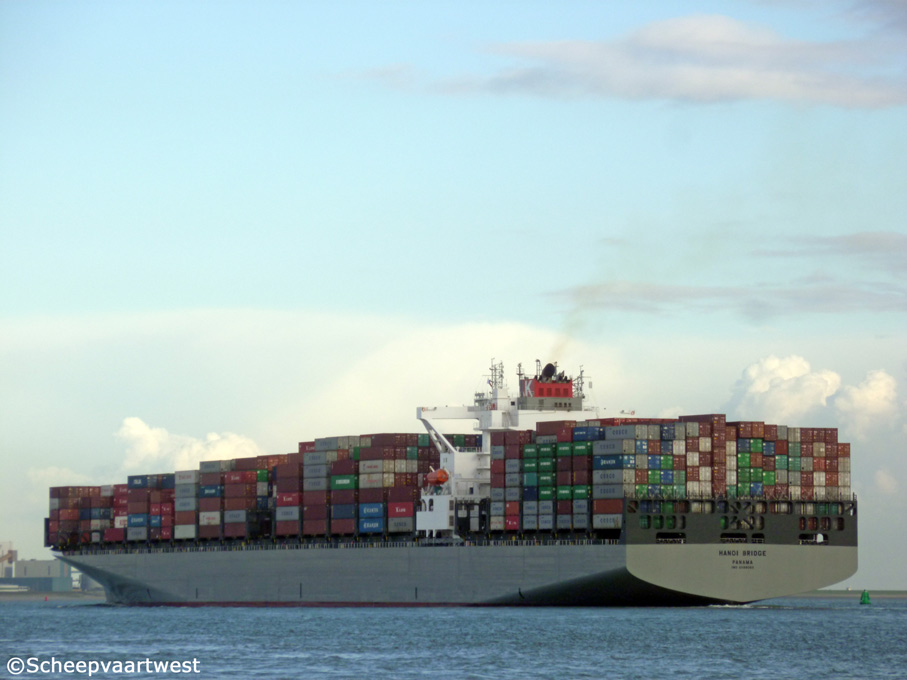

| Westerschelde 13/03/14 |
|
Name |
HANOI BRIDGE |
|
Type |
Cellular containership |
|
IMO-number |
9588093 |
|
Call sign |
3FHS3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
96.790 t |
|
DWT |
96.980 t |
|
NT |
36.689 t |
|
Number of 20ft containers |
8.974 |
|
Reefer capacity |
800 |
|
Length |
334,55 m overall |
|
Breadth |
46,60 m |
|
Draught |
14,04 m |
|
Moulded L x B x D |
319,50 x 45,60 x 19,38 m |
|
Registered L x B x D |
324,17 x 45,60 x 24,40 m |
|
Freeboard |
5.394 mm |
|
Depth |
19,38 m moulded |
|
Speed |
Max.: 26,2 knots |
|
Built |
2013 |
|
Keel laid |
27.12.2010 |
|
Launch date |
21.09.2012 |
|
Date of completion |
26.03.2013 |
|
Builder |
Japan Marine United Corporation, Kure Shipyard |
|
Yard number |
3290 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 9K98MC - 2 stroke single acting 9 cylinder 980 x 2.660 mm combustion engine - 51.480 kW at 94,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 998 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,9 bar Evaporation: 15,00 t/h 1x Exhaust gas boiler - 9,9 bar Evaporation: 16,10 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
6x Diesel generatorsets - 17.000 kVA |
|
Tank capacities |
Fuel oil: 11.224 m³ Fresh water: 481 m³ Water ballast: 23.108 m³ |
|
Cargo gear |
Gearless |
|
Manager |
K-Line Ship Management (Singapore) Pte, Ltd. |
|
Operator |
K-Line |
|
Registered owner |
KLB3290 Shipping S.A. |
|
Last data update |
24 December 2013 |
