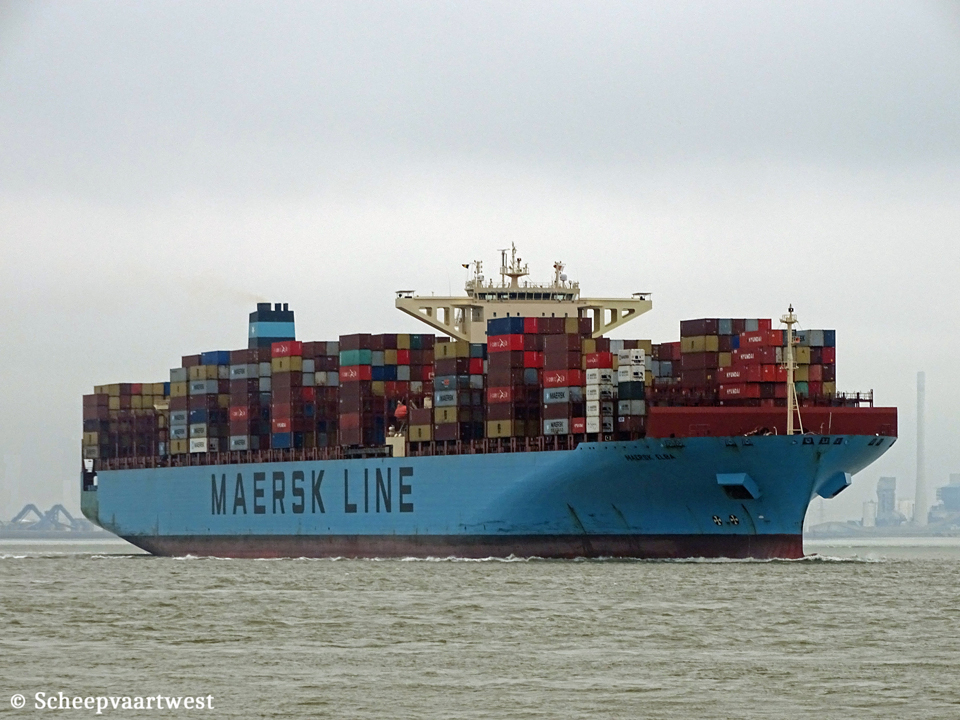

| Westerschelde 10 January 2018 | |
|
Name |
MAERSK ELBA |
|
Previous names |
Launch as: Scorpio Rickmers |
|
Type |
Cellular containership |
|
IMO-number |
9458078 |
|
Call sign |
OYHL2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
02/2011 - 07/2019 Marshall Islands, Majuro - Call sign: V7RT6 |
|
GT |
141.716 |
|
DWT |
148.723 t |
|
NT |
63.729 t |
|
Number of 20ft containers |
13.092 |
|
Reefer points |
800 |
|
Length |
366,44 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded 48,26 m extreme |
|
Draught |
Summer: 16,0 m |
|
Depth |
29,85 m |
|
Speed |
Max: 24,7 knots |
|
Build |
2011 |
|
Keel laid |
12/10/2010 |
|
Date of completion |
10/03/2011 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Yard number |
H2171 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI/Wärtsilä 12RT-Flex96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW / 93.323 bhp at 102,0 rpm Build: 2011 Builder: Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 73,4 m² 1x Steam boiler, exhaust gas heated - 12,0 bar Heating surface: 484,0 m Build: 2011 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) |
|
Shaft generator |
4x Main diesel generatorsets each 2.700 kW |
|
Generators |
1x Diesel generatorset 300 kW |
|
Batteries |
12x Batteries for UPS navigation each 300 Ah 12x Batteries for UPS radio each 200 Ah 1x Battery for automation 12 Ah 2x Batteries for Start emergency engine each 7 Ah |
|
Compressed air receivers |
2x Receivers each16.800 litres - 29,4 bar 1x Receiver 480 litres - 29,4 bar 1x Receiver 300 litres - 8,8 bar 1x Receiver 2.000 litres - 8,6 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Cargo gear |
Gearless |
|
Manager |
c/o Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Registered owner |
FPG Shipholding Marshall 6 Co. Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Latest data adjustment |
05 November 2024 |
