Name |

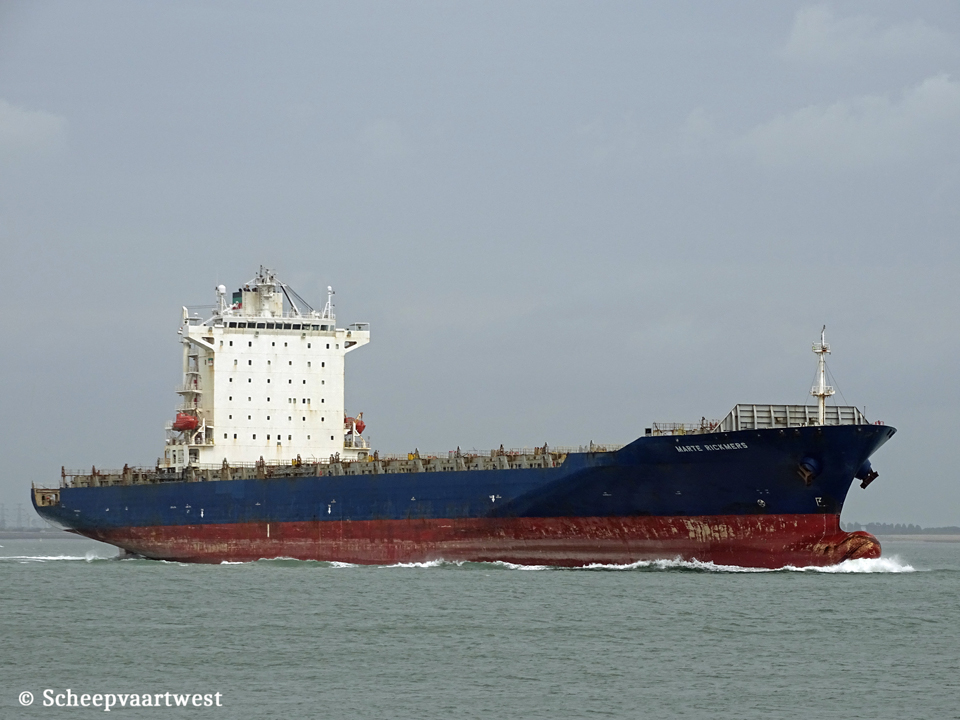

MARTE RICKMERS |
|
Previous names |
2007 - 2007 Marte Rickmers 2007 - 2017 CMA CGM Azure |
|
Type |
Cellular containership - Handysize Panamax |
|
IMO-number |
9324851 |
|
Flag |
Marshall Island |
|
Port of registry |
Majuro |
|
Prevision flags |
04/2009 - 07/2017 Republic of Singapore - Singapore City - Call sign: 9V8055 |
|
GT |
39.906 Suez: 41.504 |
|
DWT |
Summer: 50.629 t |
|
NT |
24.504 Suez: 24.898 |
|
Number of 20ft containers |
In hold: 1.586 On deck: 2.664 Total: 4.250 |
|
Container capacity 14t |
2.805 |
|
Reefer capacity |
400 |
|
Length |
260,05 m overall 246,04 m between perpendiculars |
|
Breadth |
32,30 m extreme 32.25 m moulded |
|
Draught |
12,60 m |
|
Keel to mast end |
54,93 m |
|
Depth |
19,30 m |
|
Speed |
Max: 24,5 knots |
|
Built |
2007 |
|
Keel laid |
30/09/2006 |
|
Launch date |
18/04/2007 |
|
Date of completion |
11/07/2007 |
|
Builder |
Dalian Shipbuilding Industry Co., Ltd. China |
|
Yard number |
CS 4250-3 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Doosan 8K90MC-C - 2 stroke single acting 8 cylinder 900 x 2.300 mm combustion engine 36.560 kW/ 49.707 hp at 104,0 rpm Builder: Doosan Engine Co Ltd - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite Mission OC |
|
Generators |
4x MAN SXD 9L21/31 - 4 stroke 9 cylinder 210 x 310 mm diesel engines each 1.800 kW connected with generators each 1.700 kW / 450 Volt 60 Hz |
|
Emergency generator |
1x Sisu 645 DSBAG diesel generatorset 200 kW |
|
Bow thruster |
1x 1.600 kW / 2.175 bhp, forward |
|
Tank capacities |
Ballast: 11.665,1 m³ |
|
Lifting equipment |
Length: 687,50 m Diameter: 87 mm |
|
Cargo gear |
Gearless |
|
Manager |
Rickmers Shipmanagement |
|
Owner |
Marte Rickmers Navigation Ltd. |
|
Renamed |
07/2017 Navios Azure Marshall Islands, Majuro - Call sign: V7WK3
|
|
Latest data adjustment |
28 August 2025 |
