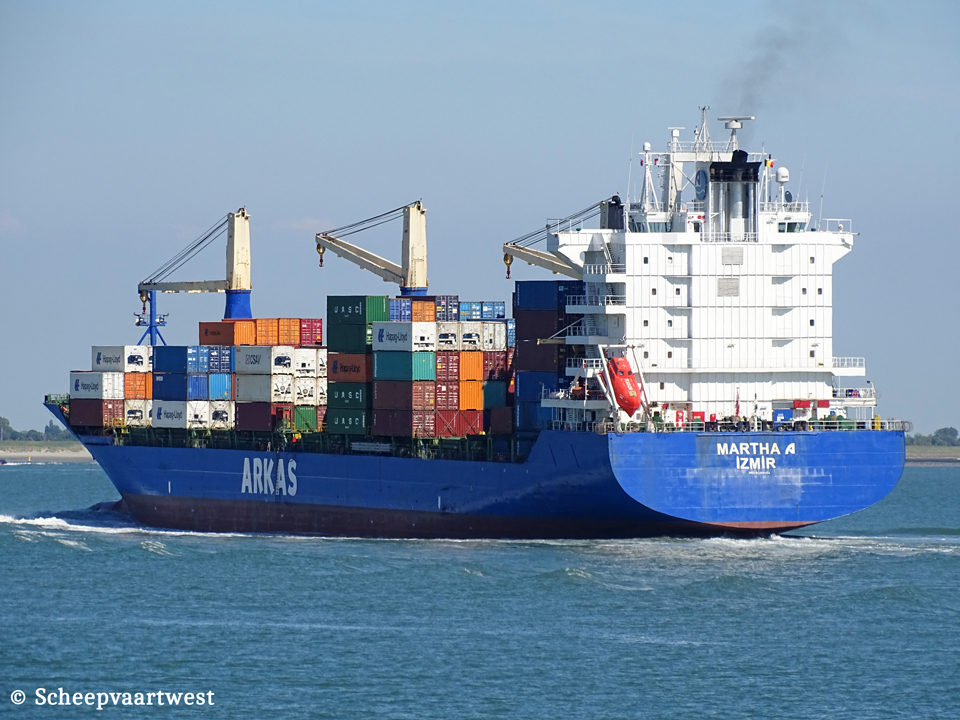

| Westerschelde 13 July 2020 |
|
Name |
MARTHA A |
|
Previous names |
Launch as: 2005 Jula S. 2005 - 2010 CSAV Tianjin 2010 - 2015 Jula S. 2015 - 2017 Martha A 2017 - 2018 Turkon Egypt |
|
Type |
Cellular containership |
|
IMO-number |
9299484 |
|
Call sign |
TCA3420 |
|
Flag |
Turkey |
|
Port of registry |
Izmir |
|
Previous flags |
2005 Germany - Call sign: DDIU 2012 Antigua and Barbuda, St. John’s - Call sign: V2GD3 2015 Germany |
|
GT |
25.414 t |
|
DWT |
33.796 t |
|
NT |
12.591 t |
|
Number of 20ft containers |
On deck: 1.482 In hold: 992 Total: 2.474 |
|
Container capacity 14t |
1.890 |
|
Reefer capacity |
On deck: 320 In hold: 100 Total: 420 |
|
Length |
207,40 m overall 195,40 m between perpendiculars |
|
Breadth |
29,87 m extreme |
|
Draught |
Summer: 11,4 knots |
|
Freeboard |
5.035 mm |
|
Depth |
16,40 m |
|
Speed |
Service: 21,0 knots Max: 22,3 knots |
|
Built |
2005 |
|
Keel laid |
26/10/2004 |
|
Launch date |
11/02/2005 |
|
Date of completion |
24/03/2005 |
|
Builder |
Volkswerft Stralsund GmbH Stralsund Germany |
|
Yard number |
454 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Single hull double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN 7L70MC - 2 stroke 7 cylinder combustion engine 20.638 kW / 28.059 bhp at 110,0 rpm Starter type: compressed air direct |
|
Propellers |
1x Solid propeller (keyless) |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 40,0 m² Heating surface: 485,0 m² |
|
Electric installations |
1x Plant 440/230 V - 1.620 kVA 2x Plant 440/230 V - 2.430 kVA 1x Plant 440 V - 220 kVA 1x Plant 24 V - 7 Ah 1x Plant 24 V - 125 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 180 Ah |
|
Generators |
2x MAN-B&W 9L28/32H main diesel generatorsets each 2.430 kVA 1x MAN-B&W 6L28/32H Diesel generatorset 1.620 kVA |
|
Emergency generator |
1x MAN D2866 TE diesel generatorset 220 kVA |
|
Batteries |
2x Batteries for UPS navigation each 180 Ah 2x Batteries for start emergency engine each 135 Ah 2x Batteries for automation each 125 Ah 1x Battery for UPS navigation 7 Ah |
|
Compressed air receivers |
2x Receivers each 6.500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 1.100 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
Hold 1: 5.540,0 m³ Hold 2: 9.571,0 m³ Hold 3: 10.710,0 m³ Hold 4: 11.227,0 m³ Hold 5: 9.977,3 m³ Total: 46.997,0 m³ |
|
Hold ventilation |
2x Times/h per hold |
|
Number of hatches |
10 |
|
Hatch type |
Pontoon hatch covers |
|
Tank capacities |
Water ballast: 9.259,9 m³ Fuel: 2.868 m³ |
|
Anchor equipment |
3x Anchors weight each 9.300 kg Chain length: 662,00 m Diameter: 76 mm |
|
Cargo gear |
3x Liebherr electric-hydraulic cranes - SWL each 45,0 t |
|
Manager |
Arkas Shipping & Transport AS, Sisli (Arkas Denizcilik ve Nakliyat A.S) Istanbul Turkey |
|
Registered owner |
Limar Liman ve Gemi Isletmeleri A.S. Care of Arkas Shipping & Transport AS, Sisli Istanbul Turkey |
|
Latest data adjustment |
25 March 2023 |
