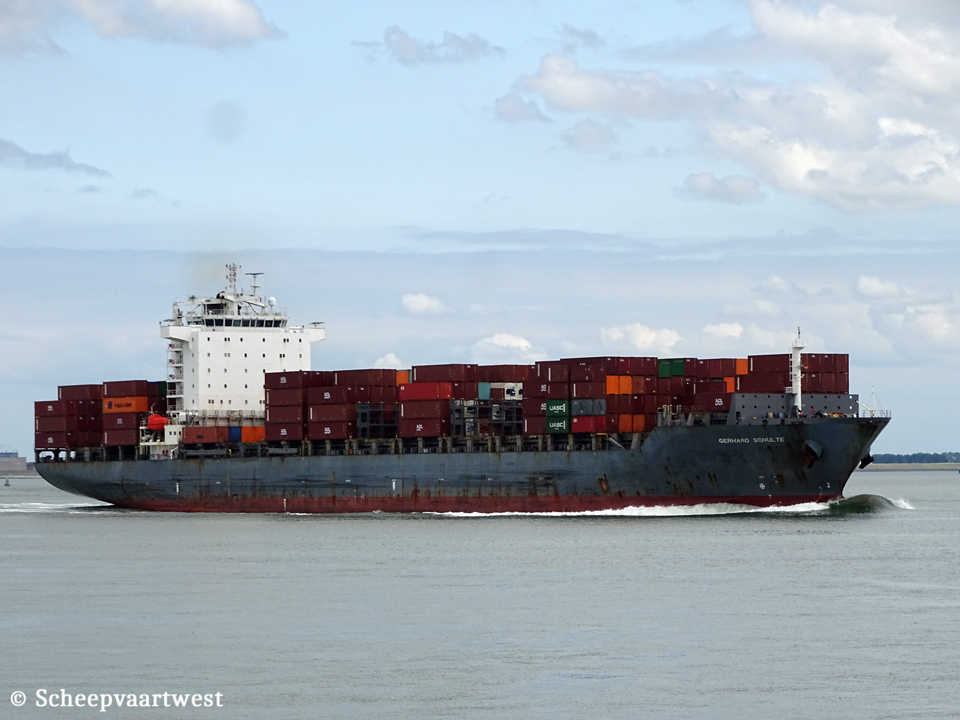

| Westerschelde 03 August 2019 |
 |
|

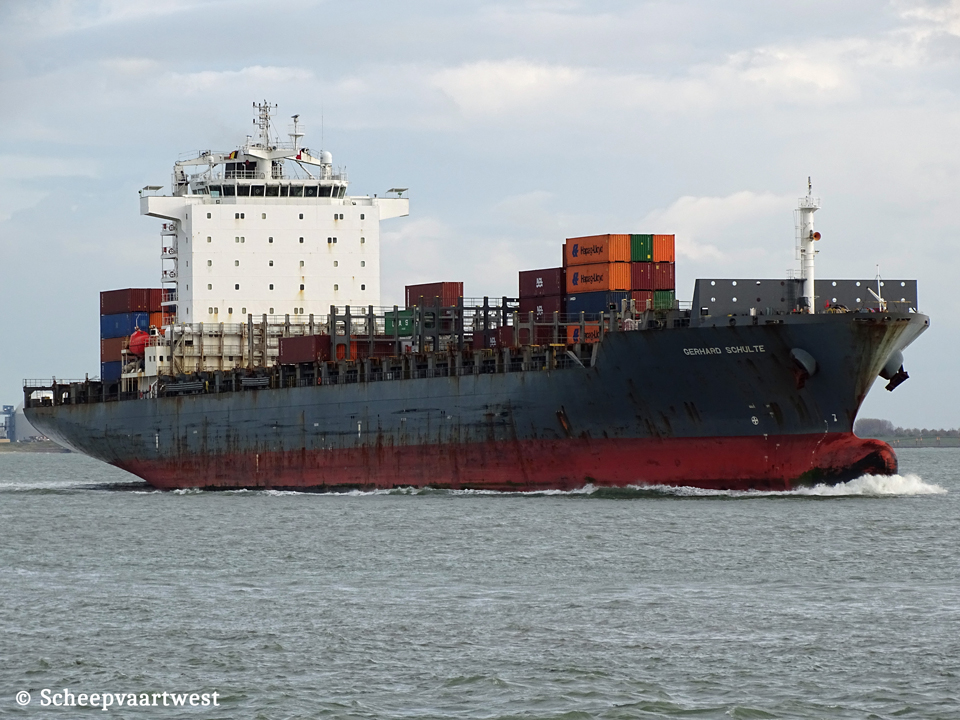

| Westerschelde 03/08/19 | |
|
Name |
GERHARD SCHULTE |
|
Previous names |
2006 - 2014 APL Bangkok |
|
Type |
Cellular containership |
|
IMO-number |
9328481 |
|
Call sign |
VRBY5 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
35.991 t |
|
DWT |
42.082 t |
|
NT |
15.938 t |
|
Number of 20ft containers |
3.400 |
|
Container capacity 14t |
2.353 |
|
Reefer capacity |
500 |
|
Length |
230,98 m overall 214,2 m between perpendiculars |
|
Breadth |
32,29 m |
|
Draught |
Summer: 12,00 m |
|
Keel to mast end |
54,44 m |
|
Forecastle |
13,03 m |
|
Depth |
18,80 m |
|
Speed |
Max: 22,2 knots |
|
Built |
2006 |
|
Keel laid |
16/11/2005 |
|
Launch date |
27/01/2006 |
|
Date of completion |
26/06/2006 |
|
Builder |
Shanghai Shipyard & Chengxi Shipyard Co., Ltd. Shanghai China |
|
Yard number |
SS1114 |
|
Hull material |
Shipbuilding steel (standard) Hull structural members are partly made of higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/Hudong 7K90 MC-C MK VI - 2 stroke 7 cylinder 900 x 2.300 mm combustion engine 31.990 kW / 43.494 hp at 104,0 rpm Build: 2006 Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired / exhaust gas heated - 9,0 bar Heating surface: 35,4 m² Heating surface: 628,0 m² Build: 2005 Manufacturer: Zhangjiagang Hailu Shazhou Boiler |
|
Electric installations |
1x Plant 450/ 230 V - 1.645 kVA 1x Plant 450/ 230 V - 1.645 kVA 1x Plant 450/ 230 V - 1.645 kVA 1x Plant 450/ 230 V - 1.645 kVA 1x Plant 450 V - 212,5 kVA 1x Plant 24 V - 14 Ah 1x Plant 24 V - 78 Ah 1x Plant 24 V - 150 Ah 1x Plant 24 V - 300 Ah |
|
Generators |
4x Himsen 7H21/32 main diesel generatorsets each 1.654 kVA |
|
Emergency generator |
1x Diesel generatorset 212,5 kVA |
|
Compressed air receivers |
2x Receivers each 14.000 litres - 30,0 bar 1x Receiver 320 litres - 30,0 bar 2x Receivers each 100 litres - 11,0 bar 1x Receiver 250 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Tank capacities |
Fuel: 1.859 m³ |
|
Anchor equipment |
3x Weight each 11100 kg Chain length: 687,50 m |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Commercial manager |
Hanseatic Unity Chartering (HU) GmbH & Co KG, Streit's Hof - 3rd floor Poststrasse 14-16 D-20354 Hamburg Germany |
|
ISM manager |
Bernhard Schulte Shipmanagement (China) Co., Ltd. 1st-3rd Floors, Block 7, 1690, Cailun Lu, Pudong Xinqu Shanghai, 201203 China |
|
Registered owner |
Wealth Crown Ltd. Care of Hanseatic Unity Chartering (HU) GmbH & Co KG, Streit's Hof - 3rd floor Poststrasse 14-16 D-20354 Hamburg Germany |
|
Latest data adjustment |
25 November 2022 |
