Szechuen

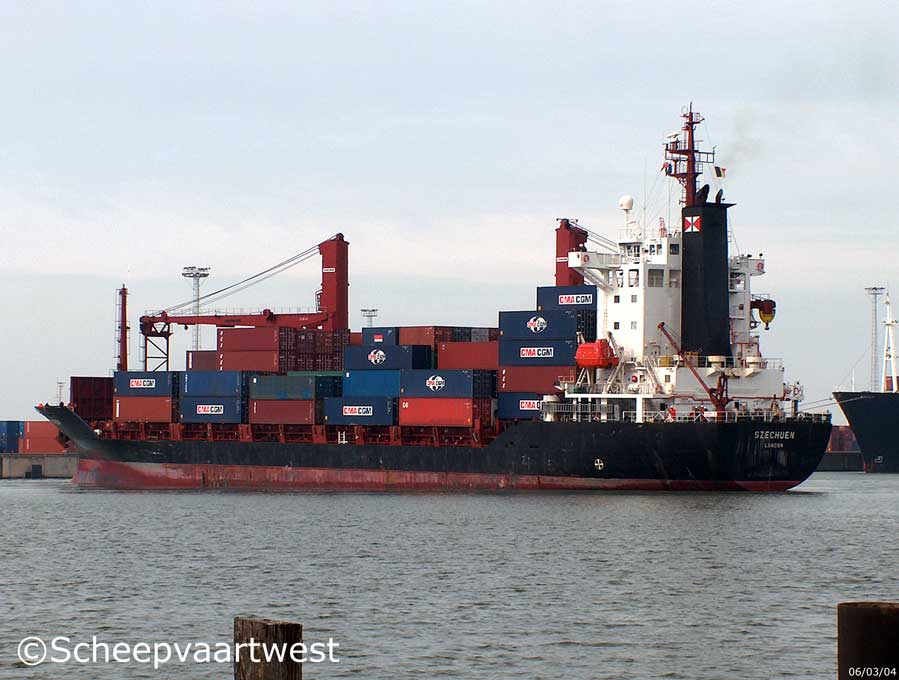

Zeebrugge 06 March 2004

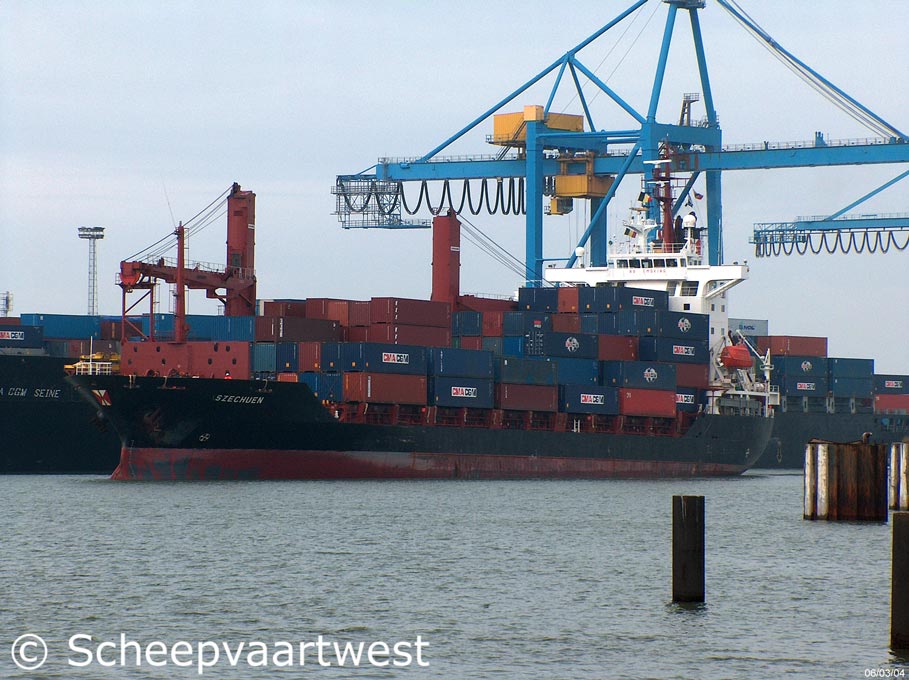

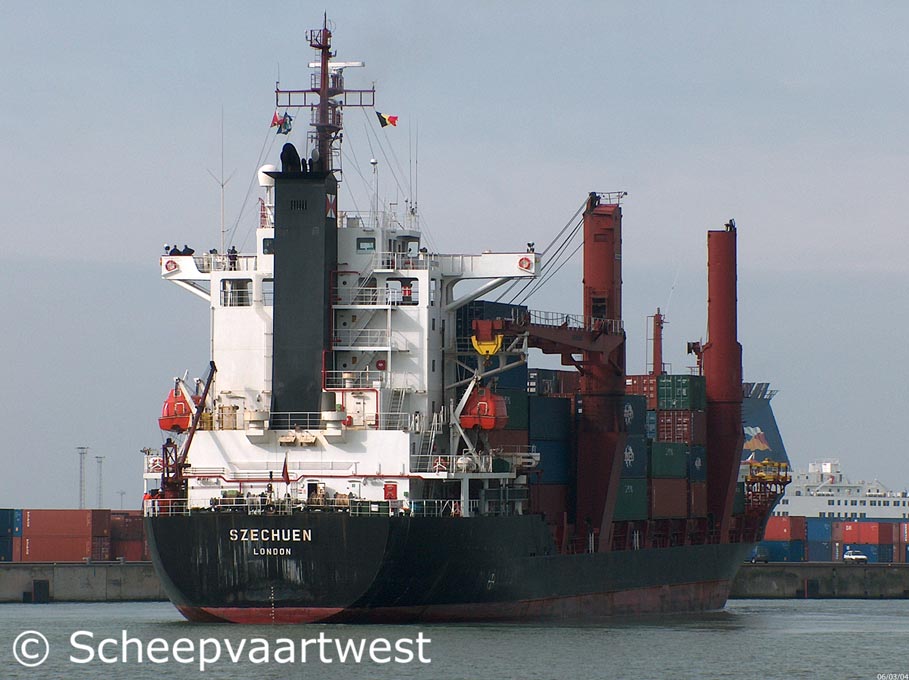

Szechuen 02   Szechuen 05
Zeebrugge 06/03/04 Zeebrugge 06/03/04



Name

SZECHUEN

Previous names

1995 - 1996 Kokopo Chief
1996 - 1998 Tasman Chief
1998 - 1999 Szechuen
1999 - 1999 Thailand Star
1999 - 2001 Maersk Nairobi
2001 - 2004 Szechuen

Type

Gear Containership

IMO-number

9106766

Call sign

ZNDO5

Flag

United Kingdom

Port of registry

London

GT

7.869 t

DWT

10.736 t

NT

4.270 t

Number of 20ft containers

844

Reefer point

100 CEE plugs - 440 V / 32 A

Length

129,78 m overall
120,00 m between perpendiculars
119,98 m registered

Breadth

22,10 m over all
22,00 m registered

Draught

Summer: 8,320 m

Depth

11,00 m tonnage

Speed

17,5 knots

Built

1995

Keel laid

06.12.1994

Launch date

27.04.1995

Date of completion

11.07.1995

Builder

Miho Shipyard Co., Ltd.
3797, Miho
Shimizu-city , Shizuoka
Japan

Yard number

1445

Hull material

Shipbuilding steel (standard)

Hull type

Single hull
Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN-B&W 7 L 42 MC MK6 - 2 stroke single acting 7 cylinder 420 x 1.360 mm diesel engine - 6.965 kW at 176,0 rpm
Year of manufacture: 1995
Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works
3-1-1, Tama
Tamano-city , Okayama 706-8651
Japan

Propellers

1x Solid propeller (keyless) - aft

Boilers

1x Steam boiler, oil fired - 8,0 bar
Heating surface: 31,5 m²
1x Exhaust gas heated - 8,0 bar
Heating surface: 173,3 m²
Year of manufacture: 1995
Manufacturer: Tortoise Engineering Co., Ltd.
700 Oaza-Kitagawara, Masaki-cho
Iyo-gun , Ehime 791-3131
Japan

Electric installations

1x Plant 440 V - 2.062,5 kVA
1x Plant 440 V - 65 kVA

Generators

3x Yanmar M220 main diesel generatorsets each 687,5 kVA / 550 kW

Emergency generator

1x Diesel generatorset 65 kVA

Compressed air receivers

2x Receivers each 2.800 litres - 30,0 bar
1x Receiver 200 litres - 30,0 bar

Bow thruster

1x 675 kW - forward
1x 515 kW - aft

Anchor equipment

3x Anchors weight each 4.890 kg
Chain length: 550,00 m

Cargo gear

2x Cranes - each SWL 40,0 t

Manager

Reederei Alnwick Harmstorf & Co. GmbH & Co. KG
Klopstockstr. 1
22765 Hamburg
Federal Republic of Germany

Renamed

2004 Sylvette
