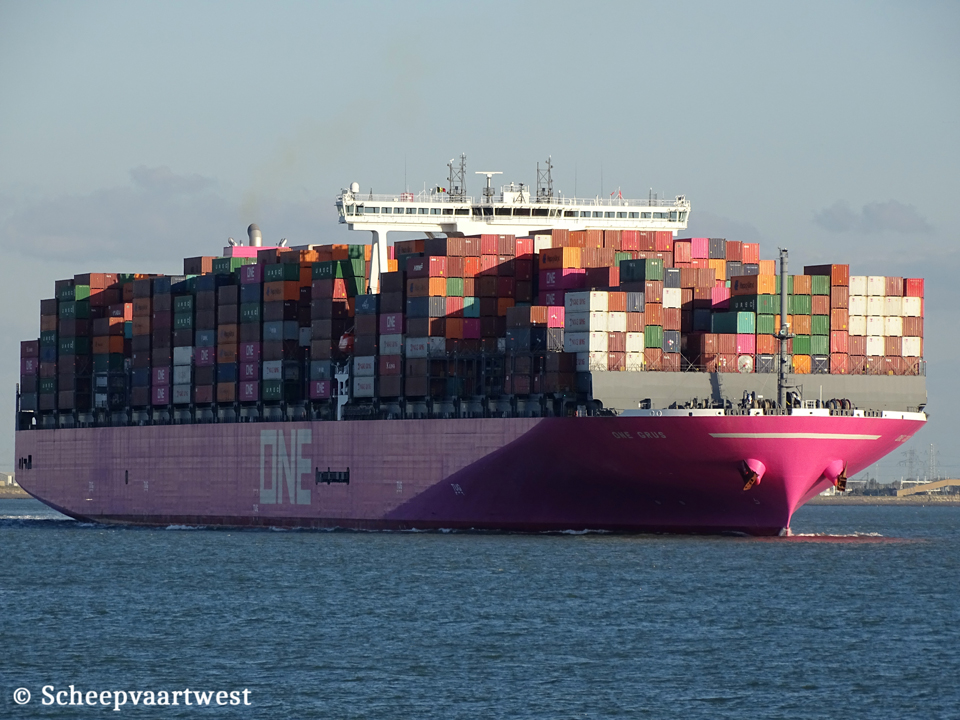

One Grus IMO 9806067 03

Westerschelde 29 October 2019

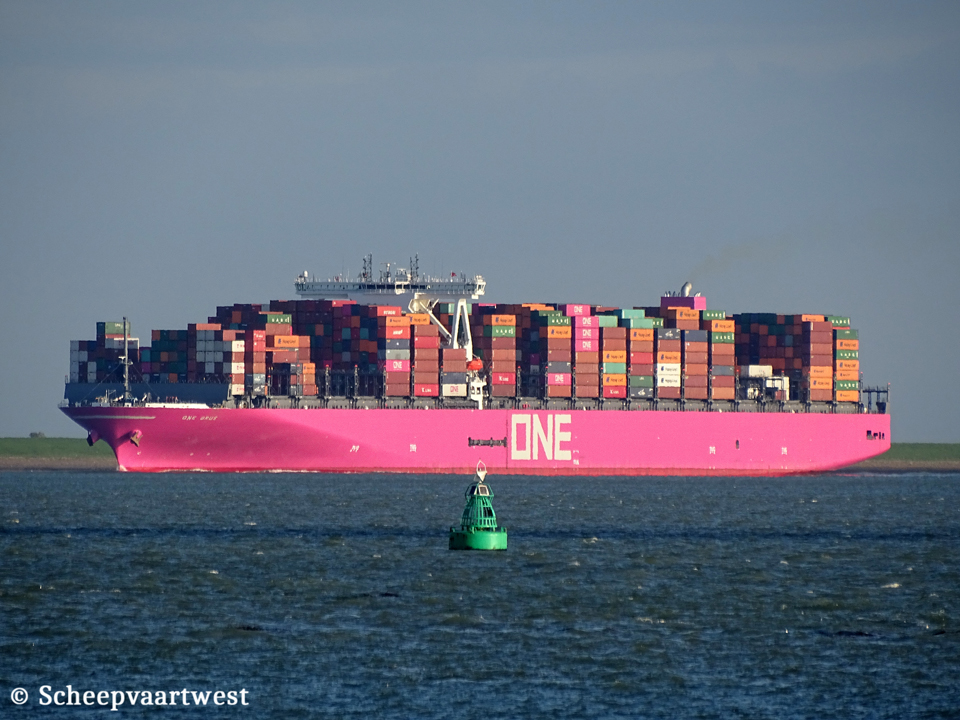

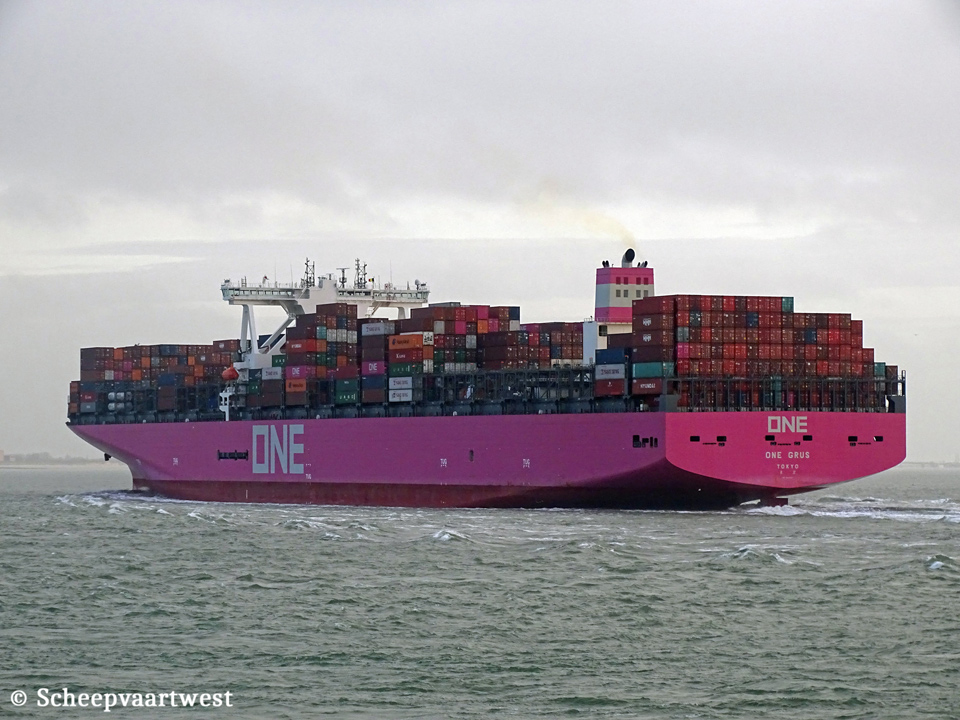

One Grus IMO 9806067 02   One Grus IMO 9806067 01
Westerschelde 29/10/19 Westerschelde 07/01/19









Name

ONE GRUS

Type

Cellular containership

IMO-number

9806067

Call sign

7KDT

Flag

Japan

Port of registry

Tokyo

GT

146.694 t registered

DWT

138.611 t

NT

85.850 t registered

Number of 20ft containers

14.052

Container capacity 14t

9.150

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m moulded

Draught

Summer: 15,77 m

Moulded Lx B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

353,91 x 50,60 x 23,04 m

Keel to mast end

67,90 m

Freeboard

Summer: 7.301 mm

Depth

23,04 m moulded

Speed

Max: 22,4 knots

Built

2019

Keel laid

07/12/2015

Launch date

14/09/2018

Date of completion

25/01/2019

Builder

Japan Marine United Corporation, Kure Shipyard

japan

Yard number

5123

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x Wärtsilä WinGD W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine Mcr 42.180 kW at 74,6 rpm

Manufacturer: Diesel United, Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,70 MPa

Evaporation: 2,50 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Main diesel generatorsets each 3.200 kW

Bow thruster

2x Tunnel thruster each 1.800 kW / 2.447 bhp

Tank capacities

Fuel oil: 9.959 m³

Diesel oil: 1.055 m³

Fresh water: 599,34 m³

Ballast water: 36.800 m³

Cargo gear

Gearless

Crew size

32

Commerical manager

NYK Line

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku, Tokyo, 100-0005

Japan

ISM manager

NYK Shipmanagement Pte Ltd.

15-01, HarbourFront Tower One, 1, Harbourfront Place

Singapore 098633

Republic of Singapore

Group

ONE - Ocean Network Express Pte Ltd.

Registered owner

Basho Ship Holding LLC

Care of Nippon Yusen KK (NYK Line) (Nippon Yusen Kaisha), Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku

Tokyo, 100-0005

Japan

Latest data adjustment

23 May 2022
