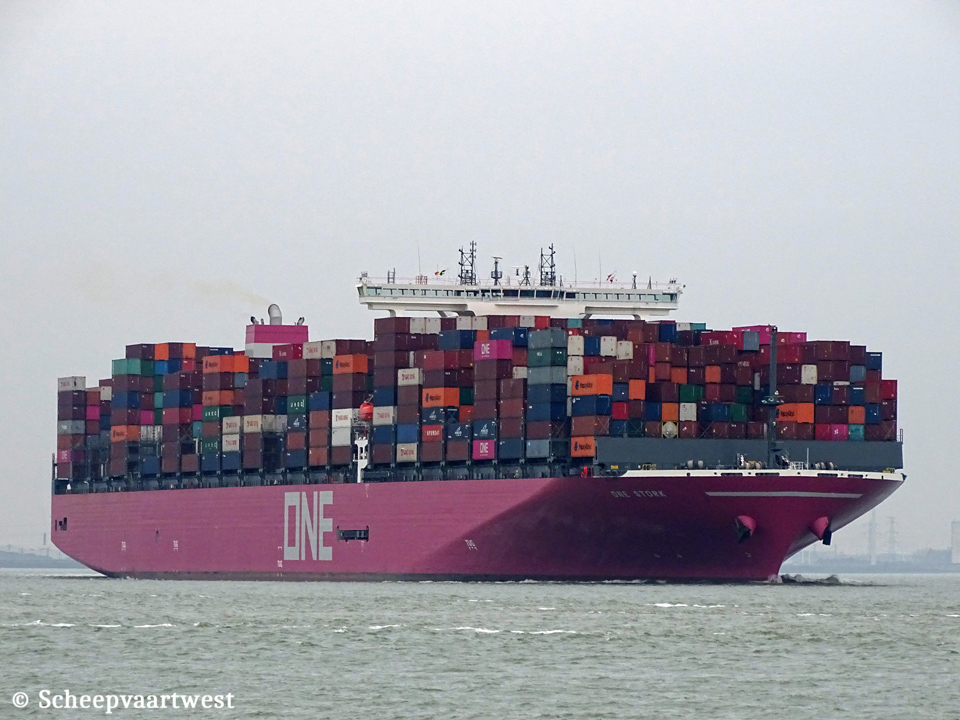

One Stork IMO 9784788 01

Westerschelde 08 February 2020



One Stork IMO 9784788 02
Westerschelde 08/02/20













Name

ONE STORK

Type

Cellular containership

IMO-number

9784788

Call sign

7KCR

Flag

Japan

Port of registry

Tokyo

GRT

145.251 t

DWT

139.500 t

NT

84.742 t

Number of 20ft containers

14.026

Container capacity 14t

9.150

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m moulded

Draught

Summer: 15,77 m

Moulded L x B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

353,91 x 50,60 x 23,04 m

Keel to mast end

67,90 m

Freeboard

Summer: 7.301 mm

Depth

23,04 m moulded

Speed

Service speed: 24,0 knots

Built

2018

Keel laid

09/11/2015

Launch date

26/06/2018

Date of completion

06/06/2018

Builder

Japan Marine United - Kure Shipyard

Japan

Yard number

5112

Hull material

Steel

Continuous decks

1

Main engine

1x Wärtsilä 9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 42.180 kW / 57.346 hp at 74,6 rpm

Builder: Diesel United Ltd., Aioi Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1x Fixed pitch propeller - aft at 65,0 rpm

Boilers

1x Auxiliary vertical boiler - 0,7 MPa

Evaporation: 5,70 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Main diesel generatorsets each 3.200 kW

Bow thruster

2x Fixed pith thruster each 1.800 kW / 2.447 bhp, forward

Tank capacities

Fuel oil: 10.515,83 m³

Fresh water: 599,04 m³

Cargo gear

Gearless

Crew size

30

Commercial manager

NYK Line

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku

Tokyo, 100-0005

Japan

ISM manager

NYK Shipmanagement Pte Ltd.

15-01, HarbourFront Tower One, 1, Harbourfront Place, Singapore 098633

Republic of Singapore

Operator

ONE - Ocean Network Express Pte. Ltd.

Registered owner

Wanda Ship Holding LLC

Care of Nippon Yusen KK (NYK Line) (Nippon Yusen Kaisha)

Yusen Building, 3-2, Marunouchi 2-chome, Chiyoda-ku,

Tokyo, 100-0005

Japan

Latest data adjustment

12 August 2021
