Westerschelde 16 September 2017 |
|
Name |

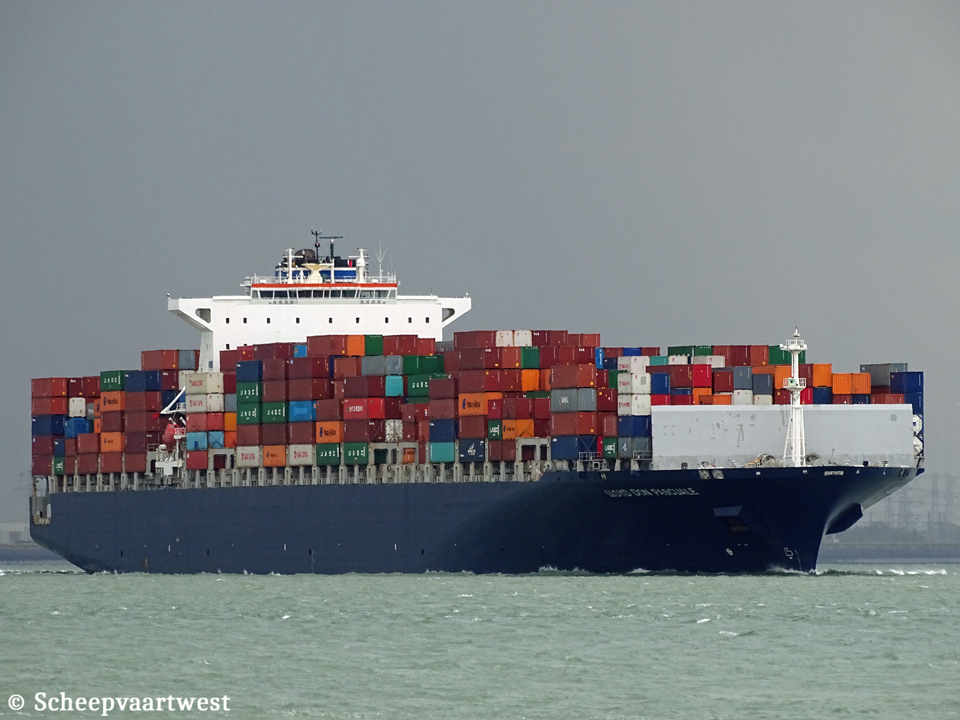

LLOYD DON PASCUALE |
|
Previous names |
2007 build as: E.R. Trieste 2007 - 04/2009 MSC Xian 04/2009 - 07/2012 CMA CGM Don Pascuale 07/2012 - 05/2014 Don Pascuale |
|
Type |
Cellular containership |
|
IMO-number |
9318101 |
|
Call sign |
A8KY2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
91.649 t |
|
DWT |
Summer: 101.477 t |
|
NT |
55.388 t |
|
Number of 20ft containers |
8.204 |
|
Container capacity 14t |
6.180 |
|
Reefer capacity |
700 |
|
Length |
334,07 m overall 319,00 m between perpendiculars |
|
Breadth |
42,80 m extreme |
|
Draught |
Summer: 14,67 m |
|
Forecastle |
160,50 m |
|
Bridge |
152,50 m |
|
Freeboard |
5.659 mm |
|
Depth |
24,60 m |
|
Speed |
Max: 25,4 knots |
|
Built |
2007 |
|
Keel laid |
07/08/2006 |
|
Launch date |
25/10/2006 |
|
Date of completion |
04/01/2007 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Jeollanam-do South Korea |
|
Yard number |
S277 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K98MC - 2 stroke 12 cylinder 980 x 2?660 mm combustion engine 68.640 kW at 94,0 rpm Build: 2006 Manufacturer: Hyundai Heavy Industries Co., Ltd. Transmission: Main propulsion acts directly on the propeller shaft Starter type: Compressed air direct |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 10,0 bar Heating surface: 42,17 m² 1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 677,0 m² Build: 2006 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
1x Plant 6.600 V - 2.933 kVA 1x Plant 6.600 V - 2.933 kVA 1x Plant 6.600 V - 2.933 kVA 1x Plant 6.600 V - 3.733 kVA 1x Plant 6.600 V - 3.733 kVA 1x Plant 450 V - 525 kVA 1x Plant 12 V - 92 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 500 Ah |
|
Generators |
2x MAN 9L27/38 main diesel generatorsets each 3.733 kVA 3x MAN 7L27/38 main diesel generatorsets each 2.933 kVA |
|
Emergency generator |
1x Cummins KTA19-D(M) diesel generatorset 525 kVA |
|
Batteries |
1x Battery for UPS radio 200 Ah |
|
Compressed air receivers |
2x Receivers, each 16.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 150 litres - 30,0 bar 1x Receiver 250 litres - 7,7 bar 1x Receiver 2.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 2.500 kW, forward |
|
Anchor equipment |
3xs Anchors weight each 18.800 kg Length: 742,50 m Diameter: 107 mm |
|
Crew size |
31 |
|
Manager |
ZEABORN Ship Management GmbH & Cie. KG Ludwig-Erhard-Straße 22 20459 Hamburg Germany |
|
Registered owner |
MS "LLOYD DON PASCUALE" Schifffahrtsgesellschaft mbH & Co. KG C/o ER Shiffarhrt GmbH 1 Cie. Hamburg Germany |
|
Latest data adjustment |
05 January 2021 |
