Westerschelde 02 November 2019 |
 |
 |
 |
 |
|||

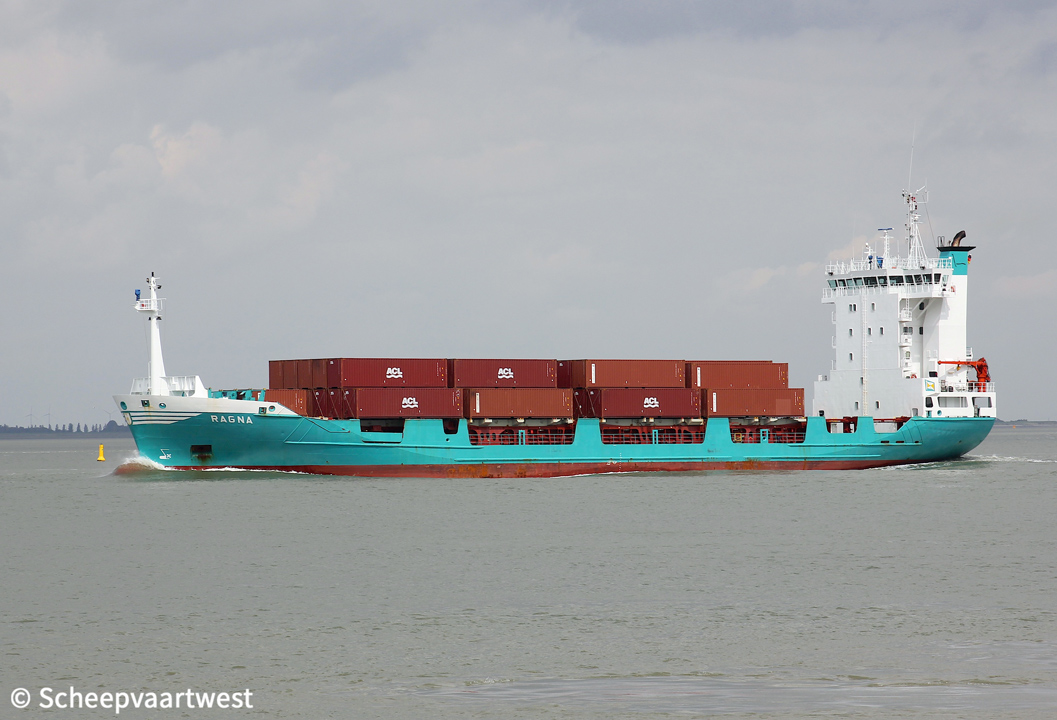

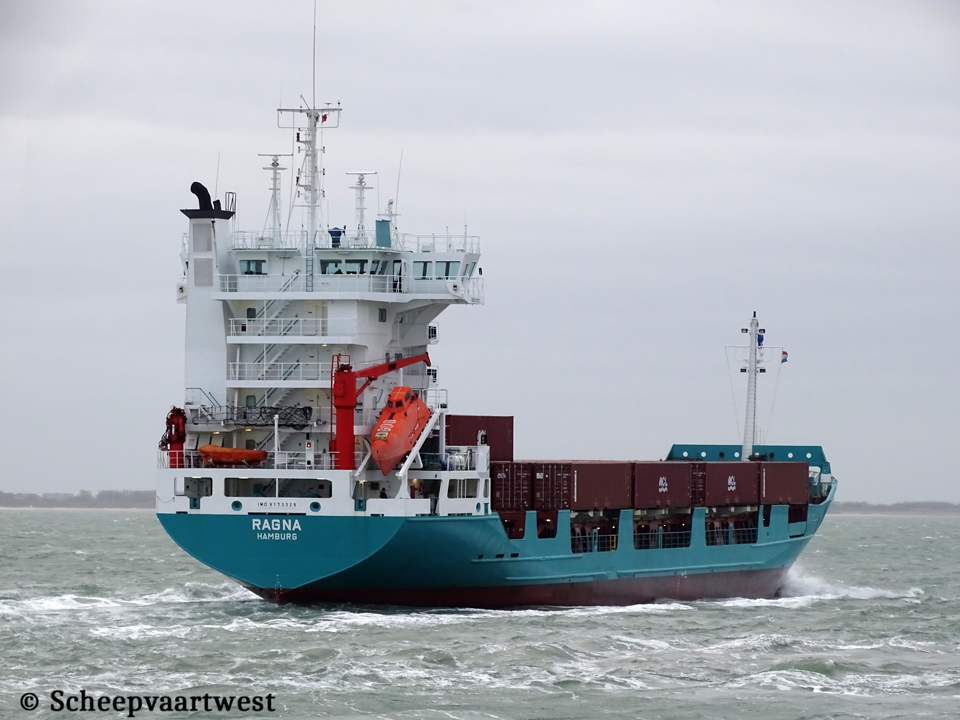

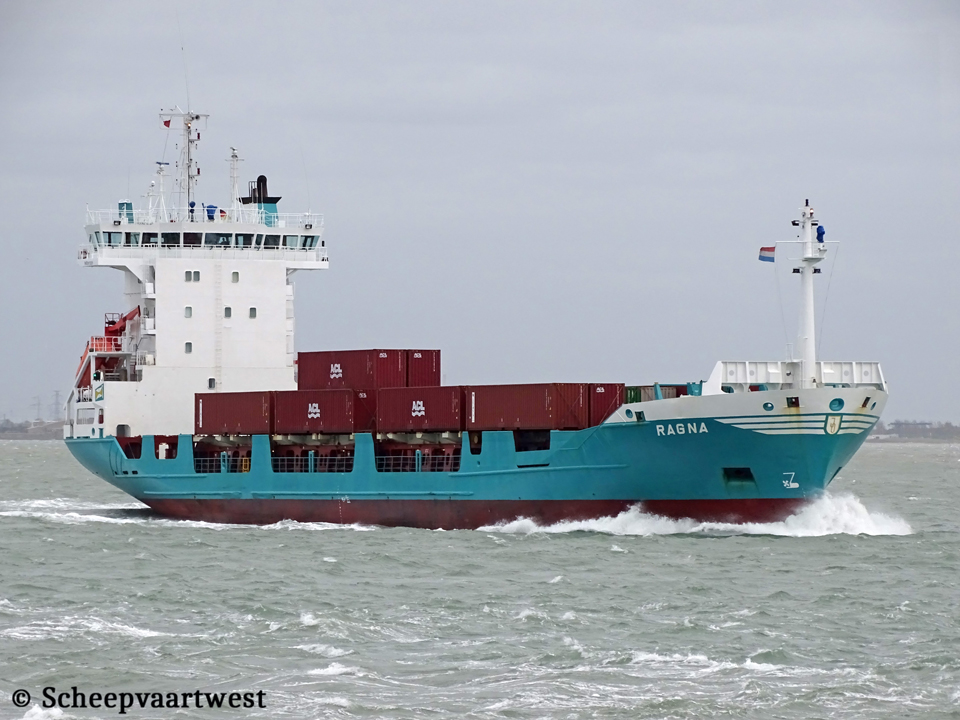

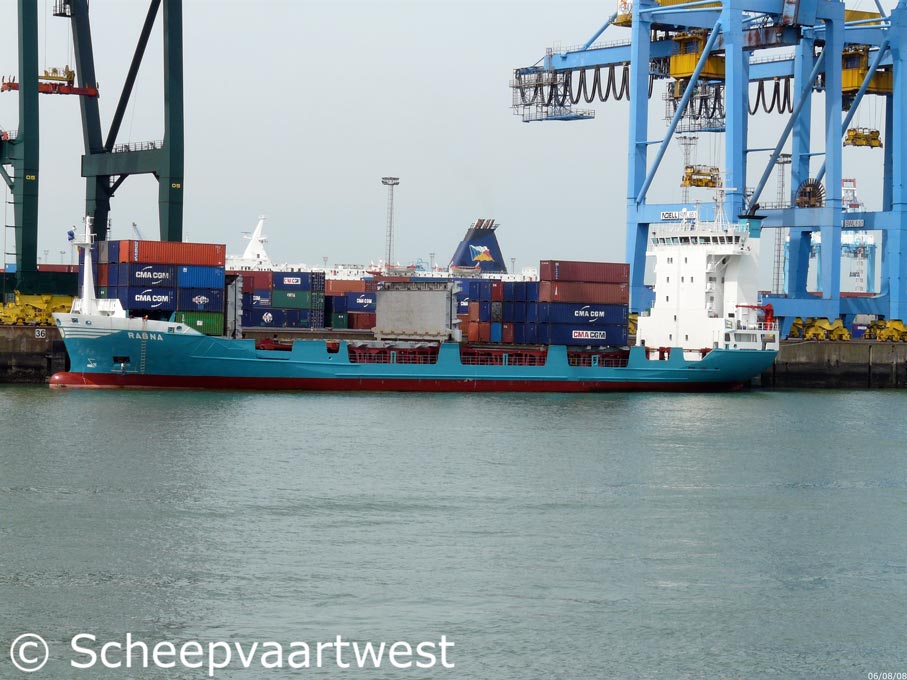

| Westerschelde 02/11/19 | Terneuzen 13/08/19 | Terneuzen 13/08/19 | Zeebrugge 06/08/08 |
|
Name |
RAGNA |
|
Previous name |
Launch as: 1998 Jan Ragna 1998 - 2006 Baumwall |
|
Type |
Cellular containership / Feeder |
|
IMO-number |
9173329 |
|
Call sign |
DGOG |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
3.999 t registered |
|
DWT |
5.215 t |
|
NT |
2.176 t registered |
|
Number of 20ft containers |
508 |
|
Container capacity at 14t |
285 |
|
Reefer points |
50 (380 Volt / 50 Hz 3 phases female) |
|
Length |
101,08 m overall 96,00 m between perpendiculars 96,13 m registered |
|
Breadth |
18,20 registered |
|
Draught |
Summer: 6,55 m |
|
Forecastle |
9,33 m |
|
Poop |
9,00 m |
|
Freeboard |
1.715 mm |
|
Depth |
8,25 m |
|
Speed |
15,5 knots |
|
Built |
1998 |
|
Keel laid |
17/06/1997 |
|
Launch date |
02/12/1997 |
|
Date of completion |
09/01/1998 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. Neuenfelder Fährdeich 88 21129 Hamburg Federal Republic of Germany |
|
Yard number |
1180 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom, (E.G. Interrupted in way of machinery space) |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 9M32 - 4 stroke single acting 9 cylinder 320 x 480 mm combustion engine 3.825 kW / 5.197 bhp at 600 rpm Year of manufacture: 1997 Manufacturer: Krupp Mak Maschinenbau GmbH Falckensteiner Str. 2 24159 Kiel Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 160 rpm |
|
Electric installations |
1x Plant 380/220 V - 640 kVA 1x Plant 380 V - 850 kVA 1x Plant 380 V - 40 kVA |
|
Shaft generator |
1x Piller 580 kW / 850 kVA |
|
Generators |
2x Caterpillar 3408 main diesel generatorsets each 320 kVA - 256 kW - 462 hp |
|
Emergency generator |
1x Diesel generatorset 40 kVA - 32 kW - 60 hp |
|
Compressed air receivers |
2x Receivers each 500 litres - 30 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 400 kW, forward |
|
Number of holds |
2x Box holds, steel floored Hold 1: 33,60 x 12,90 x 15,52 m Hold 2: 27,30 x 15,52 m |
|
Hold ventilation |
Mechanical 6 air changes/h |
|
Number of hatches |
5 Hatch 1: 6,30 x 12,90 m Hatch 2: 12,50 x 12,90 m Hatch 3+4+5: 12,50 x 15,52 m |
|
Hatch type |
Hydraulic folding steel covers |
|
Cargo capacity |
Bale: 7.013 m³ Grain: 7.247 m³ |
|
Tank capacities |
Ballast: 2.099 m³ Bunker: 390 t Fuel oil: 406 m³ fresh water: 65 t |
|
Anchor equipment |
3 Anchors weight each 3.300 kg Chain length: 495,00 m |
|
Crew size |
15 |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Jürgen Ohle reederei KG Dornbuscher Str. 12 21706 Drochtersen Federal Republic of Germany |
|
Previous operator |
Delphis NV Schaliënstraat 5 2000 Antwerpen Belgium |
|
Owner |
Reederei Jürgen Ohle KG MS "RAGNA" Care of Reederei Jurgen Ohle KG Dornbuscher Strasse 12 21706 Drochtersen Germany |
|
Latest data adjustment |
02 June 2022 |
