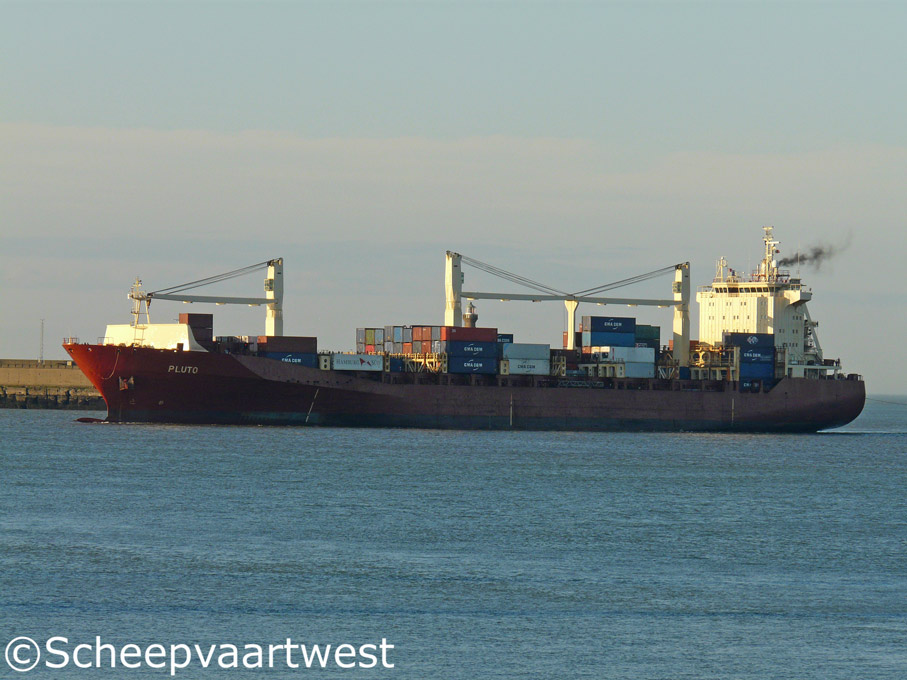

Pluto 07
Zeebrugge 16 January 2011

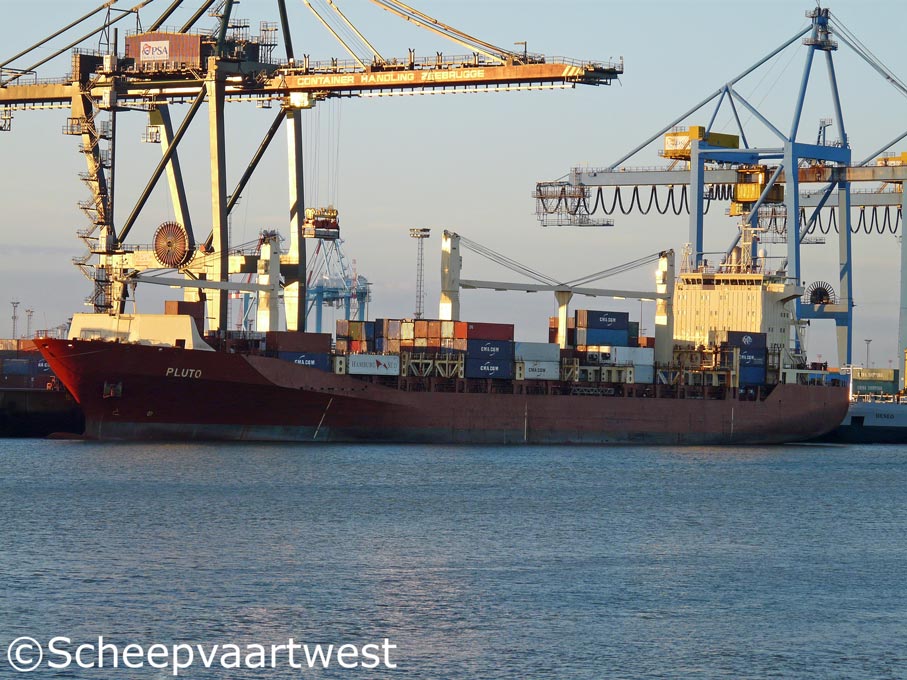

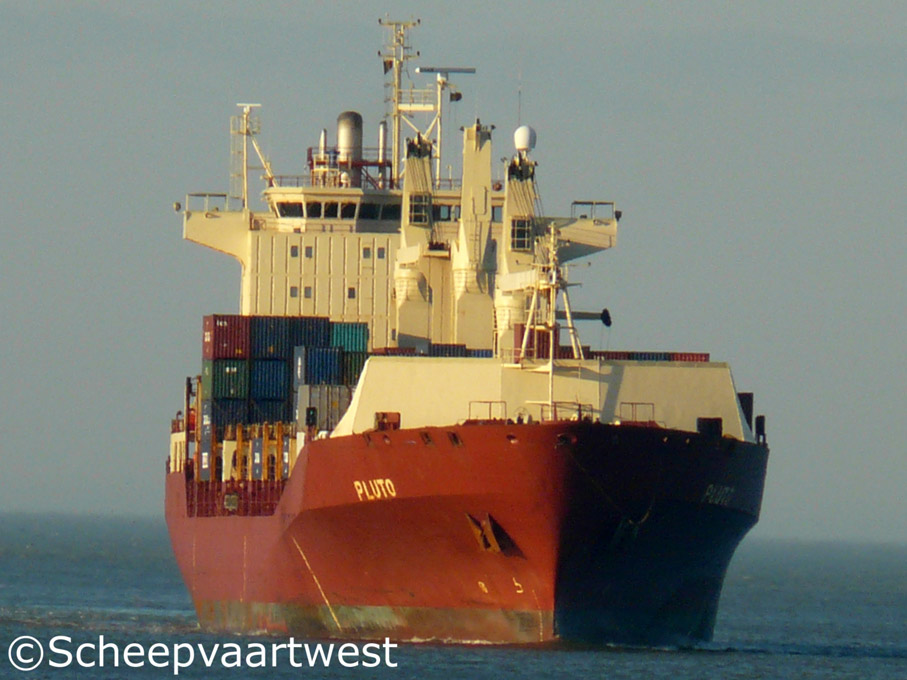

Pluto 02   Pluto 12
Zeebrugge 16/01/11 Zeebrugge 16/01/11



Name

PLUTO

Type

Cellular containership

IMO-number

9193680

Call sign

V7MA5

Flag

Marshall Islands

Port of registry

Majuro

GT

23.722 t

DWT

29.266 t

NT

9.843 t

Number of 20ft containers

1.804

Containers capacity 14t

1.250

Reefer capacity

320

Length

194,00 m overall

181,76 m registered

Breadth

28,20 m registered

Draught

Summer;11,50 m

Forecastle

25,27 m

Poop

19,40 m

Freeboard

5.324 mm

Depth

16,80 m moulded

Speed

21,0 knots

Built

1999

Keel laid

16.11.1998

Launch date

27.02.1999

Date of completion

07.05.1999

Builder

Stocznia Szczecinska S.A

ul. Czechoslowacka 3

81-969 Gdynia

Republic of Poland

Yard number

B8138/09

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MAN-B&W 6L70MC - 2 stroke single acting 6 cylinder 700 x 2.674 mm diesel engine - 17.200 kW at 108 rpm

Year of manufacture: 1999

Manufacturer: H. Cegielski-Poznan S.A.

ul. 28 Czerwca 1956 223/229

60-965 Poznan

Republic of Poland

Propeller

1x Solid propeller (keyless)

Boilers

1x Steam boiler oil fired - 9,0 bar

Heating surface: 81,0 m²

1x Steam boiler exhaust gas heated - 9,0 bar

Heating surface: 475,6 m²

Year of manufacture: 1998

Manufacturer: Marine Metal Sp. z o.o.

ul. Doki 1

80-863 Gdansk

Republic of Poland

Electric installations

1x Plant 440/220 V - 1.105 kVA

1x Plant 440/220 V - 1.480 kVA

1x Plant 440/220 V - 1.480 kVA

1x Plant 440 V - 250 kVA

Generators

2x Wärtsilä 8L20 main diesel generatorsets each 1.480 kVA

1x Wärtsilä 6L20 main diesel generatorset 1.105 kVA

Emergency generator

1x Diesel generatorset 250 kVA

Compressed air receivers

2x Receivers each 10.000 litres - 33,0 bar

1x Receiver 800 litres - 33,0 bar

1x Receiver 50 litres - 9,0 bar

Bow thruster

1x Transverse thruster ZAMECH - 900 kW forward

Tank capacities

Ballast water: 12.606 m³

Fuel: 2.860 m³

Cargo gear

3x Cranes - SWL 45,0 t each

Anchor equipment

3x Anchors weight each 8.300 kg

Chain Length: 632,50 m

Crew

20

Manager

Alpha Shipmanagement GmbH & Co. KG

Domshof 14/15

28195 Bremen

Federal Republic of Germany

Operator

CMA CGM - Compagnie Mariyime D' Affrétement -

Compangnie Générale Maritime

Owner

Alpha Ship GmbH & Co. KG MS "PLUTO"

Domshof 14/15

28195 Bremen

Federal Republic of Germany

Renamed

02.2016 MSC Tia - Malta, valletta - Call sign: 9HA3713

Latest data adjustment

09 April 2016
