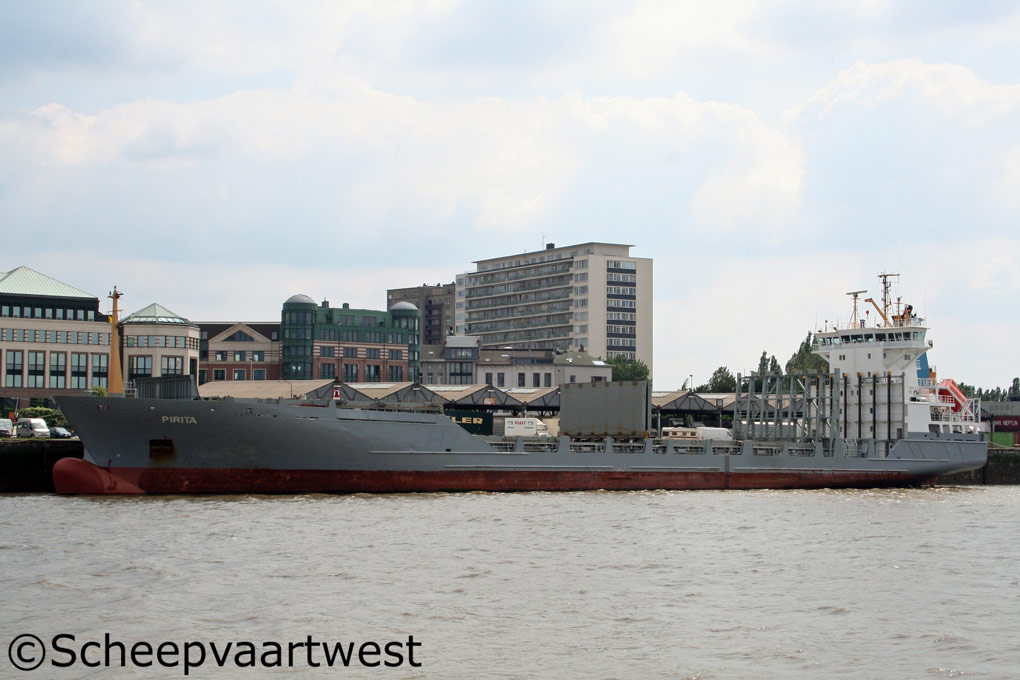

Pirita 07
Antwerpen 31 May 2009



Name

PIRITA

Previous names

Nova

Norasia Adria

Nova

OOCL Neva

Nova

Pirita

WEC Majorelle

Type

Containership

IMO-number

9108063

Call sign

C4LF2

Flag

Cyprus

Previous flag

26.04.200- Germany

Port of registry

Limassol

GT

6.326 t

DWT

Summer: 7.946 t

NT

3.251 t

Number of 20ft containers

660

Length

132,84 m overall

125,30 m between perpendiculars

123,68 m registered

Breadth

18,70 m overall

Draught

7,275 m

Forecastle

35,70 m

Poop

12,60 m

Freeboard

2.020 mm

Depth

9,30 m

Speed

18,0 knots

Built

1995

Keel laid

20.06.1994

Launch date

18.10.1995

Date of completion

11.1995

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1082

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double hull

Partly double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Mak 6M601C - 4 stroke single acting 6 cylinder 580 x 600 mm diesel engine - 6.600 kW kW

Year of Manufacture: 1995

Manufacturer: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft

Boilers

1x Thermal oil heater, oil fired - 10,0 bar
Heating Surface: 40,1 m²

1x Thermal oil heater, exhaust gas heated - 10,0 bar
Heating Surface: 149,3 m²

Year of Manufacture: 1995

Manufacturer: HTI - HTI - GESAB Hoch-Temperatur Industrieanlagen GmbH,
Sauerbruchstr.
1125479 Ellerau
Federal Republic of Germany

Electric installations

1x 380/220 V - 820 kVA

1x 380 V - 1.525 kVA

1x 380 V - 50 kVA

Shaft generator

1x 1.525 kVA

Generators

2x Main diesel generatorsets each 410 kVA

Emergency generator

1x Diesel generatorset 50 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller KAMEWA - 600 kW, forward

Cargo capacity

Bale: 9.607 m³

Grain: 10.845 m³

Tank capacities

Ballast: 3.621 m³

Fuel oil: 745 m³

Lifting equipment

1x Crane - SWL 4,0 t

Manager

Amisco AS
Tonismagi 9
10119 Tallinn
Estonia

Owner

Navi Shipping Ltd.
c/o Amisco AS
Tonismagi 9
10119 Tallinn
Estonia
