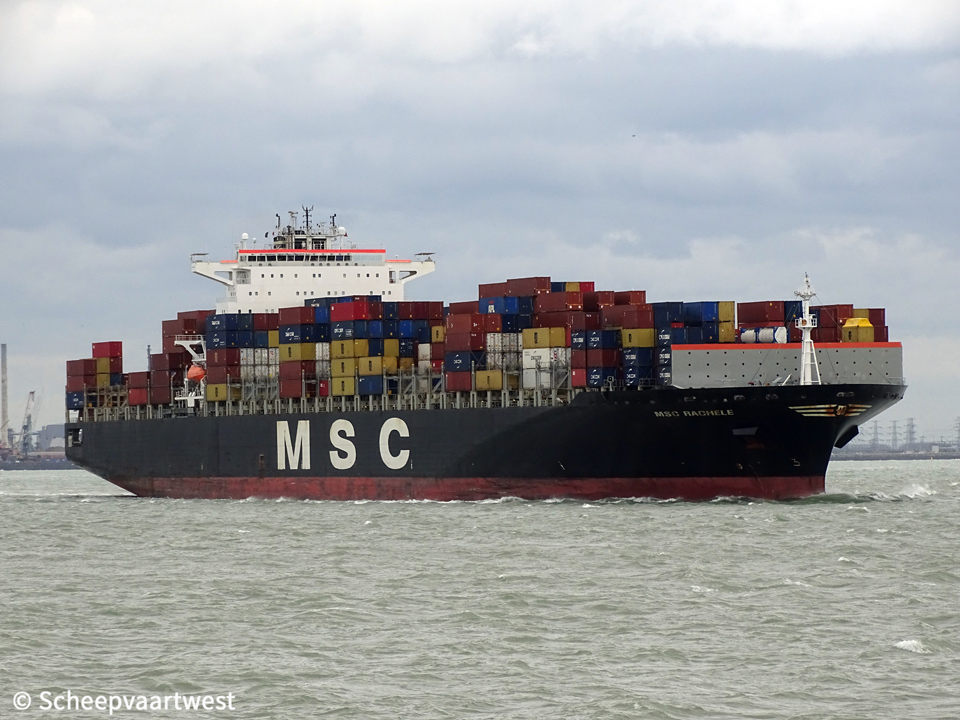

MSC Rachele 01

Westerschelde 20 February 2020

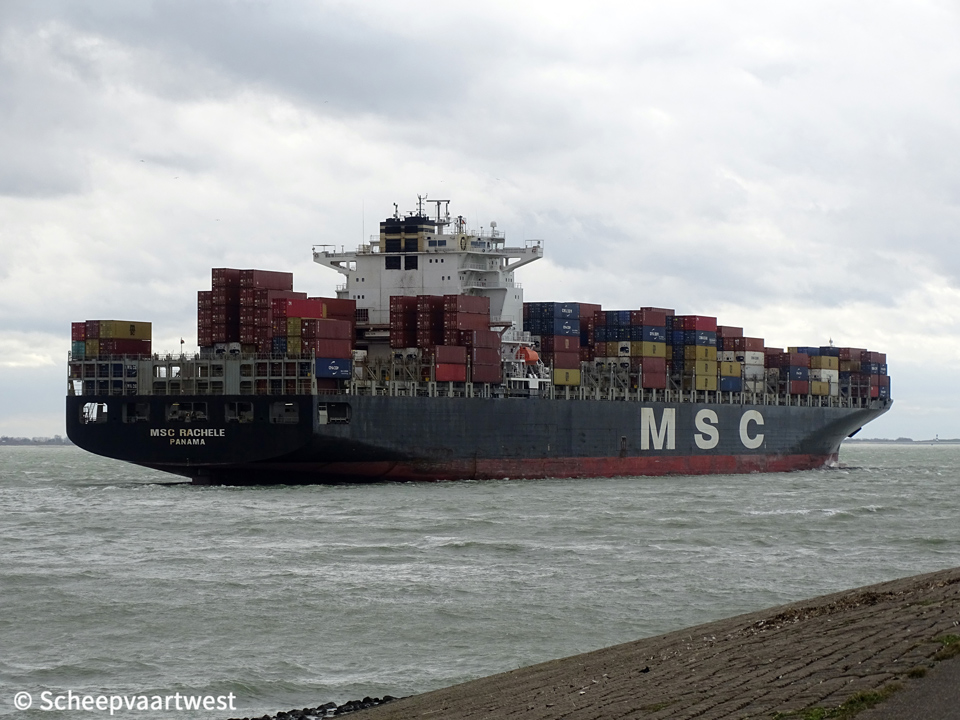

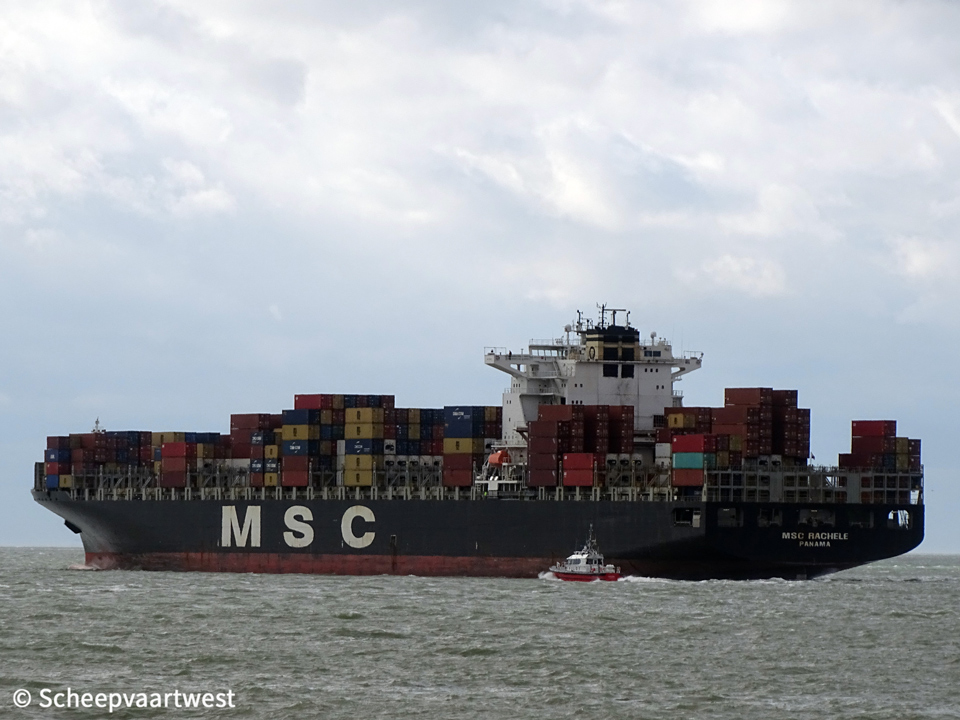

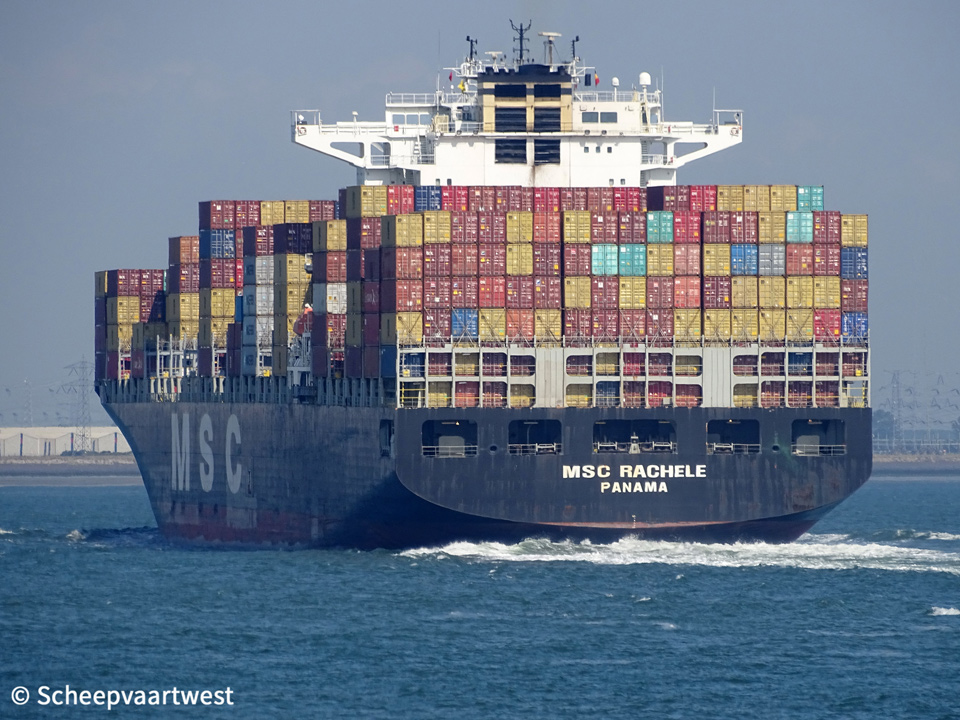

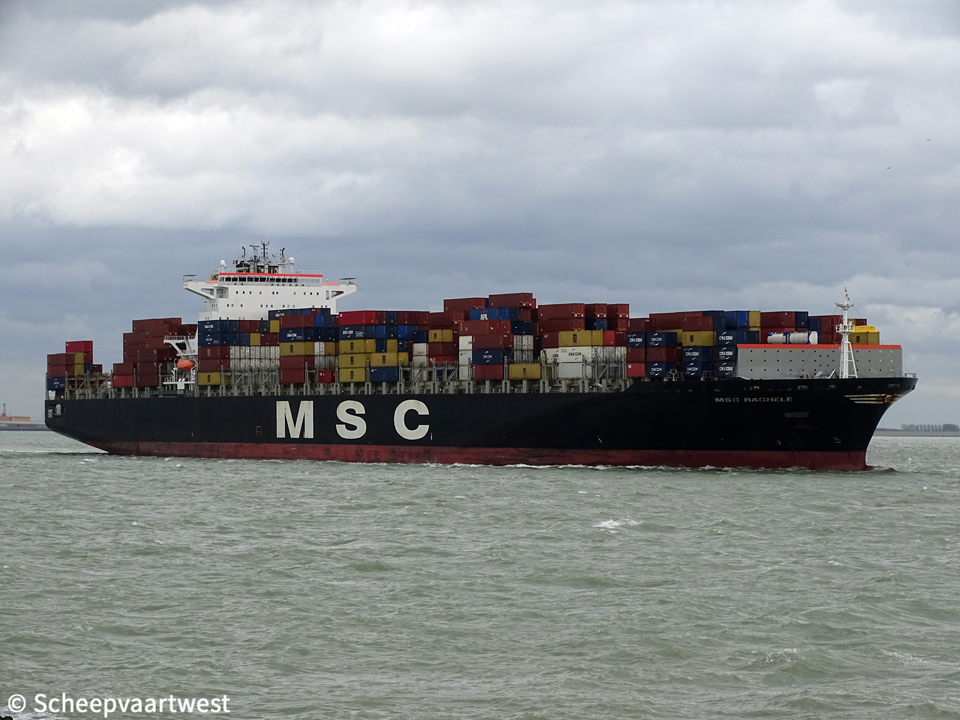

MSC Rachele 02   MSC Rachele 03   MSC Rachele 04   MSC Rachele 05
Westerschelde 20/02/20   Westerschelde 20/02/20   Westerschelde 20/02/20   Westerschelde 11/07/19













Name

MSC RACHELE

Type

Cellular containership - Post-Panamax

IMO-number

9290282

Call sign

3EAO2

Flag

Republic of Panama

Port of registry

Panama City

GT

90.745 t

DWT

Summer: 107.366,2 t

NT

59.073 t

Number of 20ft containers

In hold: 3.820

On deck: 4.418

Total: 8.238

Container capacity 14t

6.310

Reefer capacity

700

Length

334,04 m overall

319,00 m between perpendiculars

Breadth

42,80 m extreme

Draught

Max: 15,00 m

Depth

20,23 m

Speed

Max: 25,4 knots

Built

2005

Keel laid

16/11/2004

Launch date

28/01/2005

Date of completion

07/04/2005

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

H1536

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine 68.666 kW / 93.358 hp at 94,0 rpm

Builder: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 94,0 rpm

Boilers

1x Auxiliary boiler, exhaust gas heated AQ-2

1x Auxiliary boiler, oil/gas fired Mission OS 6.0

Generators

3x MAN-B&W 7L27/38 - 7 cylinder diesel engine each 2.300 kW connected with generators each 2.200 kW / 450/230 volt 60 Hz

2x MAN-B&W 9L27/38 - 7 cylinder diesel engine each 3.060 kW connected with generators each 3.000 kW / 450/230 volt 60 Hz

Emergency generator

1x Cummins VTA 28-DM diesel generatorset 530 kW

Builder: Cummins Engine Company, Inc.

Bow thruster

1x Controllable pitch thruster 2.500 kW / 3/399 bhp, forward

Anchor equipment

Length: 742,50 m

Diameter: 107 mm

Cargo gear

Gearless

Crew size

28

Manager

Mediterranean Shipping Company S.r.l.

chemin Rieu, 12-14

1208 Geneva

Switzerland

Registered owner

Compania Naviera Rachele SA

Latest data adjustment

16 July 2020
