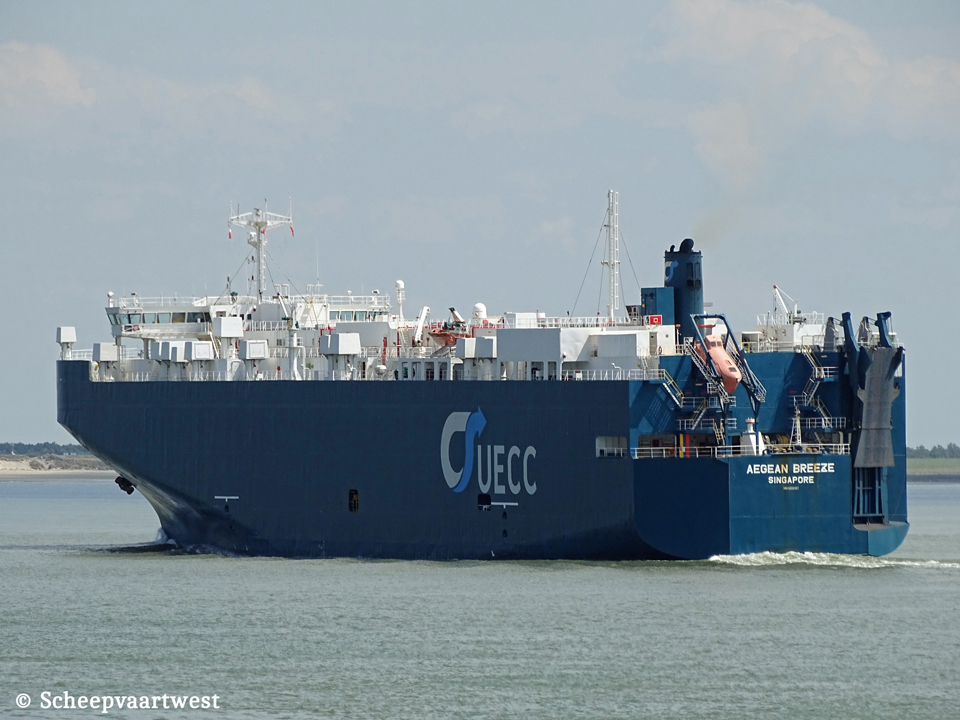

| Westerschelde 24 May 2016 |
 |

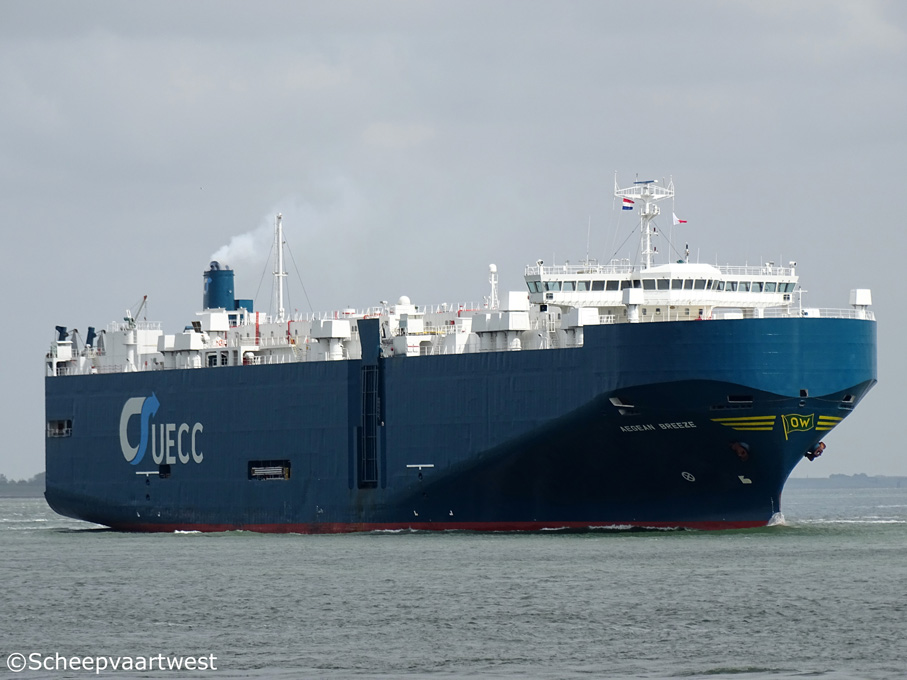

| Zeebrugge 18/04/09 |
|
Name |
AEGEAN BREEZE |
|
Type |
Roll-On/Roll-Off carrier - Car carrier |
|
IMO-number |
8202367 |
|
Call sign |
9VYJ |
|
Flag |
Republic of Singapore |
|
Previous flags |
29.11.1994 - Liberia 20.08.1997 - Republic of Singapore 19.12.1999 - Japan |
|
Port of registry |
Singapore |
|
GT |
29.874 t |
|
DWT |
Summer: 12.527 t |
|
NT |
9.362 t |
|
Length |
164,00 m overall 155,00 m between perpendiculars 157,62 m registered |
|
Breadth |
28,04 m moulded |
|
Draught |
Max. summer: 8,42 m |
|
Air draft |
37,80 m ballast |
|
Freeboard |
Summer: 3.602 mm |
|
Depth |
24,75 m to upperdeck |
|
Speed |
Service: 17,5 knots |
|
Built |
1983 2008 Major refurbishment COSCO, Dalian - China |
|
Launch date |
30.04.1983 |
|
Date of completion |
08.1983 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. |
|
Yard number |
2247 |
|
Hull type |
Single hull |
|
Watertight bulkheads |
6 |
|
Main engine |
2x Mitsui 6UEC60HA - single acting 6 cylinders diesel engine - 10.800 bhp / 7.943 kW at 128 rpm Builder: UBE Industries UBE - Japan |
|
Propellers |
1x Variable pitch propeller - 4 blades |
|
Generators |
3x Yanmar 6GL-UT main diesel engines740 kW at 720 rpm powering three generators of type Taiyo rated to 850 kVA - 450 Volt, 60 Hz each |
|
Bow thruster |
11,4 t |
|
Cargo capacity RT43 |
3.242 cars 1 RT43 unit = 7,38975 m² |
|
Capacity of cars/trucks |
1.630/266 |
|
Deck area |
28.615 m² |
|
Number of cargo decks |
10x Of which 2 are movable |
|
Number of ramps |
2 |
|
Stern ramp |
Capacity: 50 t Stern ramp opening height: 4,00 x 4,50 m Stern ramp width: 4,00 m Stern ramp length: 27,00 m |
|
Lifting equipment |
2x Cranes - SWL 2,0 t |
|
Crew size |
27 |
|
Crew |
23 |
|
Tank capacities |
Ballast: 5.189 m³ Fresh water: 378 m³ Fuel oil: 2.349 m³ |
|
Manager |
Wallenius Marine Singapore Pte Ltd. |
|
Charterer |
UECC - United European Car Carriers |
|
Owner |
Wallenius Lines Singapore Pte Ltd. |
|
Latest data adjustment |
03 July 2016 |
