Name |

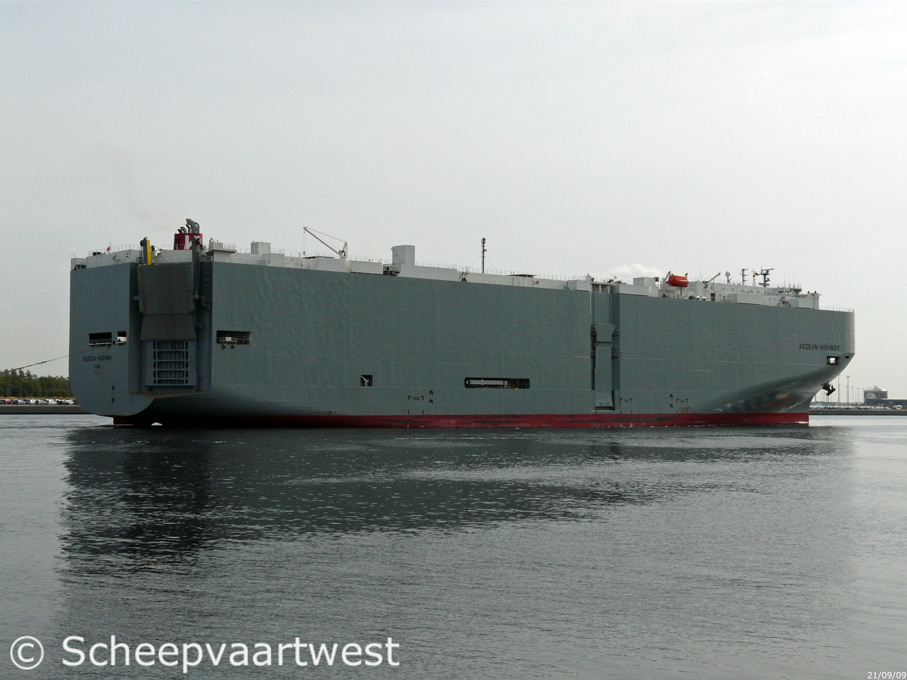

AEGEAN HIGHWAY |
|
Type |
Vehicles carrier |
|
IMO-number |
9464388 |
|
Call sign |
7JDT |
|
Flag |
Japan |
|
Port of registry |
Kobe |
|
GT |
37.552 t registered |
|
DWT |
18.867 t |
|
NT |
19.090 t |
|
Length |
199,97 m overall 192,00 m between perpendiculars |
|
Breadth |
32,26 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
195,11 x 32,26 x 21,31 m |
|
Draught |
10,02 m |
|
Freeboard |
Summer: 4.715 mm |
|
Line |
K-Line / Kawasaki Kisen Kaisha Line |
|
Built |
2008 |
|
Keel laid |
25.02.2008 |
|
Launch date |
22.07.2008 |
|
Date of completion |
25.09.2008 |
|
Builder |
Imabari Zosen Co. Ltd. Marugame Headquarters |
|
Yard number |
1474 |
|
Hull type |
Single hull |
|
Main engine |
1x Mitsubishi 8UEC60LSII - 2 Stroke single acting 8 cylinder 600 x 2.300 mm combustion engine - 13.260 kW at 100,0 rpm Manufacturer: Kobe Diesel Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1 |
|
Boiler |
1x Auxiliary vertical boiler - 7,8 bar Evaporation: 3,56 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Generators - 4.700 kVA |
|
Bow thruster |
1.800 hp |
|
Cargo capacity |
Cars: 6.237 Trucks: 109 |
|
Tank capacities |
Fuel oil: 3.010 m³ Fresh water: 659 m³ Water ballast: 8.445 m³ |
|
Lifting equipment |
2x Cranes - SWL 0,5 t 4x Cranes - SWL 4,0 t 1x Elevator 375 kg |
|
Crew |
23 |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. |
|
Operator |
K-Line / Kawasaki Kisen Kaisha Line |
|
Registered owner |
Kawasaki Kisen Kaisha Ltd. |
|
Latest data adjustment |
19 March 2018 |
