Westerschelde 06 August 2017 |
|
Name |

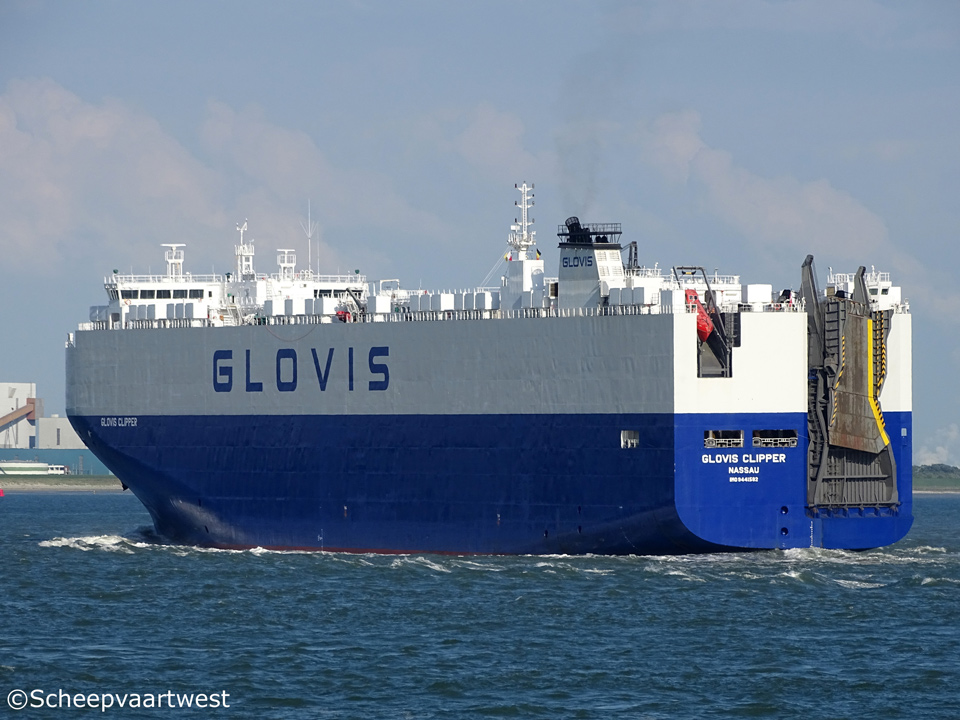

GLOVIS CLIPPER |
|
Type |
Roll-On/Roll-Off vehicles carrier PCTC - Pure Car and truck Carrier |
|
IMO-number |
9441582 |
|
Call sign |
C6ZE8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
58.767 |
|
DWT |
Summer: 20.434 t |
|
NT |
19.972 |
|
Length |
199,99 m overall 191,00 m between perpendiculars |
|
Breadth |
32,29 m extreme |
|
Draught |
Summer: 10,01 m |
|
Air draft |
46,20 m |
|
Depth |
35,00 m |
|
Speed |
21,5 knots |
|
Built |
2012 |
|
Keel laid |
06/08/2011 |
|
Launch date |
29/10/2011 |
|
Date of completion |
14/02/2012 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
8041 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x HHI/MAN 7S60MC-C - 7 cylinder combustion engine 14.280 kW |
|
Propellers |
1x Fixed mono-block pitch propeller |
|
Boilers |
1x Auxiliary boiler, oil/gas fired 1x Auxiliary boiler, exhaust gas heated Builder: Kangrim Heavy Industries Co.,Ltd. |
|
Generators |
3x Hyundai/Himsen 6H25/33 diesel generatorsets Builder: Hyundai Engine & Machinery Co. Ltd. |
|
Emergency generator |
1x Doosan AD126TIS diesel generatorset Builder: Doosan Infracore Co., Ltd. |
|
Ro-Ro ramps |
1x Starboard 1x Starboard aft |
|
Number of cars |
6.500 |
|
Decks area |
57.600 m² |
|
Tank capacities |
Ballast: 8.906,1 m³ |
|
Anchor equipment |
Length: 687,50 m Diameter: 81 mm |
|
Crew size |
24 |
|
Commercial manager |
Ray Car Carriers Ltd. 33-37, Athol Street Douglas, Isle of Man IM1 1LB |
|
ISM manager |
Stamco Ship Management Co. Ltd. 21 Akti Miaouli Piraeus 185 35 Greece |
|
Registered owner |
Clipper Maritime Limited c/o Ray Car Carriers Ltd. 33-37, Athol Street Douglas, Isle of Man IM1 1LB |
|
Latest data adjustment |
26 April 2025 |
