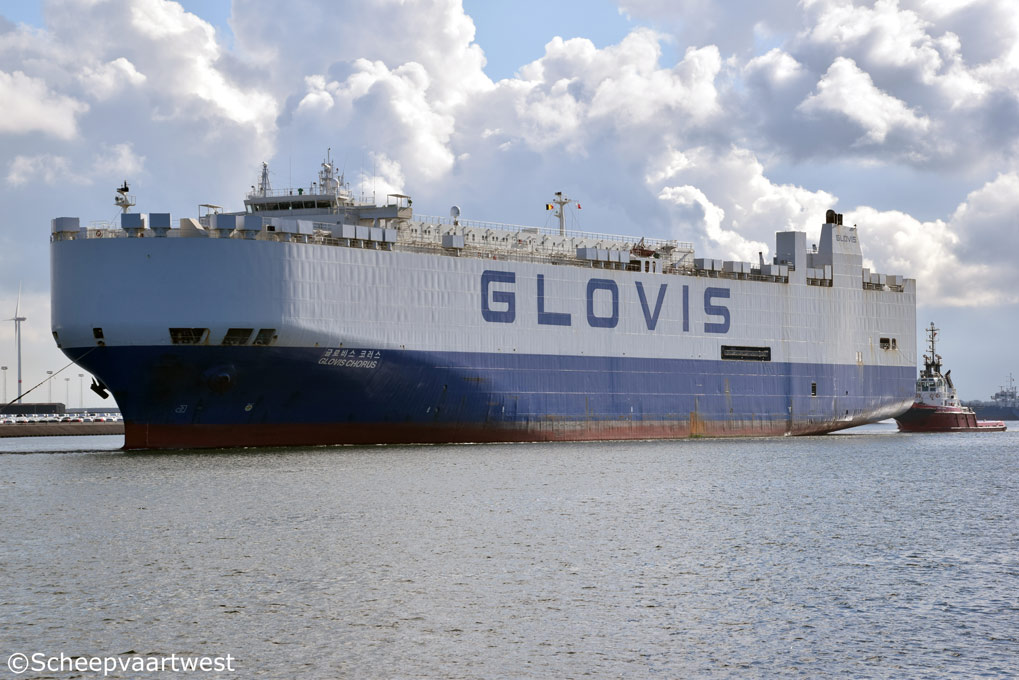

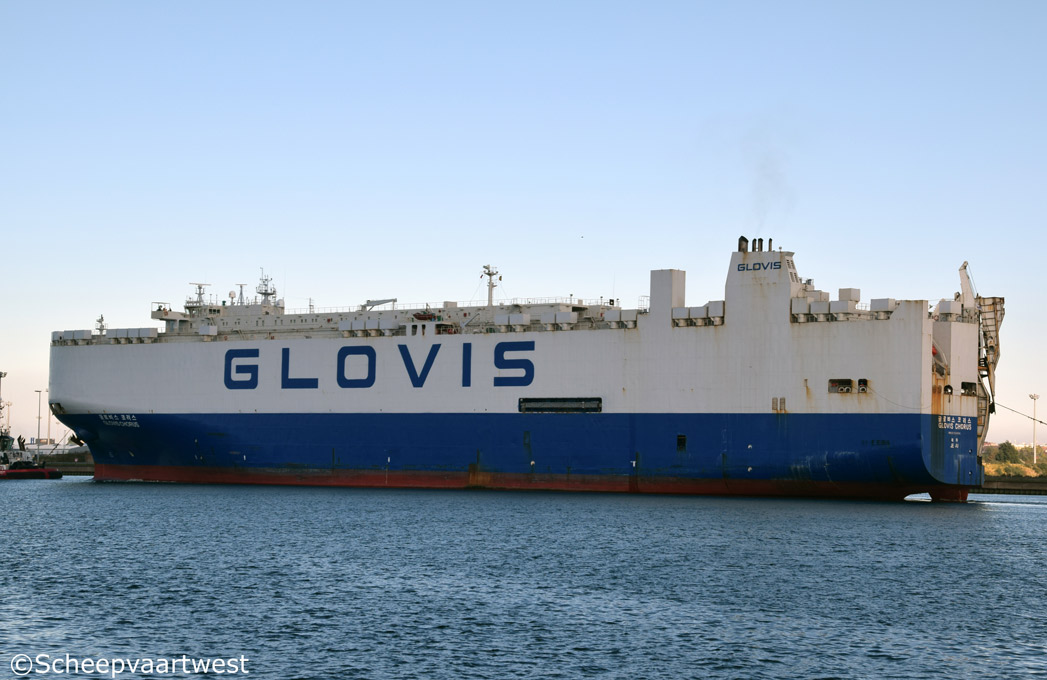

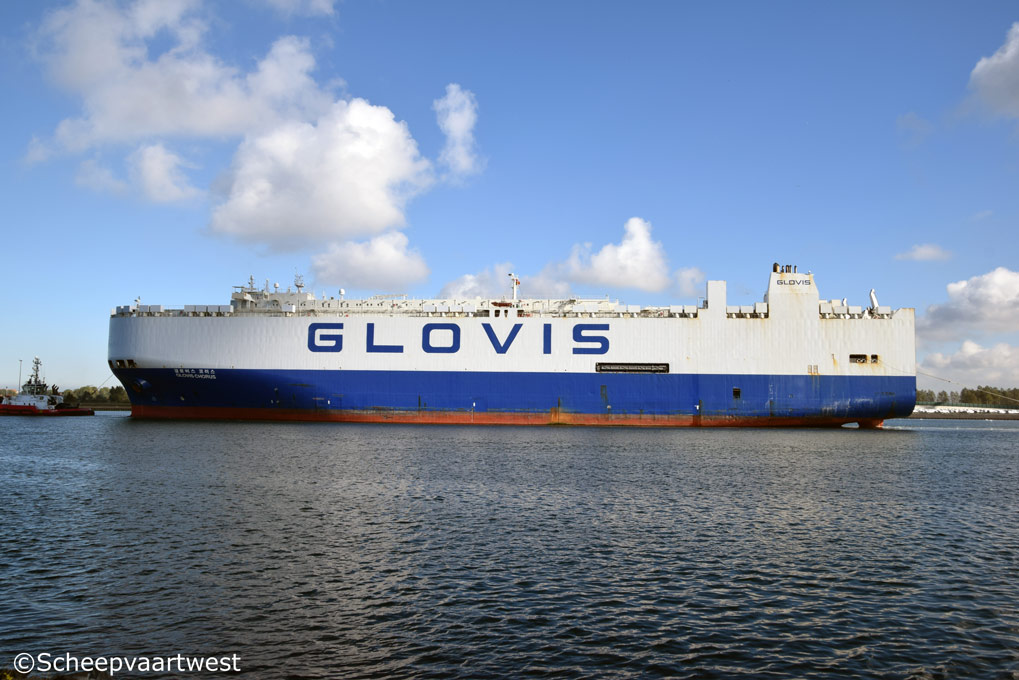

Zeebrugge 22 October 2016 |
 |
 |
 |
||

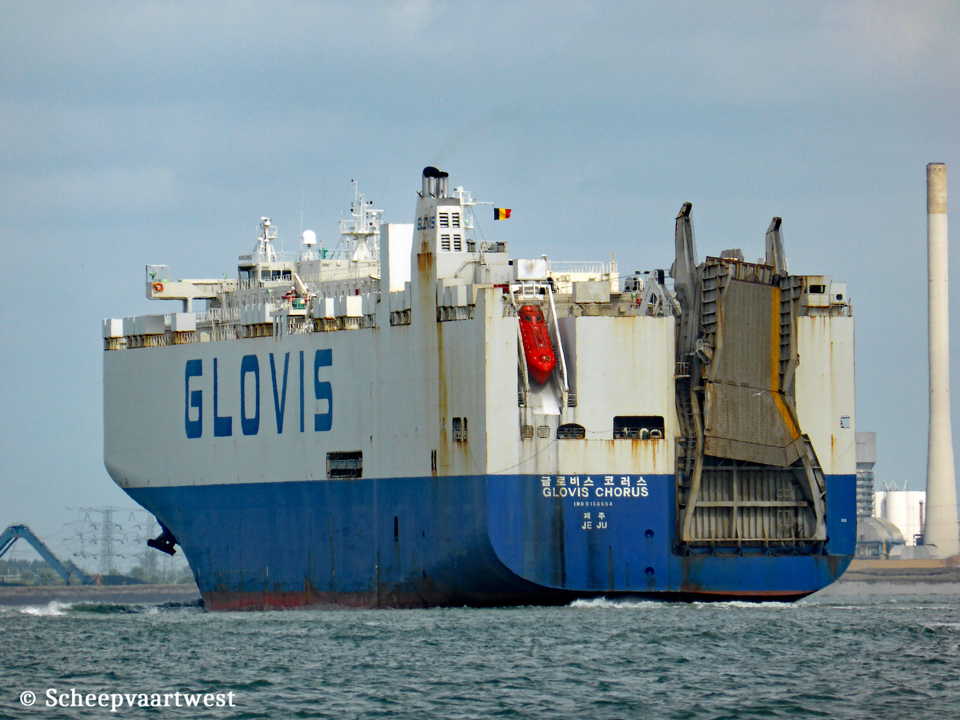

| Zeebrugge 22/10/16 | Zeebrugge 22/10/16 | Westerschelde 18/06/15 | ||
|
Name |
GLOVIS CHORUS |
|
Korean name |
글로비스 코러스 |
|
Previous names |
1997 - 02/2015 Asian Chorus |
|
Type |
Roll-On/Roll-Off car carrier Pure car and truck carrier |
|
IMO-number |
9158604 |
|
Call sign |
D7OR |
|
Flag |
Korea |
|
Port of registry |
Je Ju |
|
GT |
55.729 |
|
DWT |
21.505 t |
|
NT |
21.868 |
|
Light ship |
16.410 t |
|
Length |
199,98 m overall |
|
Breadth |
32,26 m registered |
|
Draught |
Summer: 10,02 m |
|
Reg. dimensions L x B x D |
192,89 x 32,26 x 19,42 m |
|
Rule dimensions L x B x D |
189,20 x 32,26 x 32,09 m |
|
Keel to mast end |
45,90 m |
|
Freeboard |
3.969 mm |
|
Depth |
19,42 m registered |
|
Speed |
20,8 knots |
|
Built |
1997 |
|
Keel laid |
02/06/1997 |
|
Launch date |
12/09/1997 |
|
Date of completion |
08/11/1997 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
H-1065 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight bulkheads |
4 |
|
Main engine |
1x MAN-B&W 7S60MC - 2 stroke single acting 7 cylinder 600 x 2.292 mm combustion engine 14.313 kW / 19.461 hp at 105,0 rpm Built: 06/1997 Builder: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary water tube boiler - 7,0 kg/cm² Heating surface: 24 m² Built: 06.1997 Builder: Kang Rim Ind. Co., Ltd., Busan - South Korea |
|
Generators |
3x Main diesel generatorsets 1.475 kVA - 450 Volt |
|
Car capacity (RT43) |
6.246 1 RT43 unit = 7,38975 m² |
|
Hoist able decks |
4 |
|
Ro-Ro dimensions (Max.) |
Height: 6,90 m Width: 12,00 m Ramp weight capacity: 150 t |
|
Tank capacities |
Fuel oil: 2.760,8 m³ Fresh water: 240,1 m³ Water ballast: 7.082,3 m³ |
|
Crew |
23 |
|
Manager |
Hyundai Glovis Co., Ltd. 512, Yeongdong-daero, Gangnam-gu Seoul, 06172 South Korea |
|
Technical manager |
G-Marine Service Co., Ltd. 331, Jungang-daero, Dong-gu Busan, 48792 South Korea |
|
Registered owner |
Hyundai Glovis Co., Ltd. 512, Yeongdong-daero, Gangnam-gu Seoul, 06172 South Korea |
|
Previous names & owners |
1997 - 02/2015 Asian Chorus - Chorus Maritime S.A. |
|
Latest data adjustment |
25 August 2024 |
