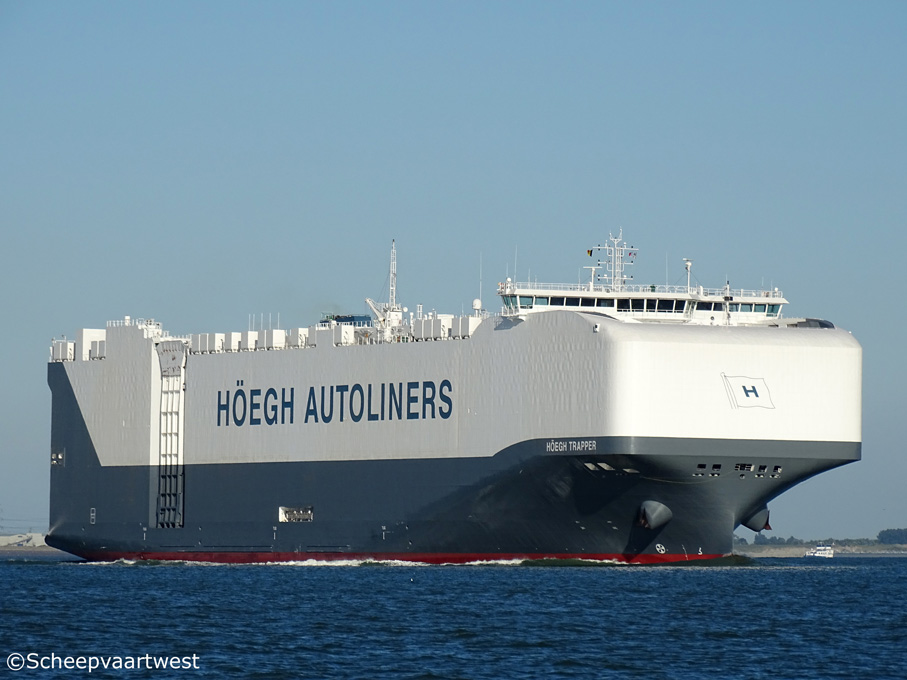

Höegh Trapper 01

Westerschelde 06 August 2016



Name

HÖEGH TRAPPER

Type

Roll-On/Roll-Off carrier - Vehicles carrier

PCTC - Pure car and truck carriers

IMO-number

9706918

Call sign

LAUM7

Flag

Norway

Port of registry

Oslo

GT

76.420 t

DWT

Summer: 20.766 t

NT

23.242 t

Length

199,89 m overall

193,08 m between perpendiculars

Breadth

40,74 m extreme

36,50 m moulded

Draught

10,31 m

Air draft

46,50 m

Depth

14,40 m

Speed

19,0 knots

Built

2016

Keel laid

25.06.2014

Launch date

29.12.2015

Date of completion

06.06.2016

Builder

Xiamen Shipbuilding Industries Co. Ltd.
Iamen
China

Yard number

462D

Hull material

Steel

Hull type

Double bottom

Single side

Main engine

1x MAN-B&W 6S60ME-C - 2 stroke 6 cylinder diesel engine 11.735 kW

Builder: MAN Diesel & Turbo, branch of MAN Diesel & Turbo SE - Germany

Propellers

1x Mono-block propeller

Boilers

1x Auxiliary boiler, oil fired

1x Auxiliary boiler, oil/gas fired (Exhaust)

Manufacturer: Alfa Laval Aalborg

Generators

2x MAN 9L21/31 main diesel generatorsets 1.850 kW

1x MAN 5L21/31 main diesel generatorset 950 kW

Manufacturer: CSSC marine power Co., Ltd.

Emergency generator

1x Cummins QSM11 diesel generatorset

Bow thruster

1x 1.800 kW

Number of decks

14

Hoistable decks

5

Car capacity

8.500

Tank capacities

Ballast: 6.907 m³

Anchor equipment

Length: 715,00 m

Diameter: 87 mm

Crew

23

Manager

Höegh Wallem Ship Management Pte. Ltd.

Operator

Höegh Autoliners

Registered owner

Ocy Albany AS

Latest data adjustment

03 October 2016
