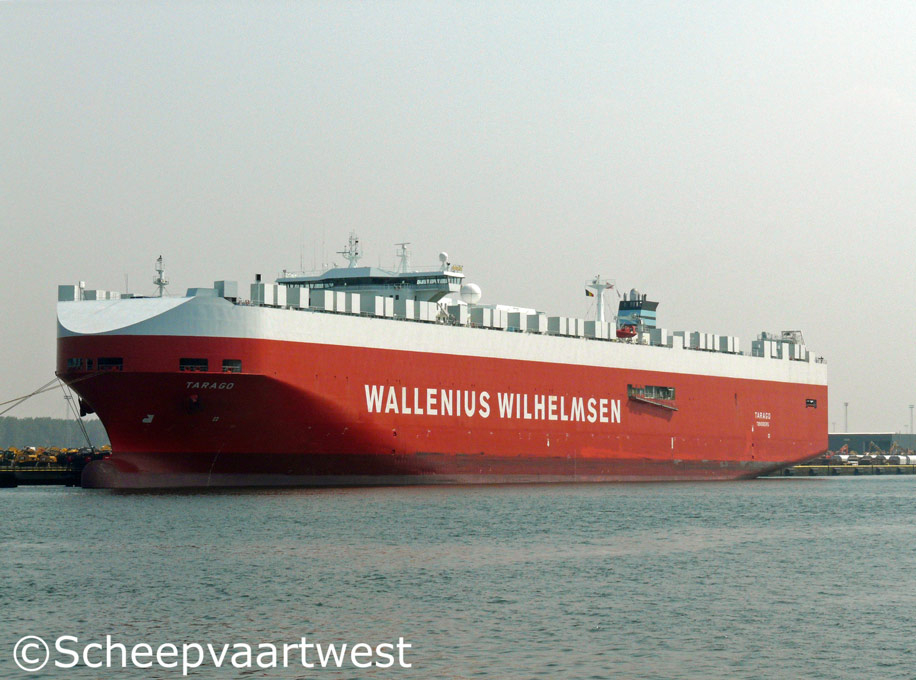

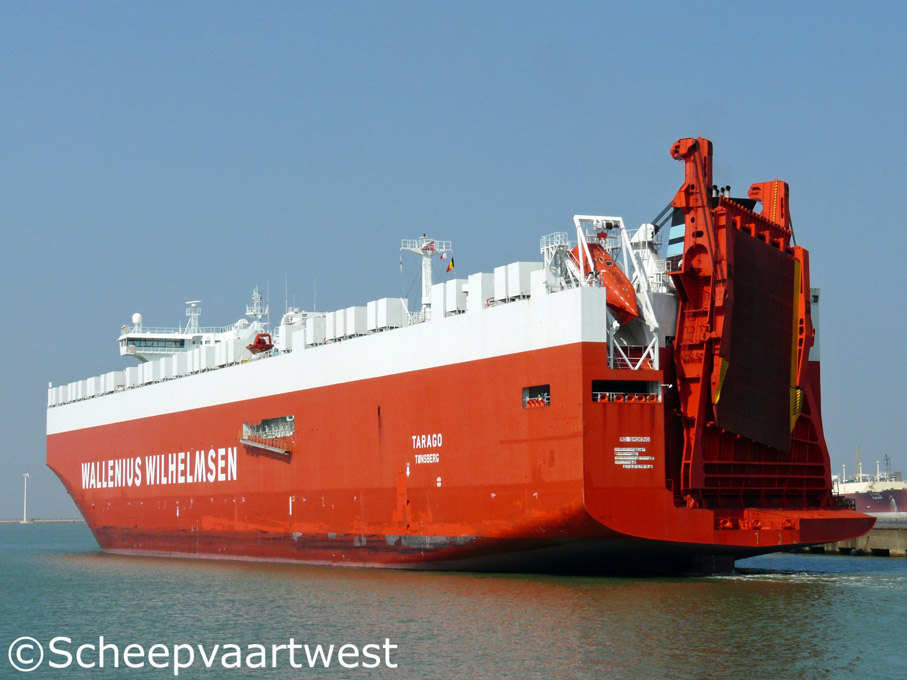

| Zeebrigge 18 April 2011 |
 |
 |
 |
||

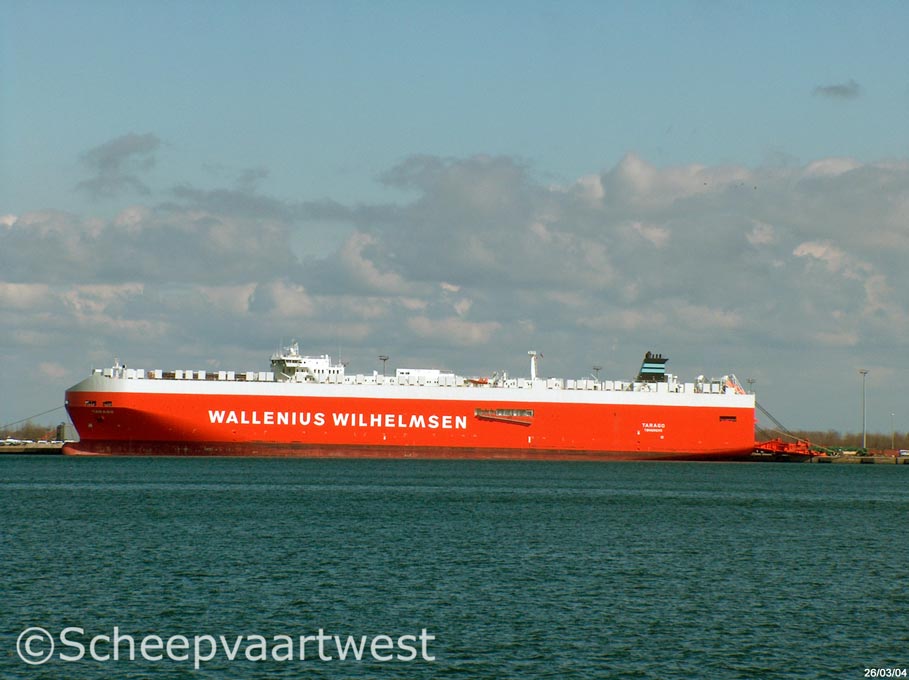

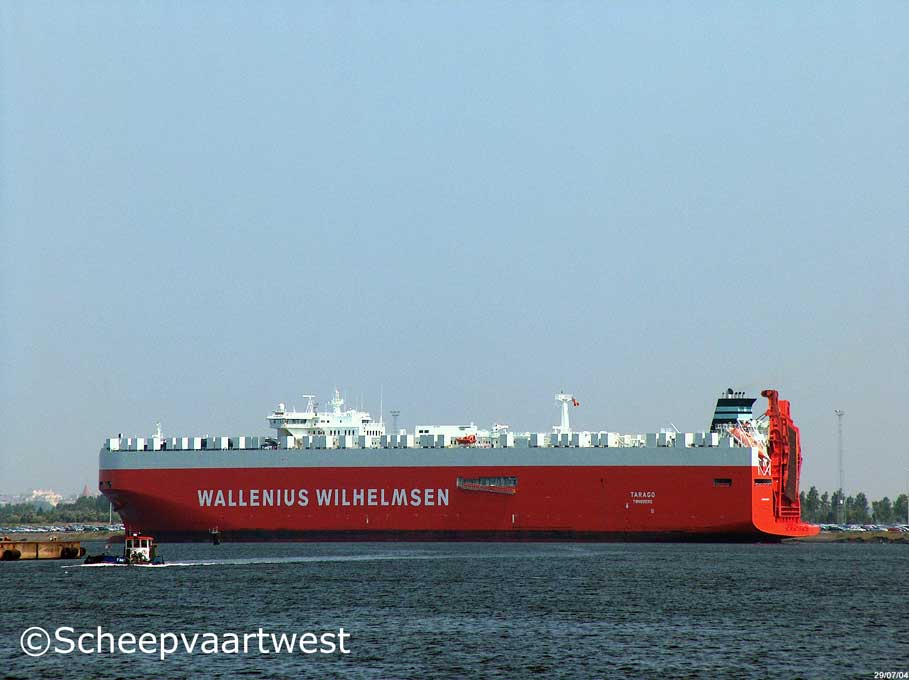

| Zeebrigge 18/04/11 | Zeebrigge 28/07/04 | Zeebrigge 26/03/04 |
|
Name |
TARAGO |
|
Type |
Roll-On/Roll-Off Vehicles Carrier |
|
IMO-number |
9191321 |
|
Call sign |
LAPN5 |
|
Flag |
Norway |
|
Port of registry |
Tønsberg |
|
GT |
67.140 t |
|
DWT |
38.486 t at maximum draft |
|
NT |
23.674 t |
|
Number of 20ft continers |
1935 |
|
Length |
240,60 m overall |
|
Breadth |
32,26 m overall |
|
Draught |
Summer: 11,70 m |
|
Air draft |
46,00 m |
|
Freeboard |
20.750 mm |
|
Depth |
32,45 m to upperdeck |
|
Speed |
20,0 knots |
|
Built |
2000 |
|
Keel laid |
02.05.2000 |
|
Launch |
22.07.2000 |
|
Date of completion |
27.09.2000 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co. Ltd. |
|
Yard number |
4425 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x MAN B&W 8L70MC (MK5) marine diesel with constant pressure supercharging and maximum output of 28.480 bhp / 20.960 kW |
|
Propeller |
1x Fxed pitch propeller - 4 blades, diameter 7,40 m |
|
Generators |
5x MAN B&W Holeby 4-stroke diesel generatorsets units: |
|
Emergency generator |
1x Ssanyong-Commins diesel generatorset 200 kW at 1.800 rpm |
|
Bow thruster |
1.800 KW with about 26 t thrust |
|
Stern ramp |
Width: 12,0 m |
|
Number of decks |
8 of which 4 are hoistable |
|
Capacity deck area |
46.350 m² |
|
Capacity volume |
125.620 m² |
|
Capacity car units |
5.495 |
|
Ballast capacity |
15.000 m³ |
|
Basic complement |
22 |
|
Crew |
28 |
|
Manager |
Wilhelmsen Ship Management (Norway) AS |
|
Previous manager |
Barber Ship Management AS |
|
Operator |
WWL - Wilh. Wilhelmsen Lines Group |
|
Owner |
Wilhelmsen Lines AS |
|
Previous owner |
2000-2000 Wilhelmsen Lines Shipowning AS |
