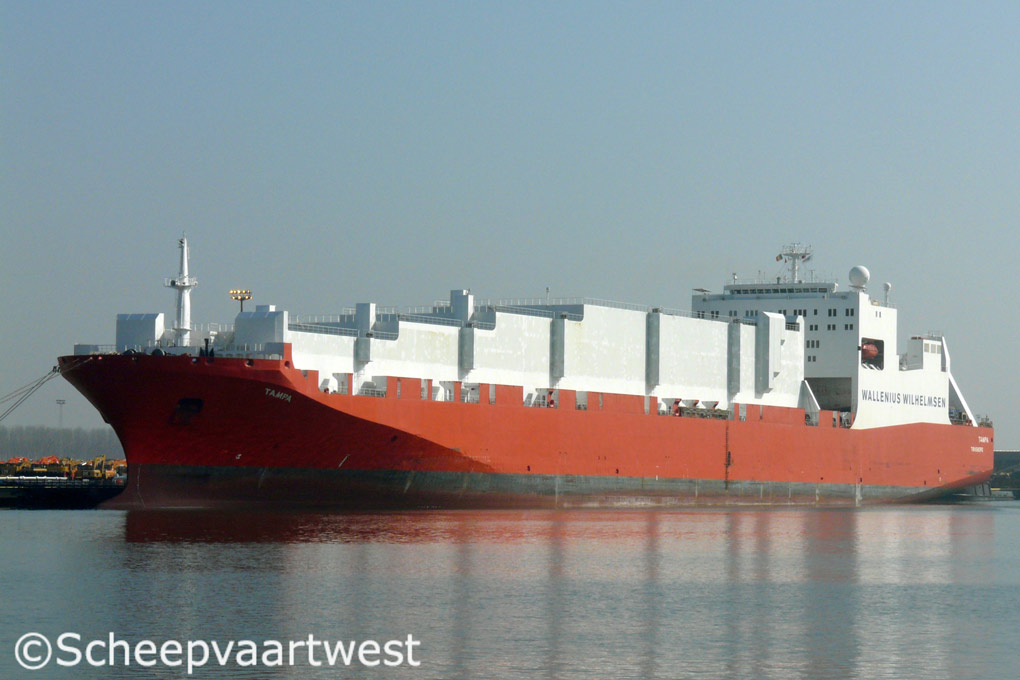

Tampa 03
Zeebrugge 15 March 2012

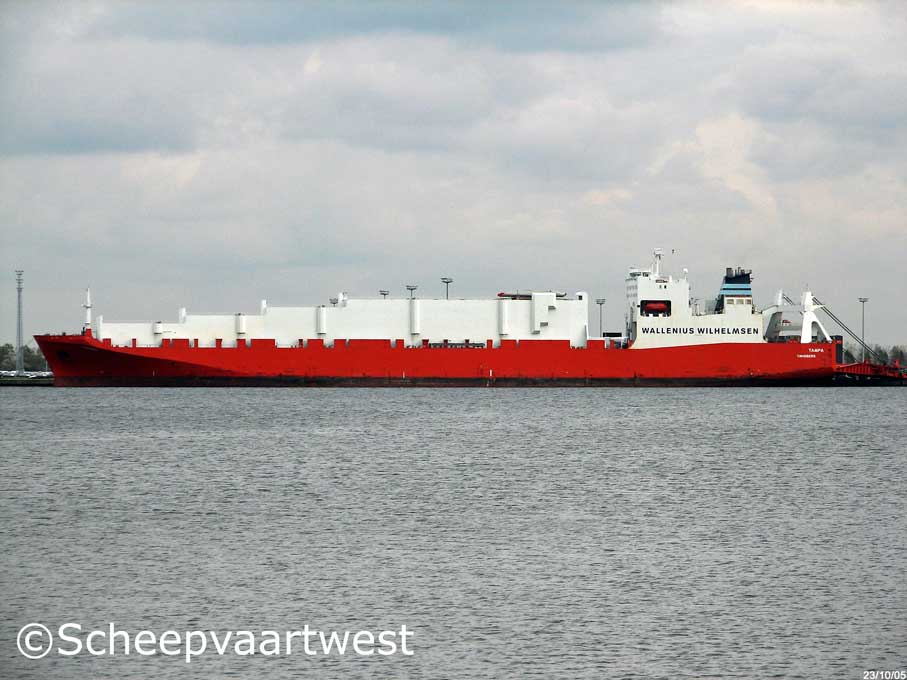

Tampa
Zeebrugge 23/10/05



Name

TAMPA

Previous name

1984-1989 Barber Tampa

Type

Vehicles Carrier
Con-Ro - Container and Roll-On/Roll-Off

IMO-number

8204951

Call sign

LMWO3

Flag

Norway

Port of registry

Tønsberg

GT

66.532 t

DWT

39.900 t at max. draft

NT

26.072 t

Number of 20ft containers

1.649

Length

262,30 m overall
246,26 m between perpendiculars

Breadth

32,26 m overall

Draught

Summer: 11,70 m

Air draft

59,43 m

Freeboard

11.250 mm

Depth

21,00 m to upper deck

Speed

21,0 knots

Built

1984

Launch date

10.10.1983

Date of completion

10.02.1984

Builder

Hyundai Heavy Industries Co. Ltd.
Ulsan
Republic of Korea

Yard number

248

Hull type

Single hull

Main engine

1x MAN Burmeister &Wain 8 L90GB with an output of 26.950 kW at 94,0 rpm

Propeller

1x Fixed right handed aerofoil propeller with 4 blades and dimension 7.800 mm.

Generators

3x Daihatsu type 8DS32 main diesel generatorsets each 2.060 kW
2x Daihatsu main diesel generatorsets with an output of 970 kW each

Builder: Daihatsu Diesel Mfg. Co. Ltd.

Emergency generator

1x Daihatsu diesel generatorset with output 260 kW

Bow thruster

2x Kamewa type 2800B/AS-CP, with output 1.910 kW

Number of decks

12 (of which 2 are hoistable)

Car capacity

4.577 cars or a combination of cars and 612 trucks

Stern ramp

Width 12,50 m

Capacity: 420 t

Basic complement of

25 persons

Bunker capacity

7.660 t

Lifting equipment

1x JSW-Hägglund G4030/3632 deck crane with a capacity of SWL max. 40 t

Manager

Wallenius Wilhelmsen Lines AS
Lysaker

Norway

Operator

WWL - Wilh. Wilhelmsen Lines Group

Owner

Wilhelmsen Lines Shipowning AS

Lysaker

Norway

Scrapped

03.08.13 Jiangyin - China
