Antwerpen 30 July 2014 |
 |
| Antwerpen 30/07/14 |
|
Name |

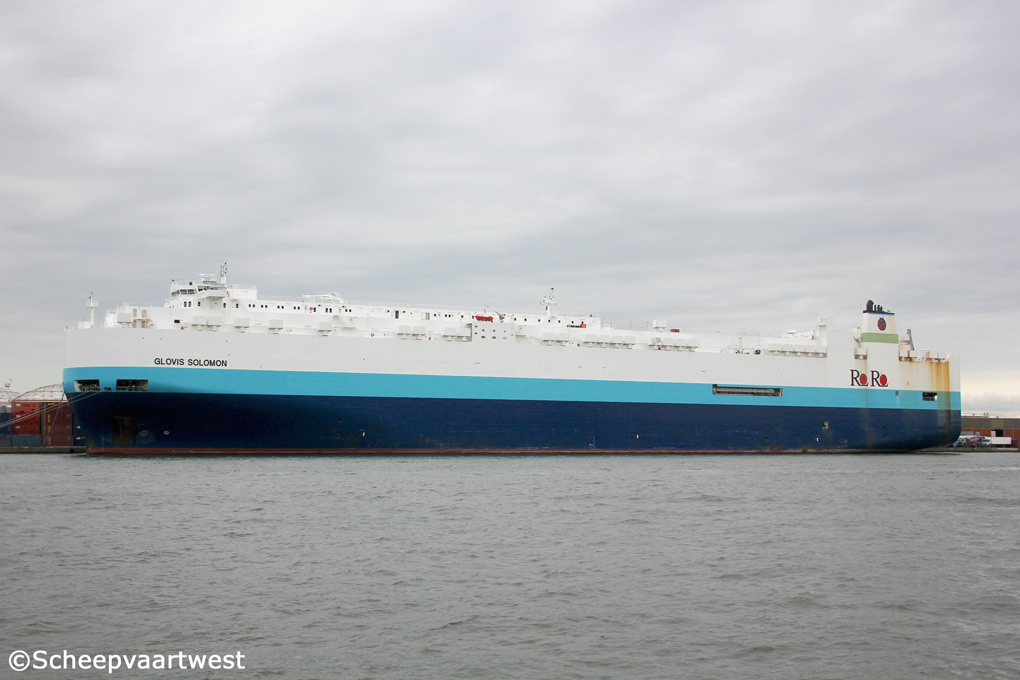

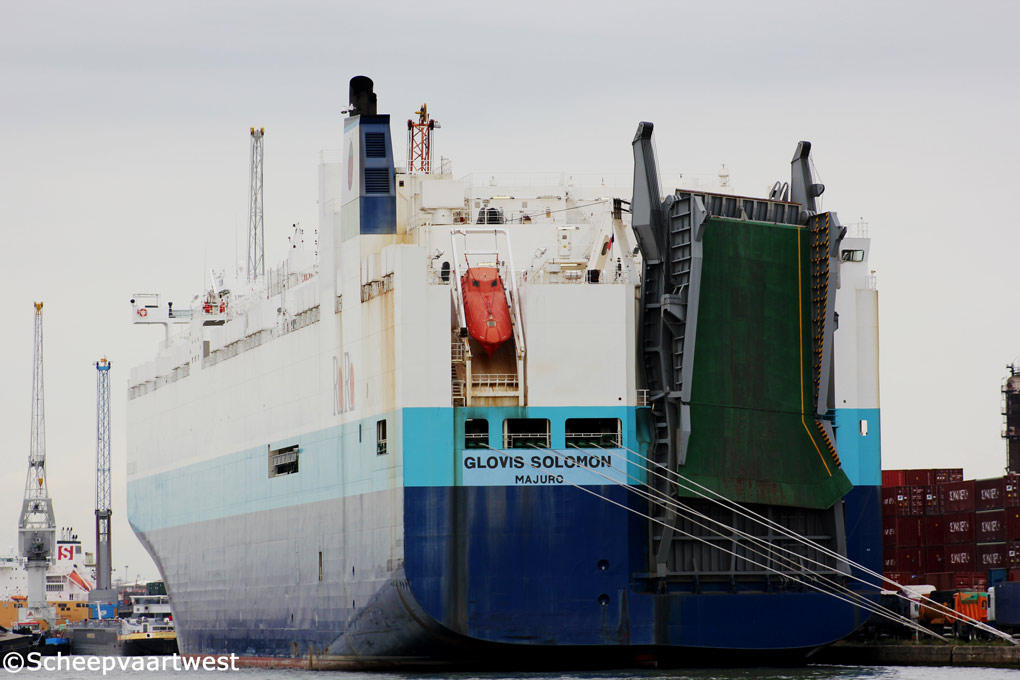

GLOVIS SOLOMON |
|
Previous names |
2001 - 07.2014 C Ladyburg |
|
Type |
Roll-On/Roll-Off carrier PCC - Pure Car Carrier |
|
IMO-number |
9445409 |
|
Call sign |
V7HP9 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
72.635 t |
|
DWT |
26.988 t |
|
NT |
26.226 t |
|
Length |
232,39 m overall 222,40 m between perpendiculars |
|
Breadth |
32,26 m |
|
Draught |
10,01 m |
|
Reg. Dimensions L x B x D |
225,52 x 32,26 x 20,11 m |
|
Rule Dimensions L x B x D |
222,40 x 32,26 x 14,30 m |
|
Freeboard |
Summer: 3.020 mm |
|
Depth |
32,64 m |
|
Speed |
20,0 knots |
|
Built |
2011 |
|
Keel laid |
18.06.2010 |
|
Launch date |
08.10.2010 |
|
Date of completion |
11.07.2011 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. |
|
Yard number |
S400 |
|
Hull material |
Steel |
|
Main engine |
1x Wärtsilä/Hyundai 7RT-flex82T - 2 stroke single acting 8 cylinder 600 x 2.400 mm diesel engine -19.040 kW at 105,0 rpm Built: 02.2010 Builder: Hyundai Heavy Ind. Engine & Machinery, Ulsan - South Korea |
|
Propellers |
1x Fixes pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas heated 1x Auxiliary boiler, oil/gas fired Builder: Kangrim Heavy Industries Co.,Ltd., Nan Jing - South Korea Built: 12.2009 |
|
Generators |
3x 7H21/32 diesel generatorsets Builder: Hyundai Heavy Industries Co., Ltd. |
|
Car capacity |
8.100 |
|
Tank capacities |
Fuel oil: 4.170,7 m³ fresh water: 656,2 m³ Water ballast: 12.516,1 m³ |
|
Anchor equipment |
Length: 687,5 m Diameter: 87 mm |
|
Manager |
Haeyoung Maritime Services Co., Ltd. |
|
Technical manager |
Haeyoung Maritime Services Co., Ltd. |
|
Owner |
Hyundai Glovis |
|
Registered owner |
GL SHV1 Shipping Inc. |
|
Latest data adjustment |
25 December 2014 |
