Zeebrugge 01 June 2014 |
|
Name |

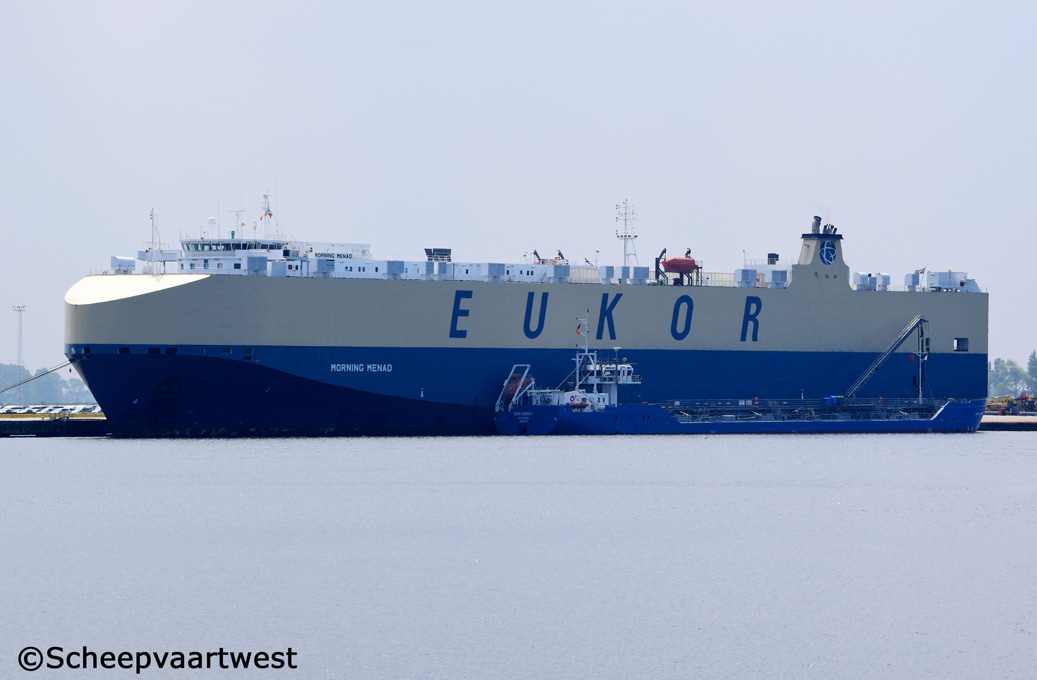

MORNING MENAD |
|
Type |
Roll-ON / Roll-Off vessel / Vehicle carrier PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9318515 |
|
Call sign |
C6WP2 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
41.192 t registered |
|
DWT |
12.105 t |
|
NT |
22.392 t registered |
|
Length |
176,02 m overall |
|
Breadth |
31,10 m moulded |
|
Draught |
Summer: 8,77 m |
|
Moulded L x B x D |
165,00 x 31,10 x 14,50 m |
|
Registered L x B x D |
167,55 x 31,10 x 14,50 m |
|
Freeboard |
Summer: 5.766 mm |
|
Depth |
14,50 m moulded |
|
Built |
2007 |
|
Keel laid |
12.05.2007 |
|
Launch date |
15.09.2007 |
|
Date of completion |
13.12.2007 |
|
Builder |
Uljanik Brodogradiliste D.D. Flaciusova 1 Pula Croatia |
|
Yard number |
468 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 8 cylinder 500 x 2.000 mm diesel engine - 12.640 kW at 127,0 rpm Manufacturer: Uljanik Strojogradnja d.d. |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 547 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 1,10 bar Evaporation: 3,60 t/h Manufacturer: Saacke VKK Marine Boilers GmbH |
|
Generators |
4x generators total 4.710 kVA |
|
Car capacity |
4.750 |
|
Tank capacities |
Fuel oil: 3.252 m³ Fresh water: 214 m³ Water ballast: 3.900 m³ |
|
Crew |
24 |
|
Manager |
Excel Marine Co., Ltd. |
|
Operator |
EUKOR |
|
Registered owner |
Cardia Shipping (Panama) S.A. |
|
Latest data adjustment |
11 July 2014 |
